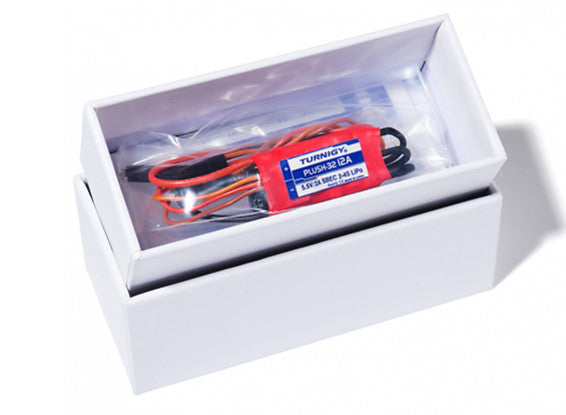

A new generation of Turnigy ESCs. The Turnigy Plush-32 ESC comes with a new 32-bit ARM controller to make it quicker and more responsive to your every input. As you would expect the Turnigy Plush-32 series comes with the same solid, high-quality we have seen with the Turnigy Plush ESCs.
Don’t forget to include a Plush-32 programming card to make life easy. No more listing to the beeps and guessing when to move your throttle the programming card changes settings with the press of a button and easy to read LED’s lets you know exactly how your ESC is programmed.
Features:
• 32-bit ARM MCU, small size, lightweight and fast response speed
• High resolution, smooth and sensitive throttle linearity, throttle signal loss protection is achieved
• Compared with other conventional ESCs, synchronous rectification, regenerative braking, and more energy saving
• Automatically detect an input signal
• Good compatibility with motors, suitable for most motors on the market
• PWM output frequency range is 8-24KHz. Different PWM frequencies can be set by programming card
• Regular throttle range is 900us~2400us
• Max RPM: 300,000 (2poles), 100,000 (6poles), 50,000 (12poles)
• Customized settings can be done with the program card (brake/non-brake)
• 60A and above supports adjustable temperature protection
• Supports setting the direction of motor rotation by programming card
Specs:
Amps: 12A
Cells: 2~4S
Voltage: 8.4~16.8V
BEC: 5.5V / 2.0A
BEC type: SBEC
Timing: Auto
Cutoff Voltage: 3.2V
Frequency: 48MHz
Weight: 11.5g
Size: 27x17x10mm
Sensored/Sensorless: Sensorless
