Turnigy™ MG-14W BB Waterproof Analog Micro Servo w/Metal Gears & Metal H/Sink Ca

9468000041-0

Servos

Turnigy

$21.99
In Stock All our products are stocked locally in New Zealand.
+
-
$21.99

To add this product to your wish list you must Sign In or Create an account

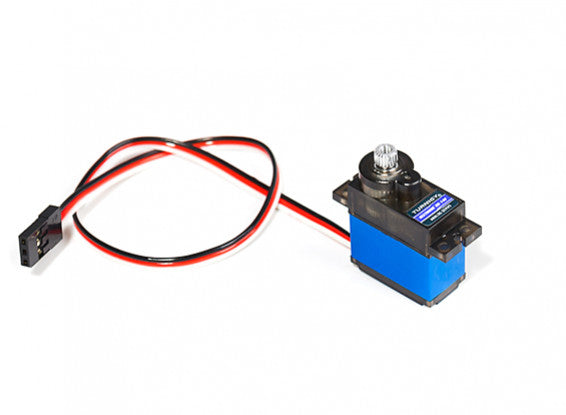

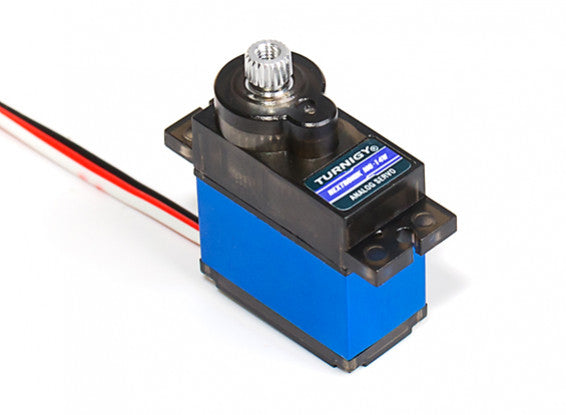

If you are looking for a small, powerful and tough servo then look no further than the Turnigy MG-14W. These Turnigy analog waterproof micro servos have a massive 3.8kg of torque, are fast and the metal mid case acts as a heatsink to keep the servo cool during extreme operations. The gears are made of a metal for strength and durability and the ballraced output shaft has 20 teeth for a good solid servo arm fixing. They are the perfect choice for small RC models whether aircraft, cars or boats where you need a strong and powerful metal geared servo.

Specs:
Type: Turnigy™ MG-14W BB Waterproof Analog Micro Servo w/Metal Gears & Metal H/Sink Case
Input Voltage: 4.8~6V
Torque: 2.8kg.cm @ 4.8V, 3.8kg.cm @ 6V
Speed: 0.11sec/60° @ 4.8V, 0.09sec/60° @ 6V
No Load Current: 300mA @ 4.8V, 400mA @ 6V
Stalled Current: 1000mA @ 4.8V, 1.2mA @ 6V
Idle Current: 60mA @ 4.8~6V
Max deflection: 120° ± 8°
Neutral Position: 1500µsec
Dead band Width: 7µsec
Pulse Width Range: 900~2100µsec
Gear Train: Metal
Output Spline: 20 teeth
Motor: Brushed
Ball bearing: Yes
Waterproof: Yes
Dimensions: 40x20x40mm
Weight: 14g
Servo Lead length: 190mm
Servo Connector: JR/Futaba

Included:
1 x Turnigy™ MG-14W BB Waterproof Analog Micro Servo w/Metal Gears & Metal H/Sink Case

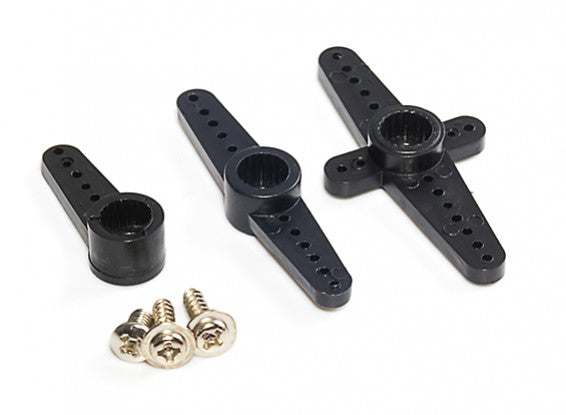

1 x Half servo arm
1 x Double servo arm
1 x Cross servo arm
1 x Set of mounting screws
1 x Servo arm screw


Product Id: 9468000041-0
