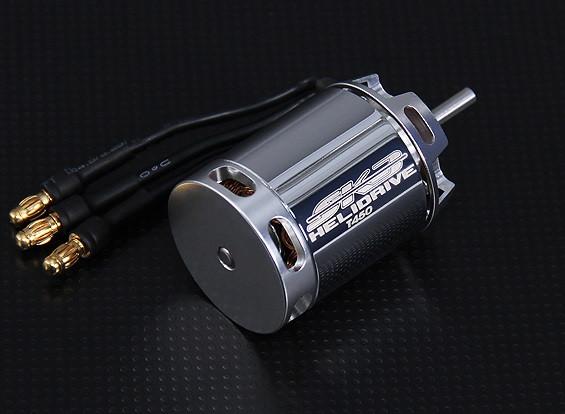

Turnigy HeliDrive SK3 Competition Series - 2839-1700kv (450 size heli)

9192000093

Motor

Turnigy

$71.99 $53.99
Save $18.00
In Stock All our products are stocked locally in New Zealand.
+
-
$53.99

To add this product to your wish list you must Sign In or Create an account

Turnigy SK3 Competition Series motors are the newest addition to our SK3 motor line-up offering the absolute best quality, performance and efficiency for your model on a competition level. Each and every SK3 Competition Series motor is thoroughly inspected and tested to ensure the high efficiency and top performance required for meeting the demands of competition flying.

Turnigy HeliDrive SK3 Competition Series motors are top quality outrunners designed specifically for use in today's high performance helicopter models.

We instructed the engineers to source the best quality magnets, bearings and materials available to them and develop a motor that would not only rival, but surpass the quality of many leading motor manufacturers on the market today.

The result is an efficient, high caliber motor using quality double shielded bearings, sintered Neodymium magnets and a string wound stator ensuring an accurate and consistent winding each and every time.

The Turnigy SK3 motors are suited to modelers who are seeking a top quality brushless motor without compromise.

*This motor is the ideal choice for a 6S power system in your 450 class helicopter!

Specs.
Turns: 10T
Voltage: 6S Lipoly
RPM/V: 1700kv
Motor Poles: 6
Internal resistance: 0.065 Ohm
Max Loading: 26A
Max Power: 550W
Shaft Diameter: 3.175mm
Shaft Length: 15.7mm
Screw Mounting Spacing: 16mm  (M3x4)
Weight: 79g
Motor Plug: 3.5mm Bullet Connector

MANUFACTURER Turnigy
KV (RPM/V) 1700
WEIGHT (G) 79
MAX CURRENT (A) 26
RESISTANCE (MH) -
MAX VOLTAGE (V) 6S Lipoly
SHAFT A (MM) -
LENGTH B (MM) -
DIAMETER C (MM) -
CAN LENGTH D (MM) -
TOTAL LENGTH E (MM) -


Product Id: 9192000093
