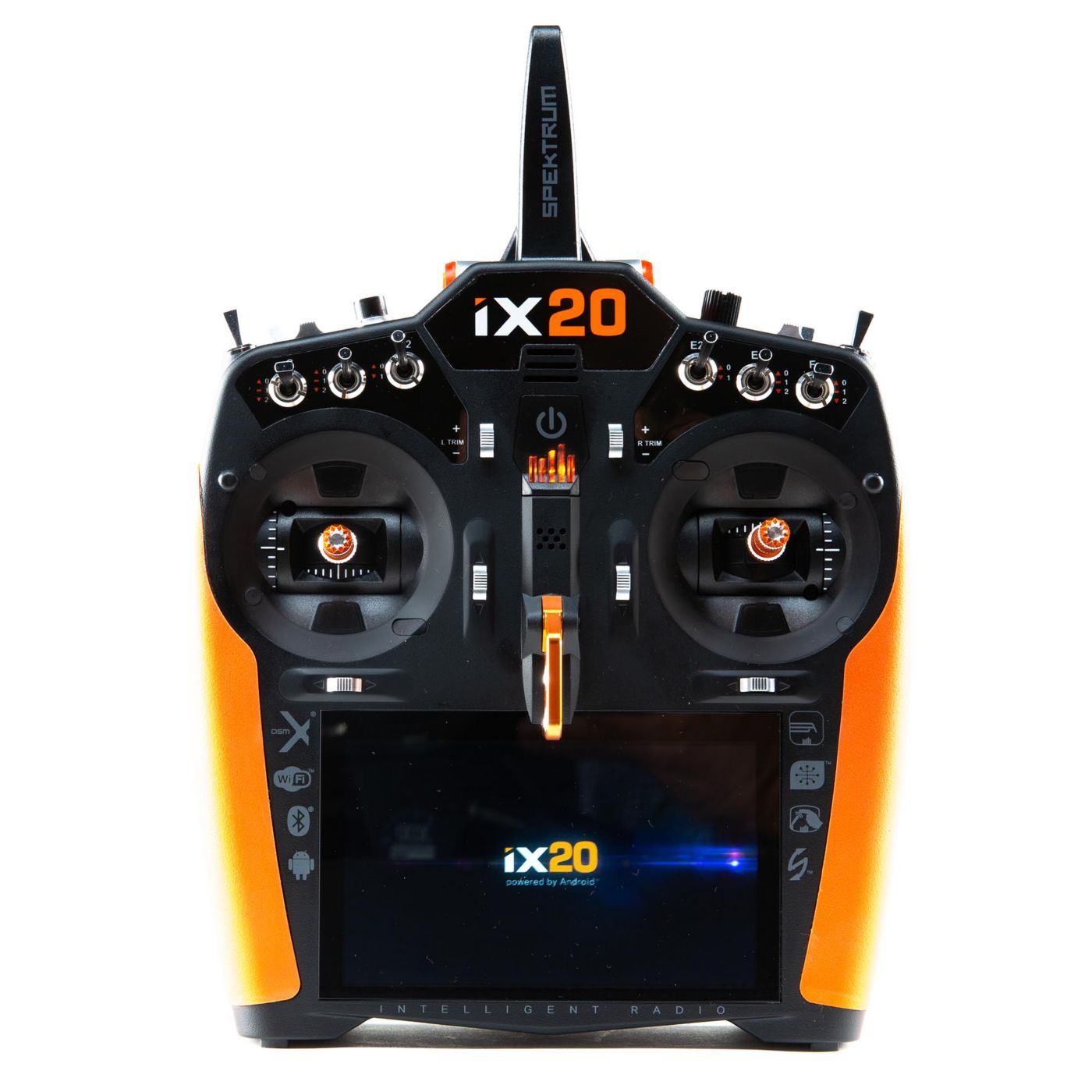

Spektrum iX20 20 Channel Transmitter Only

NEXT GENERATION INNOVATION

The Spektrum™ iX20 smart radio is our most powerful, feature-packed 20-channel air transmitter to date and host to a wide array of innovations and upgrades. It was designed to meet the present and future needs of pro pilots who want top-class features, easy programmability, and the capabilities required to fly high-performance aircraft.

The iX20 may be the most advanced intelligent transmitter available with an Android 7 touch-screen interface – but that doesn’t mean it's hard to use. The giant 5-inch, 720p color touch-display makes working with state-of-the-art technology comfortable and exciting. All-new Spektrum AirWare™ firmware has been streamlined and enhanced to deliver an overall faster experience. When you delve into the details, you'll see that the iX20 is much more than just our next intelligent transmitter.

EXPERTLY DESIGNED ERGONOMICS

Designed and ergonomically engineered by Mirco Pecorari from AircraftStudioDesign, the iX20 has been optimized to fit a wide range of pilot needs. Its Hall-effect sensing gimbals offer long-lasting precision with an ultra-smooth feel that's conveniently adjustable from the front of the transmitter. The result is a sense of style, comfort and functionality that perfectly complements the reliability, speed and precision of Spektrum™ DSMX® technology.

Key Ergonomic Features

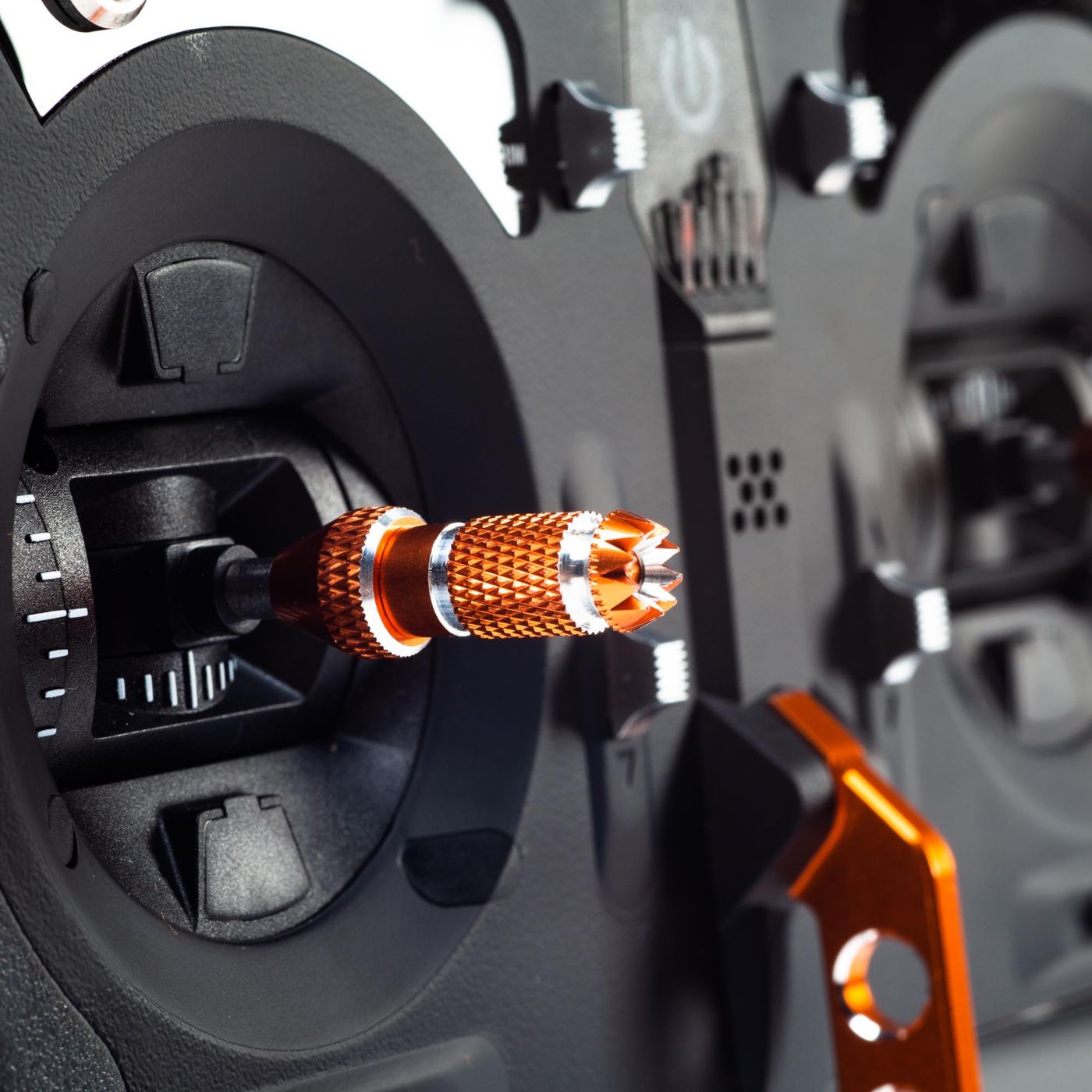

• Hall-effect sensor, quad-bearing gimbals
• Convenient front-access gimbal adjustment

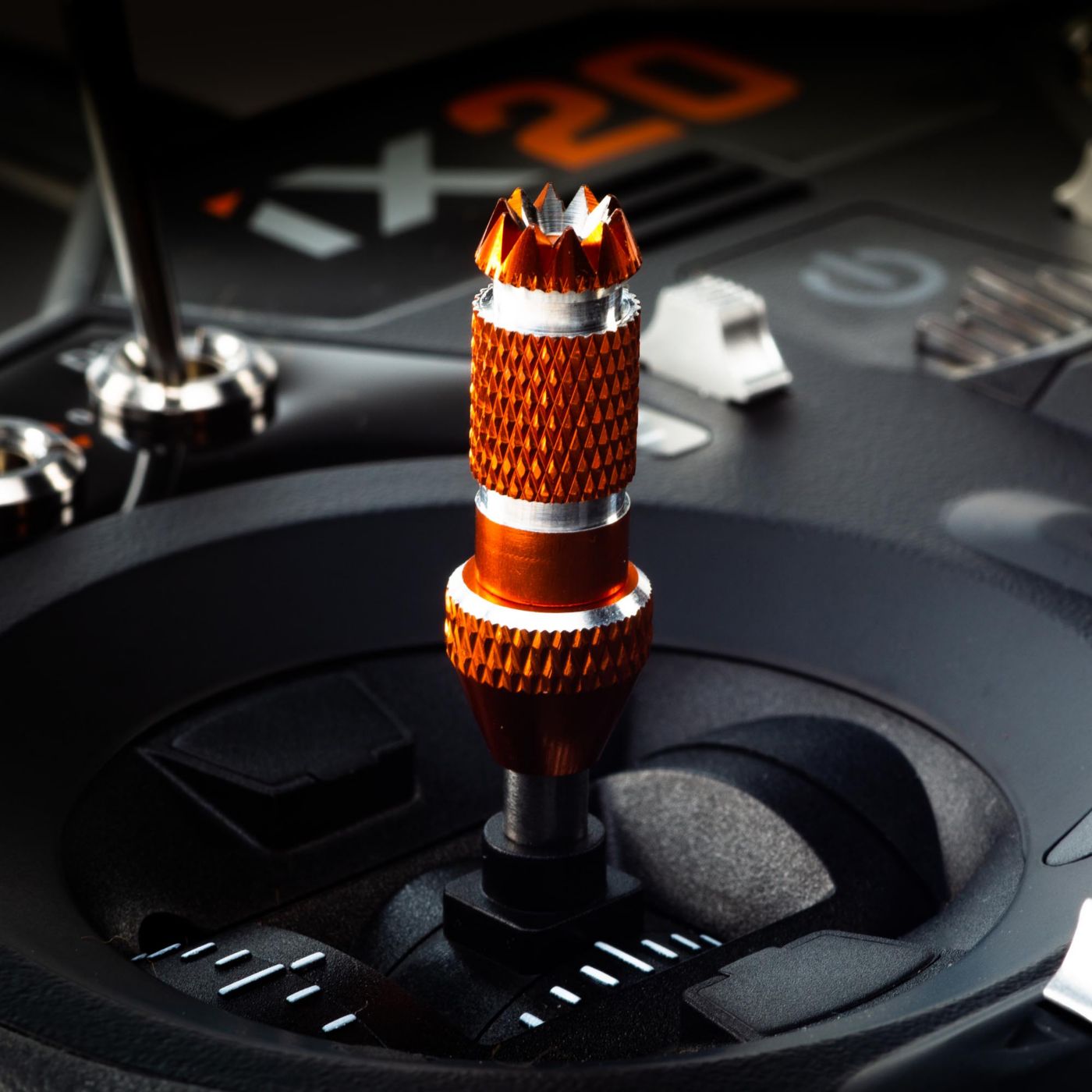

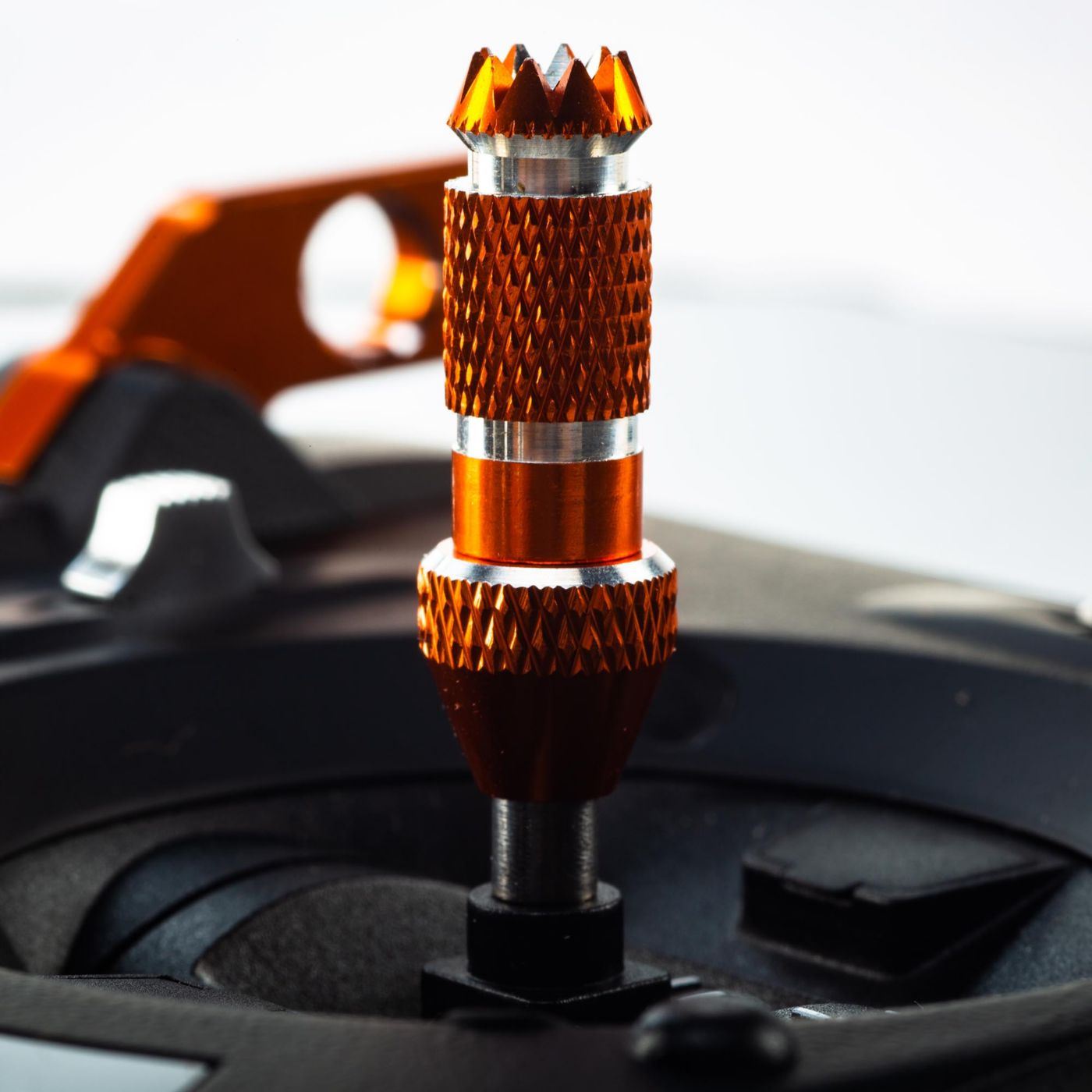

• Adjustable stick length and tension

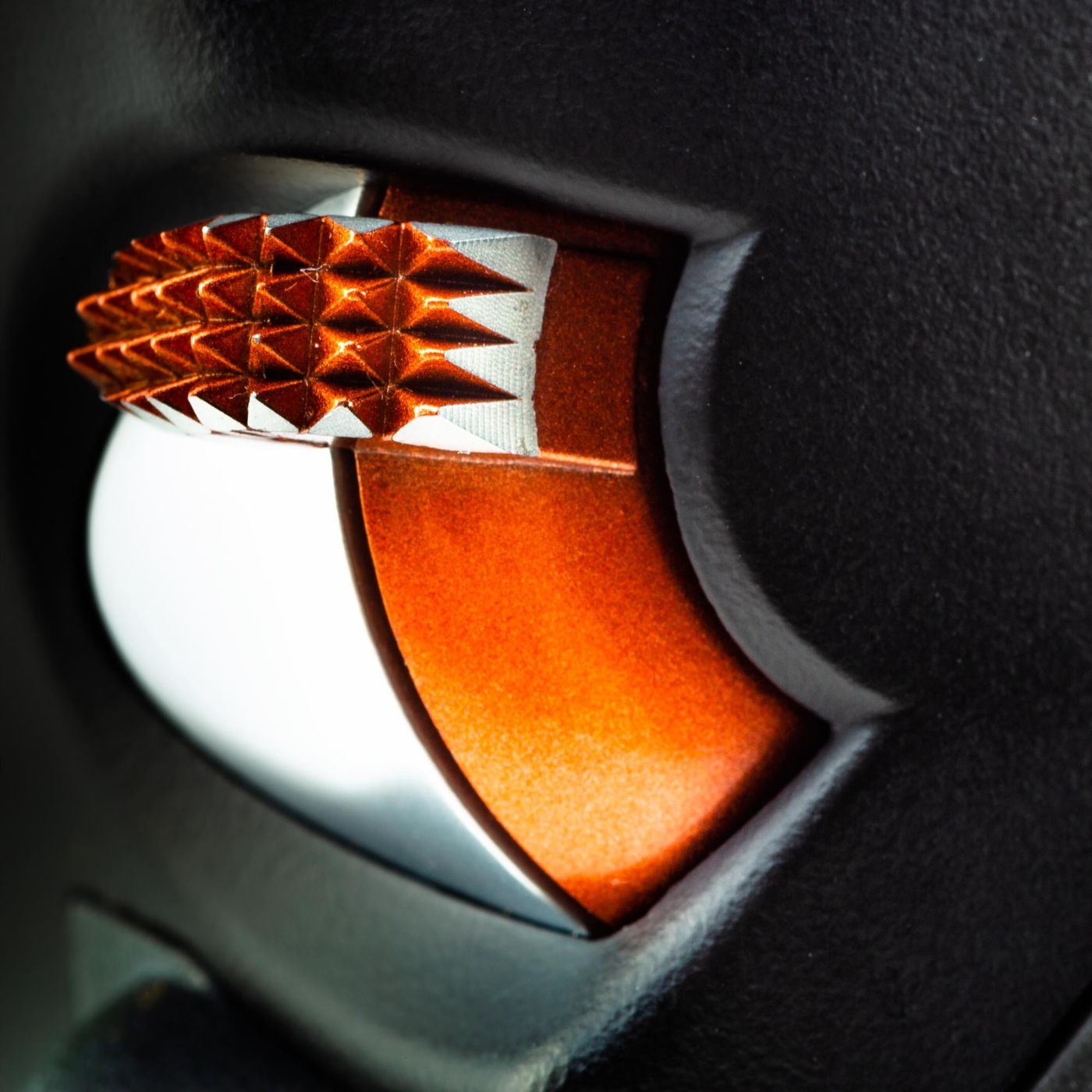

• Easy-grip slide levers with firm-center detent plus spring tension adjustment accessible from the front of the transmitter

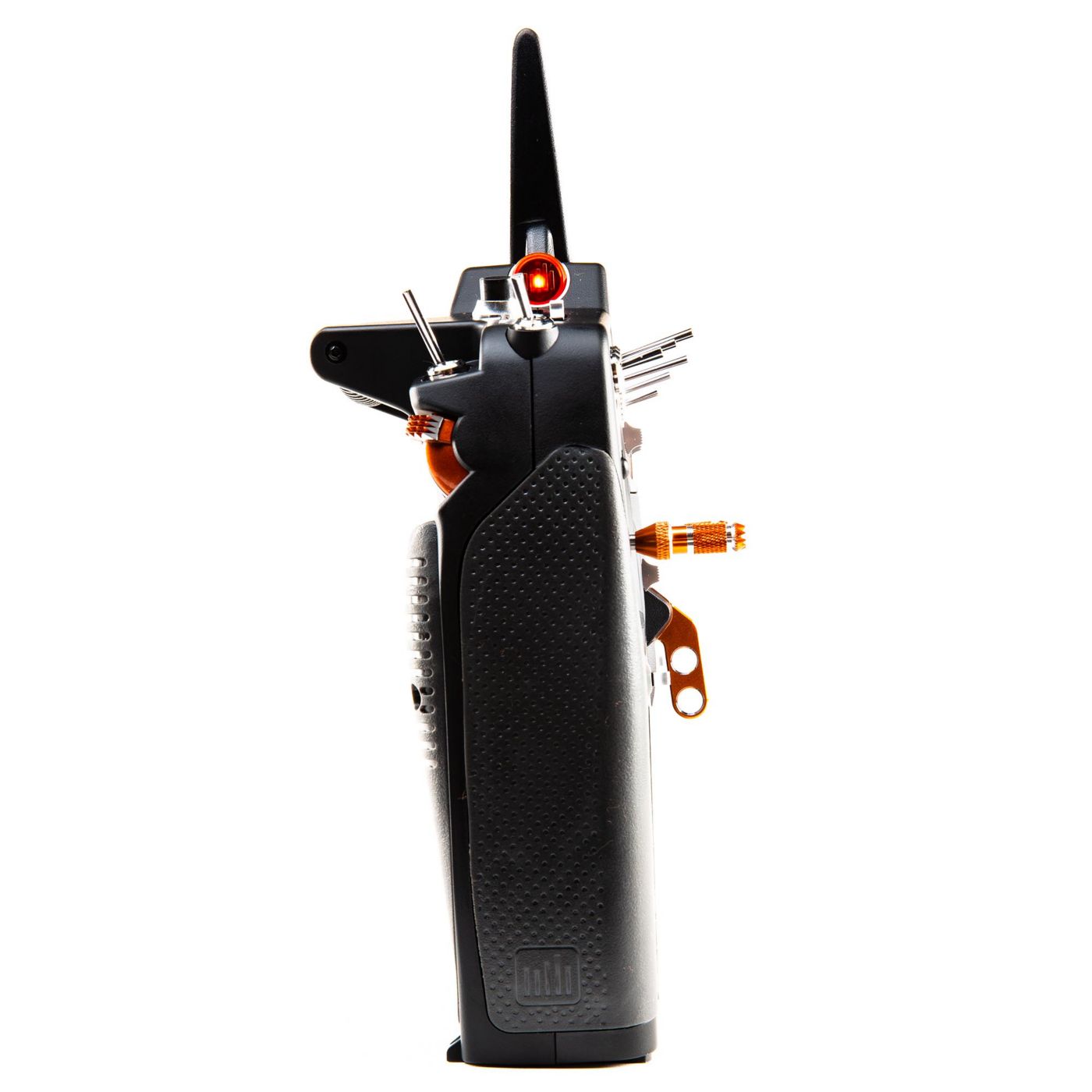

• Contoured, non-slip rubber grips
• User-adjustable mode configurations (1, 2, 3 or 4)
• User-adjustable switch assignments with touch sensing
• Pushbutton power switch with sleep mode

FASTER ANDROID-POWERED TOUCHSCREEN INTERFACE

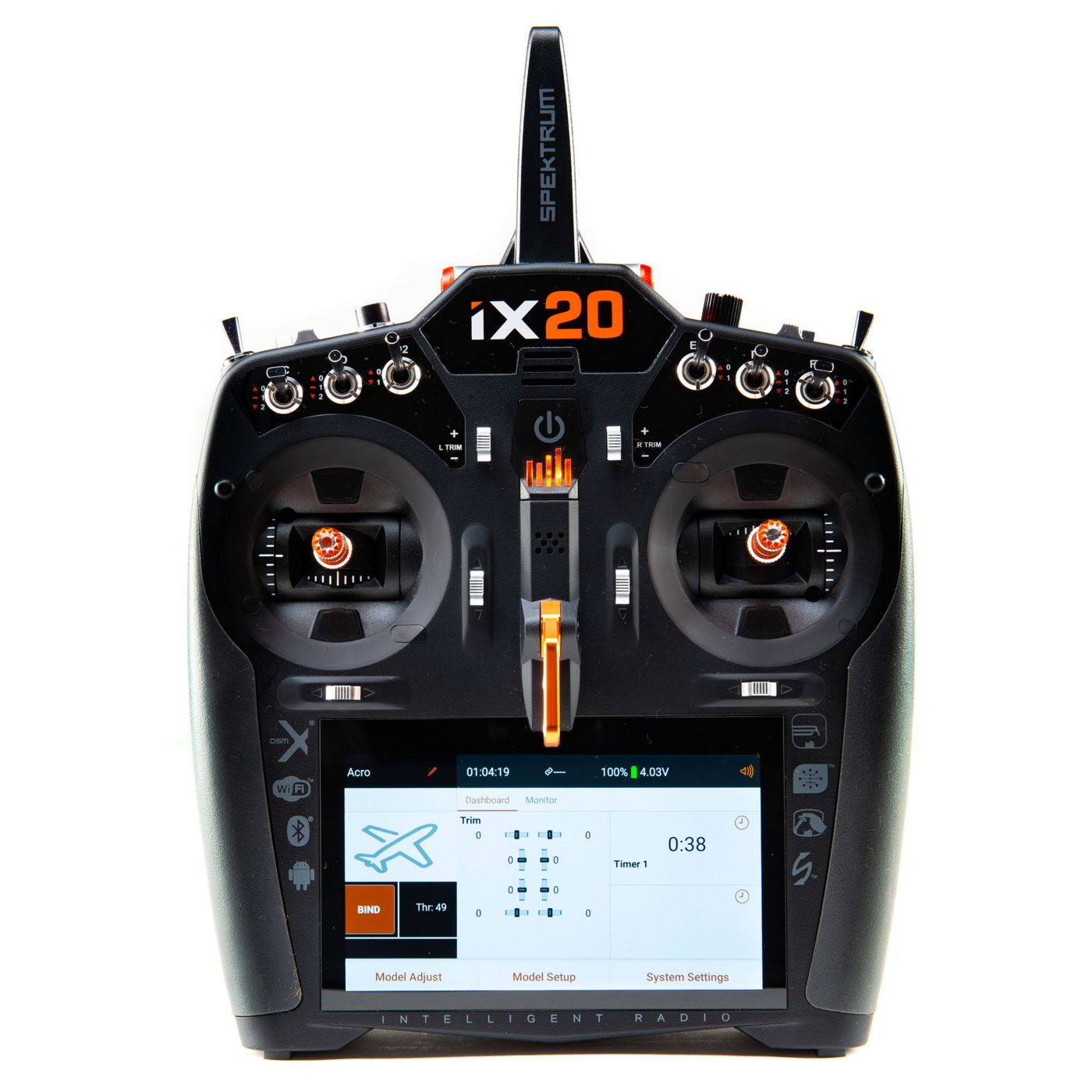

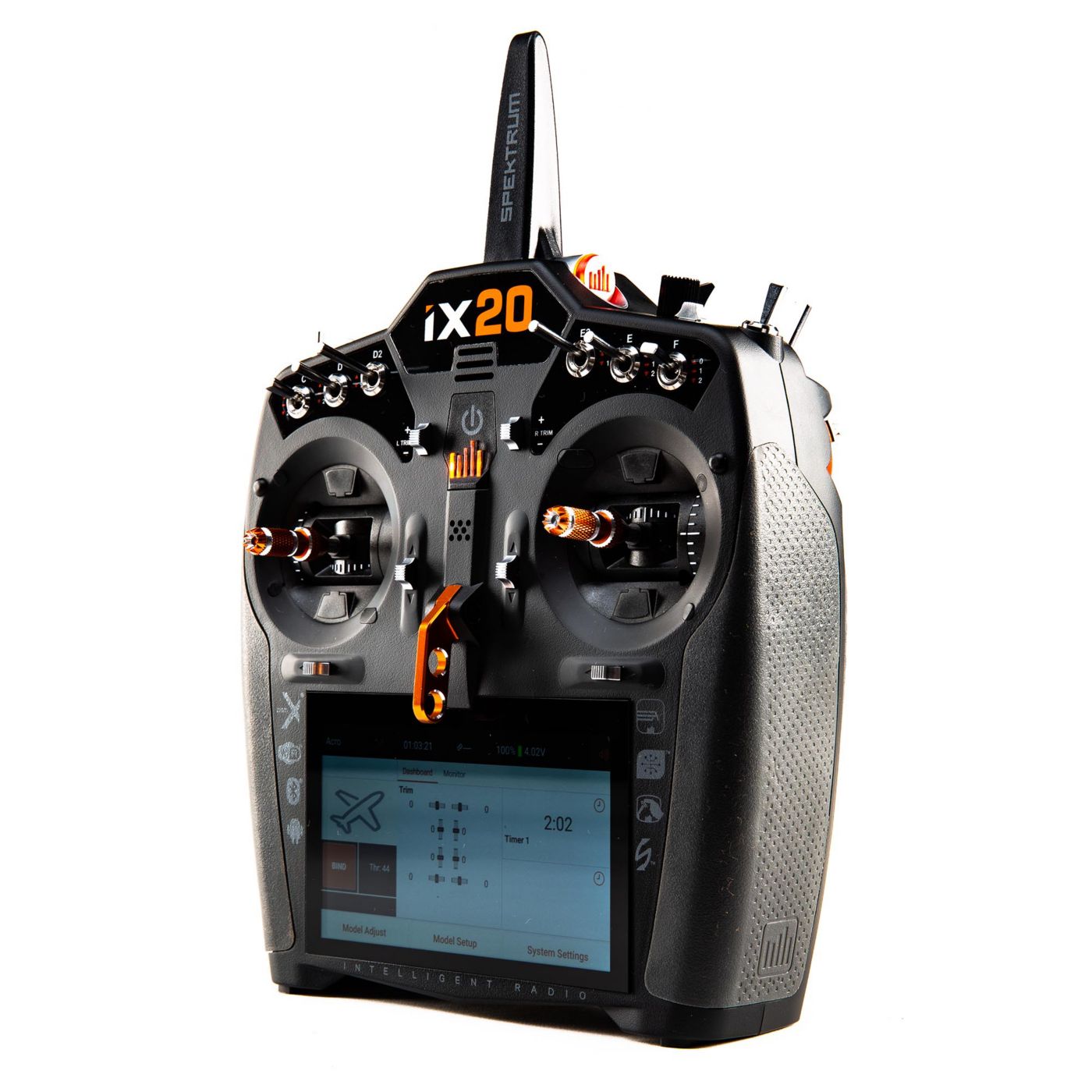

The giant 5-inch, full-color, easy-to-read touchscreen interface cold-boots (from off) in less than 30 seconds and wakes from sleep 1 second or less. Its processing speed is approximately 250% faster than that of the iX12. The stateof-the-art touchscreen technology provides information in crisp, clear detail and allows you to make precise changes quickly and easily. You literally "tap" into the iX20's programming, and model setting changes take effect instantly. Because this is a fully functional Android interface, it will work with an evolving list of apps from the Google Play store.

HIGH-RESOLUTION COLOR DISPLAY

Huge and easy to read, the 5-inch, Androidpowered touchscreen offers a high-resolution 720p HD color interface with the power to graph expo curves and the like with greater accuracy and view new telemetry gauges in a way that won't leave you second-guessing. Key Ergonomic Features:

Long-time Spektrum™ users will feel right at home the first time they pick up the iX20. That's because its Spektrum AirWare™ Touch app program is built on the same Spektrum AirWare firmware used today. The giant, color touchscreen interface simply makes menu navigation and setting changes even easier than they were before.

Maybe you're the proud owner of the most feature-packed model on the planet, maybe not. Use just four channels or all 20. The iX20 intuitive programming uses simple language and logic to help you easily set up and operate any aircraft type, and to custom-tune and add features whenever you like. With its X-Plus™ channel expansion capability, the iX20 also allows you to add up to eight additional channels with an X-Plus Channel Expansion Module (SPMXP8000 – sold separately). Just plug the module into a compatible receiver, bind it to the iX20, and then assign the extra channels to any functions you want.

The iX20 allows you to customize menus based on particular receiver features, adding or removing items that are or are not relevant. Just go into the receiver list drop-down menu and use the on/off buttons to turn items on or off (and to select channel count if the receiver you want is not listed).

Just talk to the iX20 and it will listen. New speech-to-text functionality, made possible by Android, allows you to access and setup custom telemetry warnings, reports and more through its voice recognition software.

Keep tabs on important information without ever taking your eyes off what you are flying. The iX20 programmable voice alert system can call out what flight mode you have chosen or report telemetry info automatically or on demand. If an alarm goes off, you won’t have to look at the display to see what's happening. The iX20 can tell you. Create any voice alert by just typing in the words.

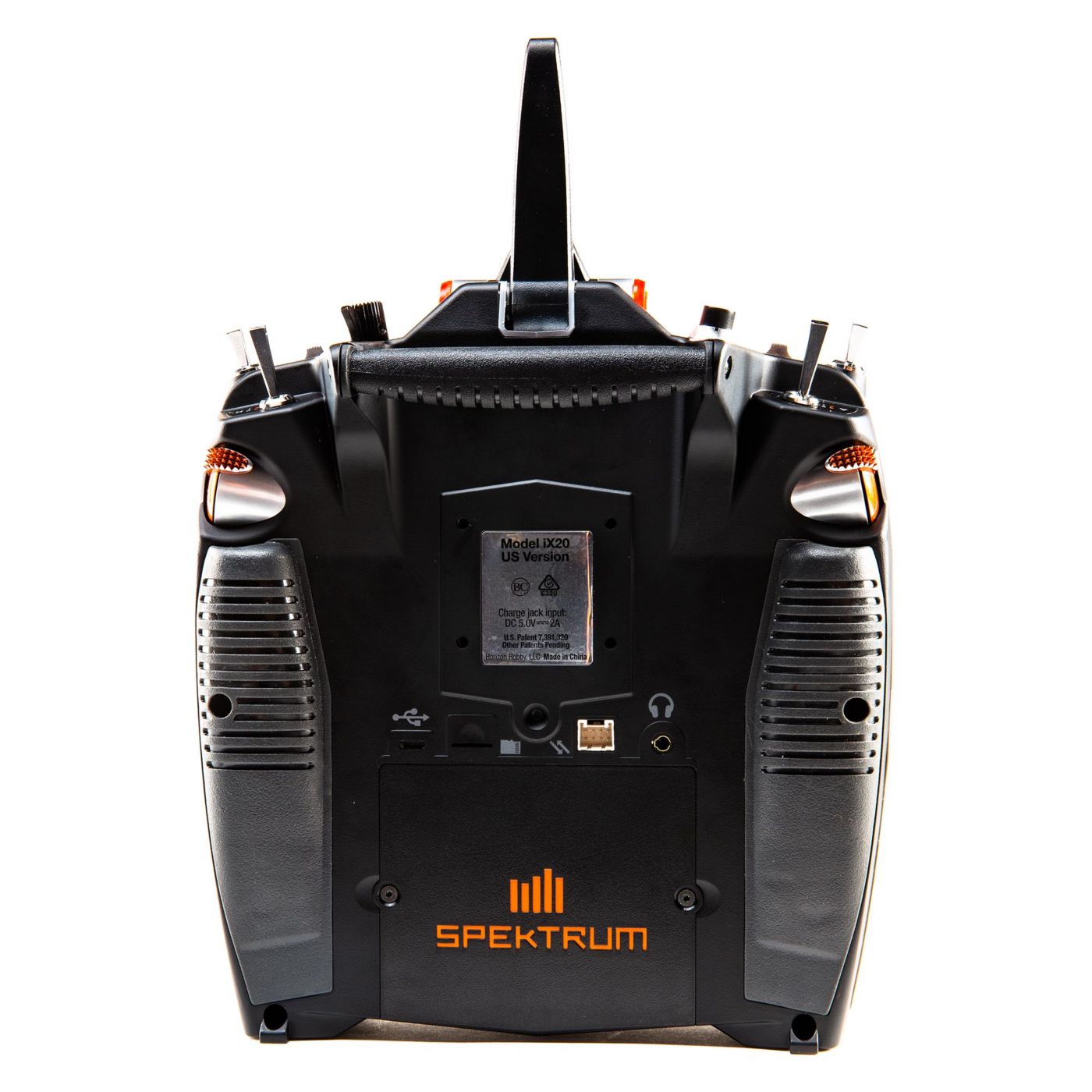

In addition to a built-in speaker, the iX20 has a headphone jack that allows you to monitor voice alerts using earbuds so you don't bother other pilots. You can also use Bluetooth to connect with wireless earbuds or your phone's ear piece. Easily

The iX20 has the most program mixes ever offered in a Spektrum radio. In each mix, a curve is available for each position. For example, if you assign a mix to flight modes, you may have up to 10 flight modes; you'll also have up to ten different curves for total flexibility. Having a curve for every position provides much more flexibility and power for complex mixing, and can reduce the number of program mixes it takes to achieve a desired setup.

Easily fine tune programmed features while flying without awkwardly having to access a specific menu or land just to tweak an adjustment. On-The-Fly (OTF) lets you adjust mixes and other programmed values conveniently "on the fly" by simply using one of the four auxiliary trim controls (not the primary trim controls) you select.

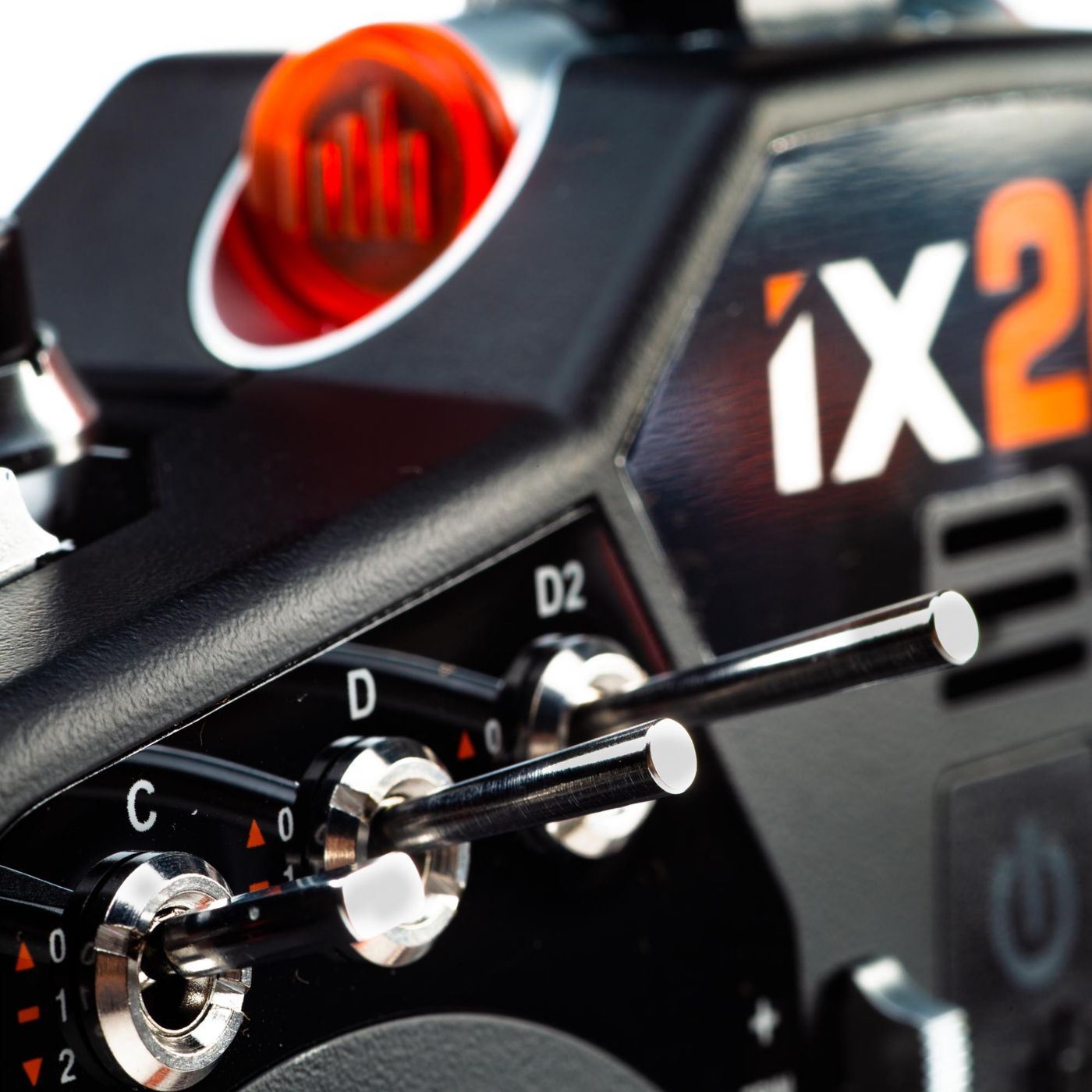

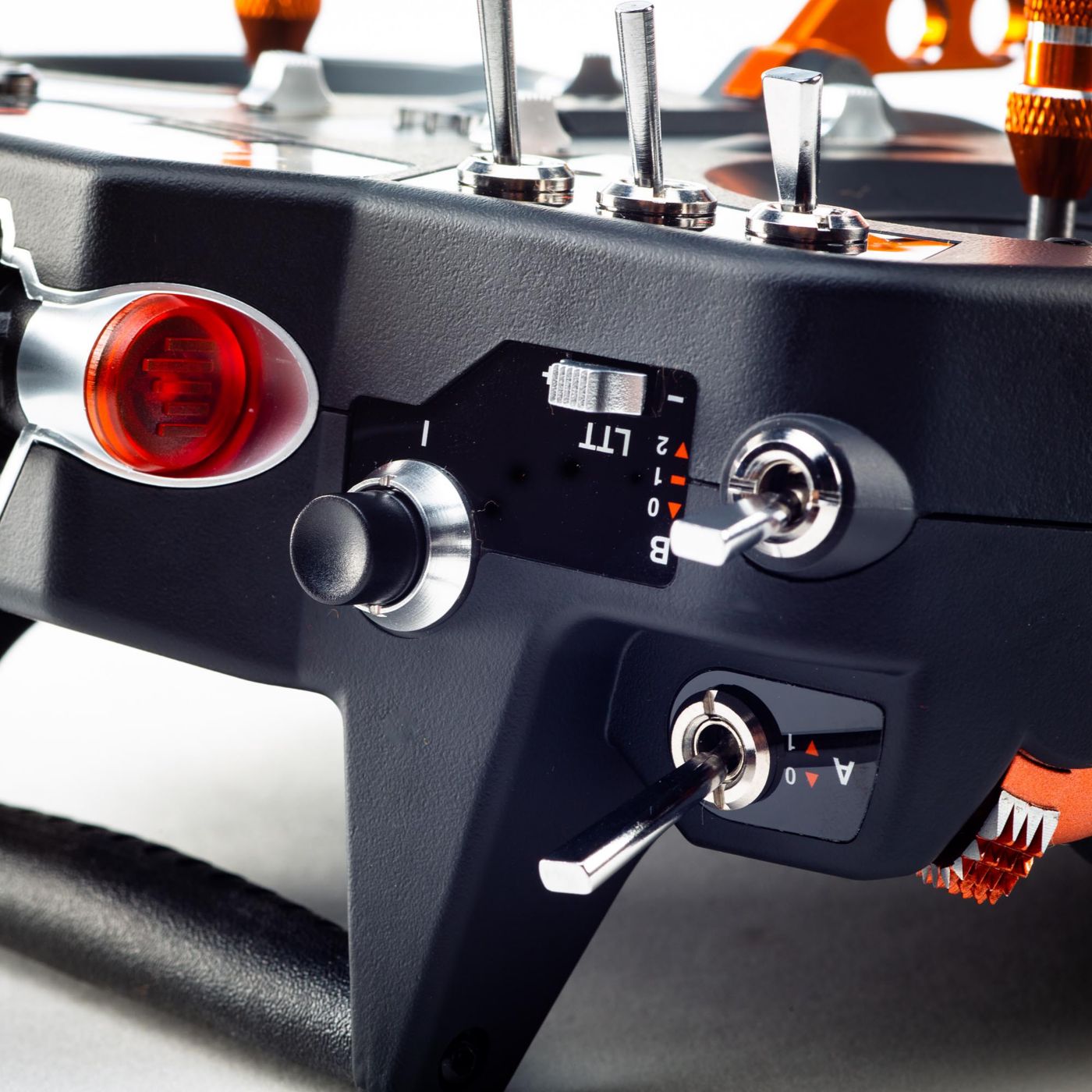

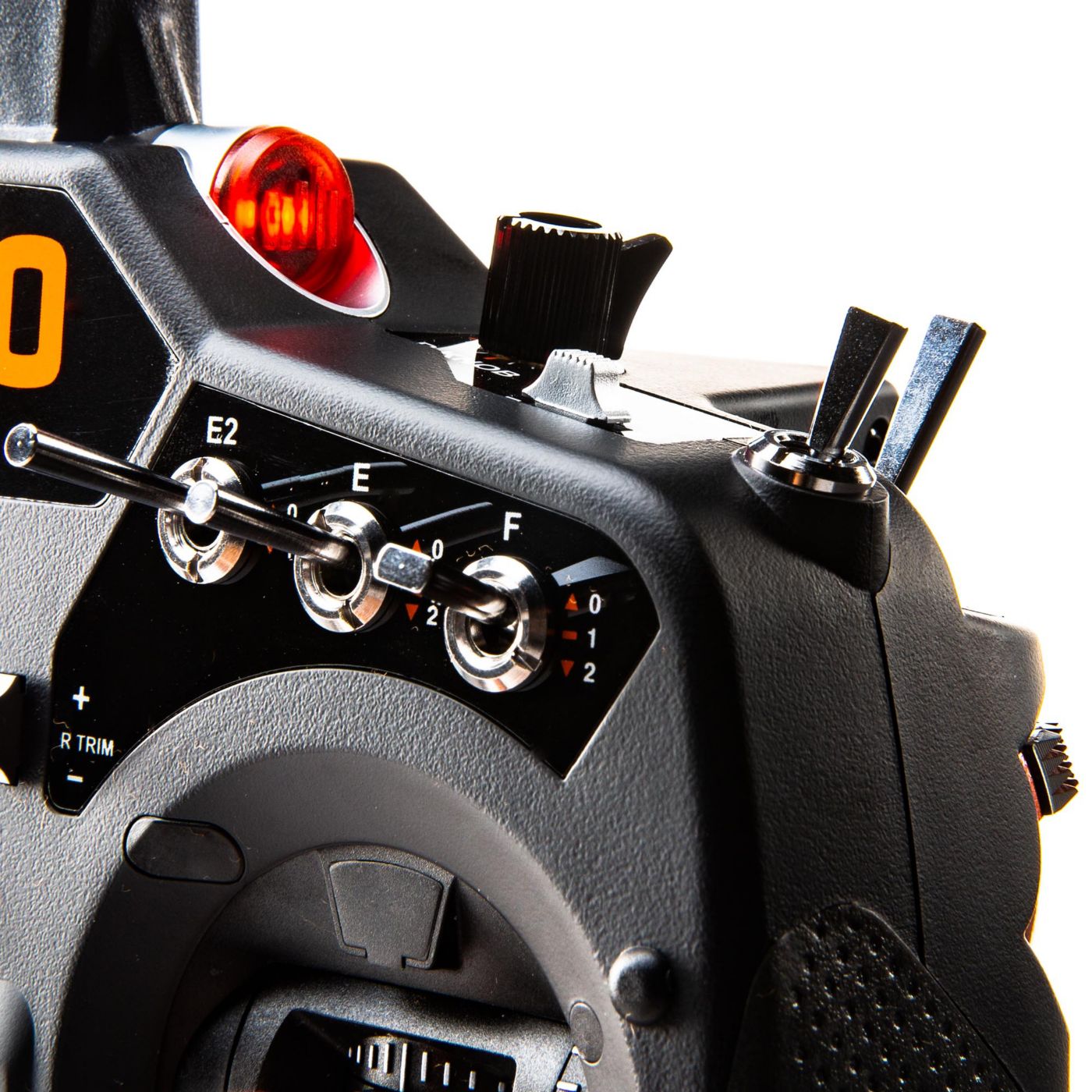

Turn timers on or off, or activate programmed voice alerts with just your touch. An industry first, the iX20 uses capacitive-touch technology so that any of the ten toggle switches, the I-switch button, or gimbal sticks react to the soft touch of a finger and without interrupting the programmed mechanical movements also assigned.

The iX20's enormous internal memory – large enough to hold 250 models – means you'll rarely, if ever, need to juggle models between the transmitter memory and SD card or Bluetooth memory devices. Nevertheless, transferring model programs is simple and seamless with the iX20 and other Spektrum brand radios. You can easily share models between "G2" systems and iX-series radios via SD card or Bluetooth. Note: The iX20 can import SPM and iSPM file types, but can export only iSPM type files.

Having multiple antennas built-in assures RF performance regardless of how the iX20 transmitter is oriented while you fly. In addition to the visible antenna, another is designed into the transmitter handle. It’s a proven effective system that enhances signal reception while reducing polarization

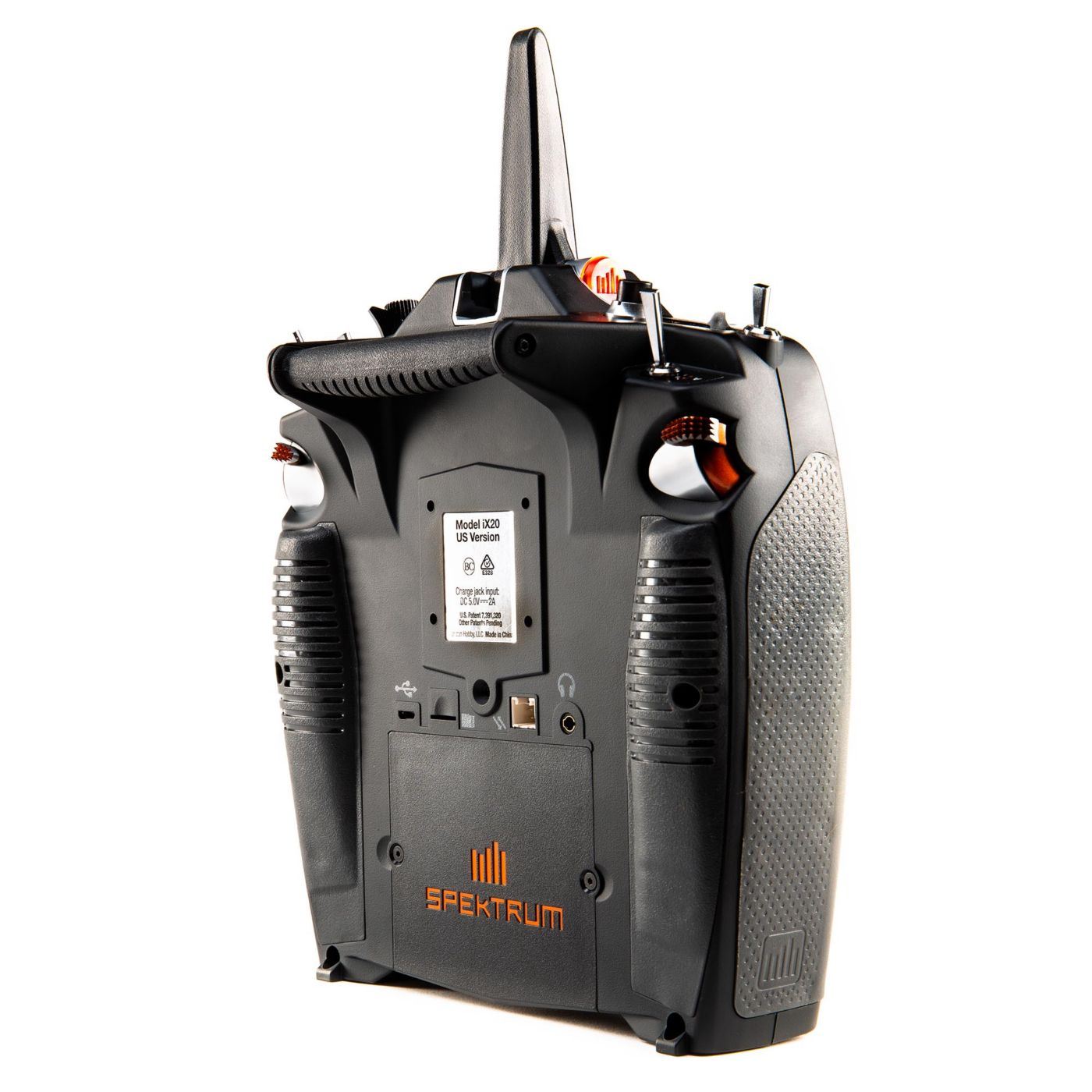

A camera is built into the iX20 transmitter and can be used to take still photos and videos. The lens is located in the rear center of the transmitter. It's easy to capture images of your own aircraft and add them to the Model Details menu. DIVERSITY ANTENNA

Go further with the iX20 when you explore what the integrated auxiliary serial port has to offer. It’s a next-level link that lets you accessorize the iX20 transmitter with an alternate RF system, such as the TBS Crossfire CRSF protocol technology, and still enjoy extremely low latency performance.

The exclusive functionality of the Spektrum™ wireless trainer link gives iX20 users the ability to link up wirelessly with other Spektrum transmitters. It's hassle-free. Once bound to another transmitter or component, ModelMatch™ technology will allow the iX20 to re-link without going through the bind process all over again.

With Wireless Trainer Link, You Can:

• Wirelessly "buddy box" with another DSMX®/DSM2® transmitter when teaching someone to fly.
• Assign gimbal functions to a second "camera" transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while the camera operator lines up the shot
• Link with specially equipped Spektrum™ FPV headsets to wirelessly control head tracking.

• Spektrum iX20 Transmitter
• 10,500mAh Li-Ion Transmitter Battery Pack (Installed)
• Custom Carrying Case

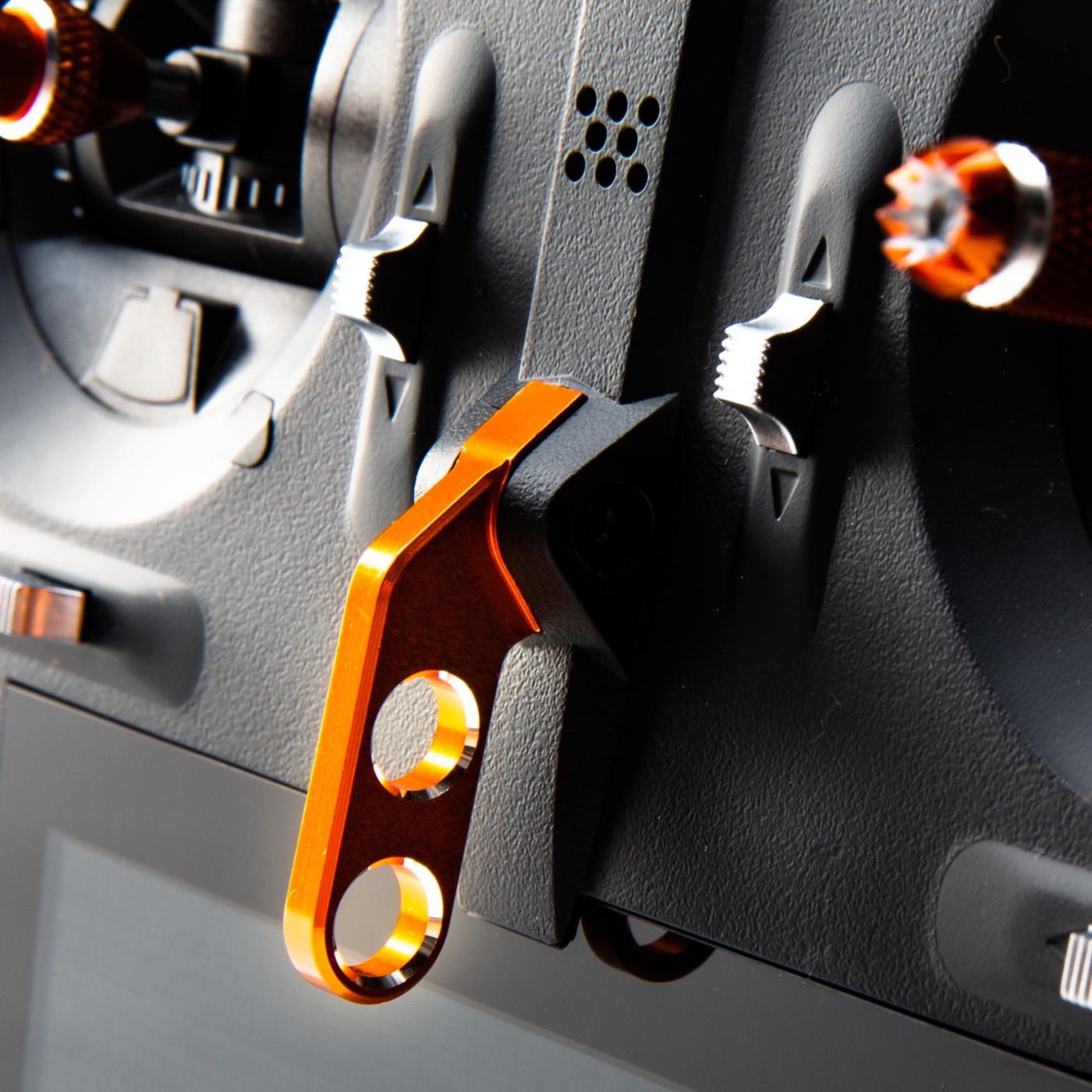

• Custom Neck Strap
• Short and Long Optional Stick Ends
• USB Magnetic Adapter Cable
• Magnetic Micro USB Adapter (Shown Installed)

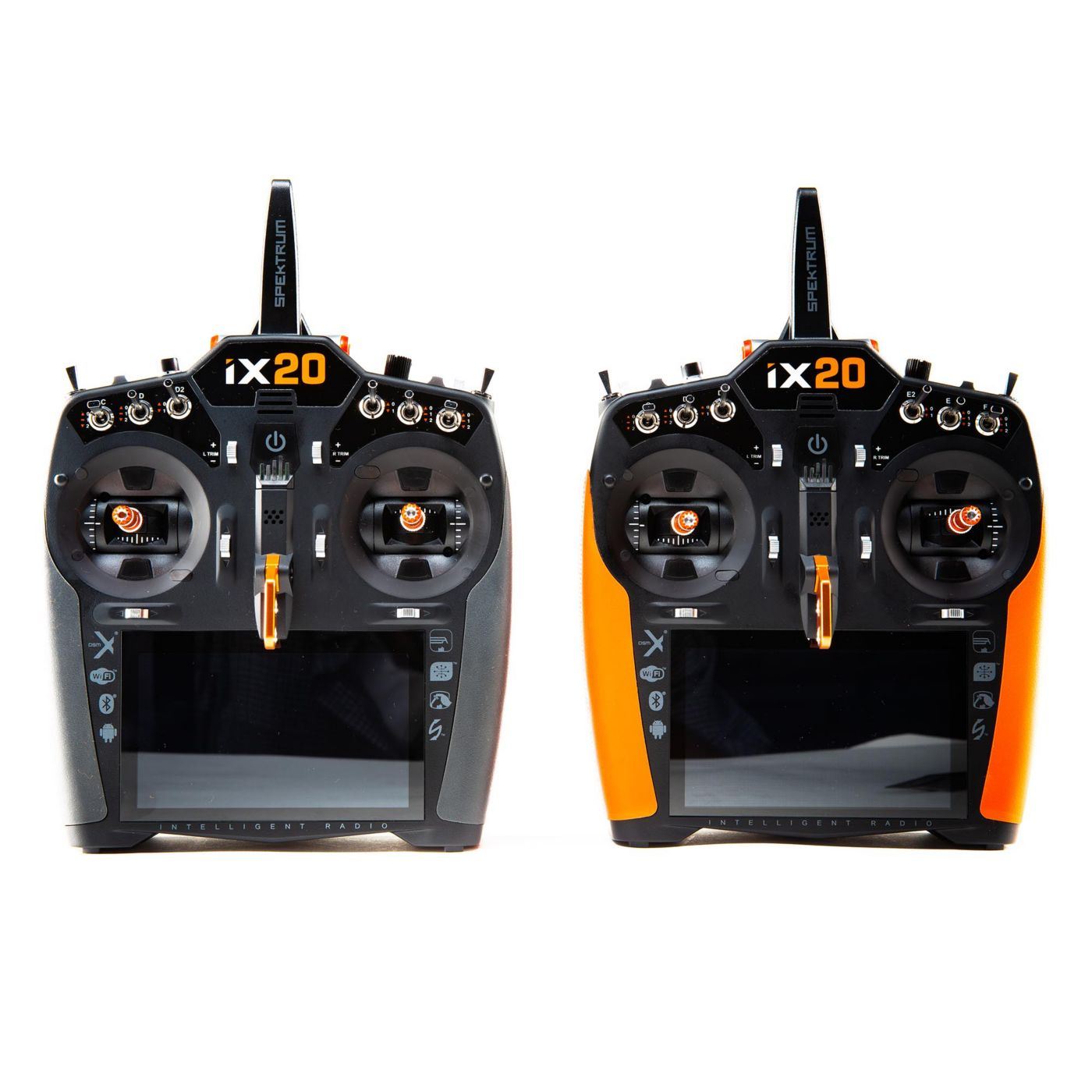

• Orange Grip Set
• Quick Start Guide
• iX20 Decal Sheet
