A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy...
Vendor: Savox
SKU: SV-1259MG
Availability: 10 In Stock
Product Type: Radio Control
$156.01
$156.01
Please hurry! Only 10 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $156.01
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm

Savox

Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm

$156.01
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm
Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm

Savox

Savox Low Profile HV Metal Gear Servo 22Kg, 0.075sec @8.4v 49g 40.8x20.2x27.35mm

$156.01
Shipping: Hamilton Warehouse
Description
Description
x

A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.

Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.



Full Specification

Line BLACK EDITION
Application CAR
Servo Size Low Profile
Operating Voltage 6.0V-8.4V
Speed @6.0V 0.1 s/60°
Torque @6.0V 15.0 kg/cm
Speed @7.4V 0.085 s/60°
Torque @7.4V 19.0 kg/cm
Speed @8.4V 0.075 s/60°
Torque @8.4V 22.0 kg/cm
Amplifier Type Digital Controller
Motor Type Coreless
Case Type Hybrid (Aluminum/Composite)
Protection Water Resistant

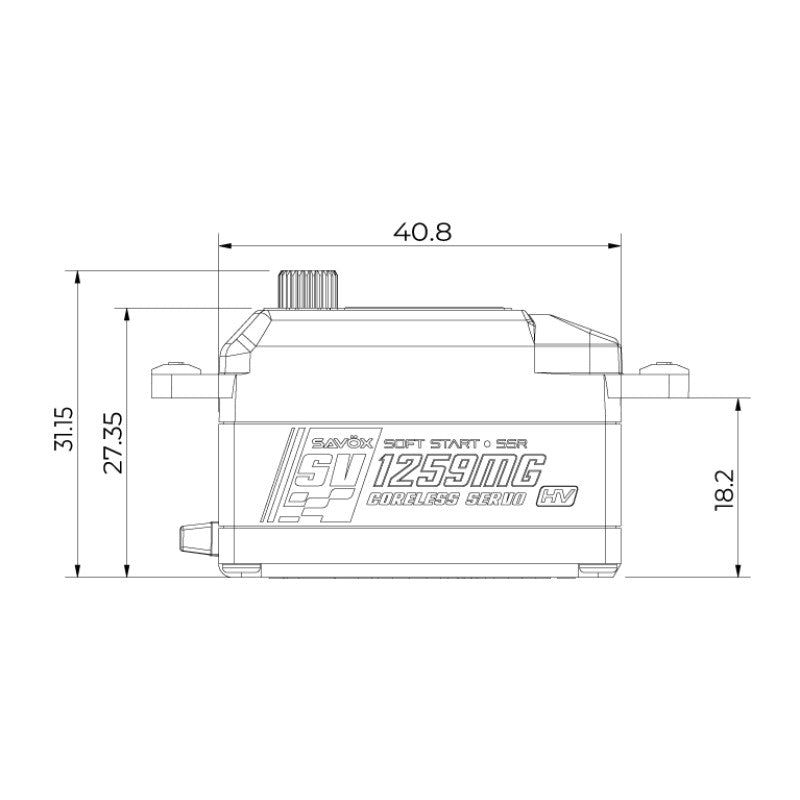

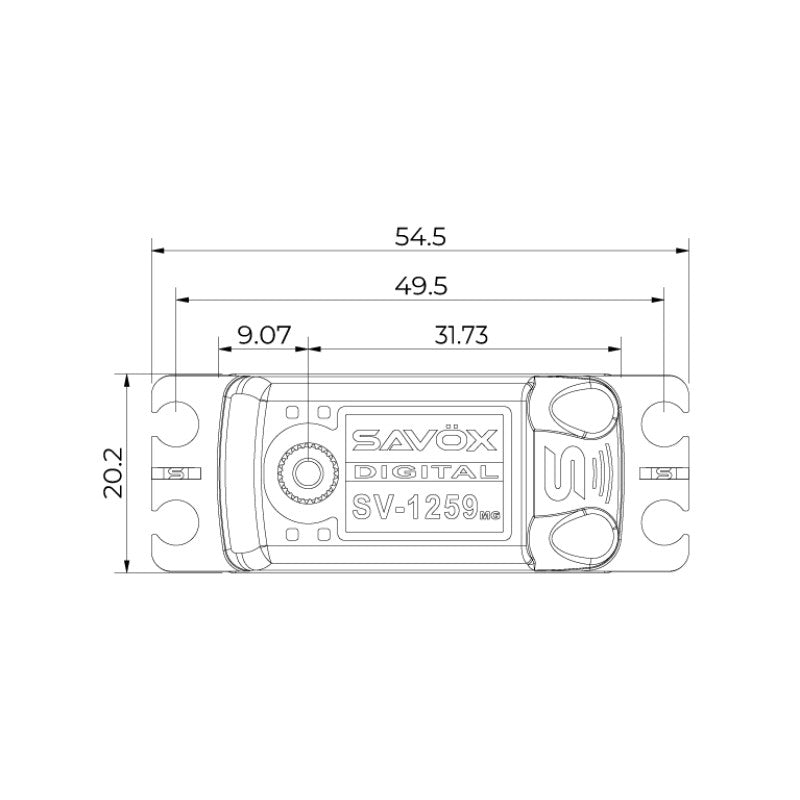

Dimensions (L x W x H) 40.8 x 20.2 x 27.35 mm
Weight 49 g

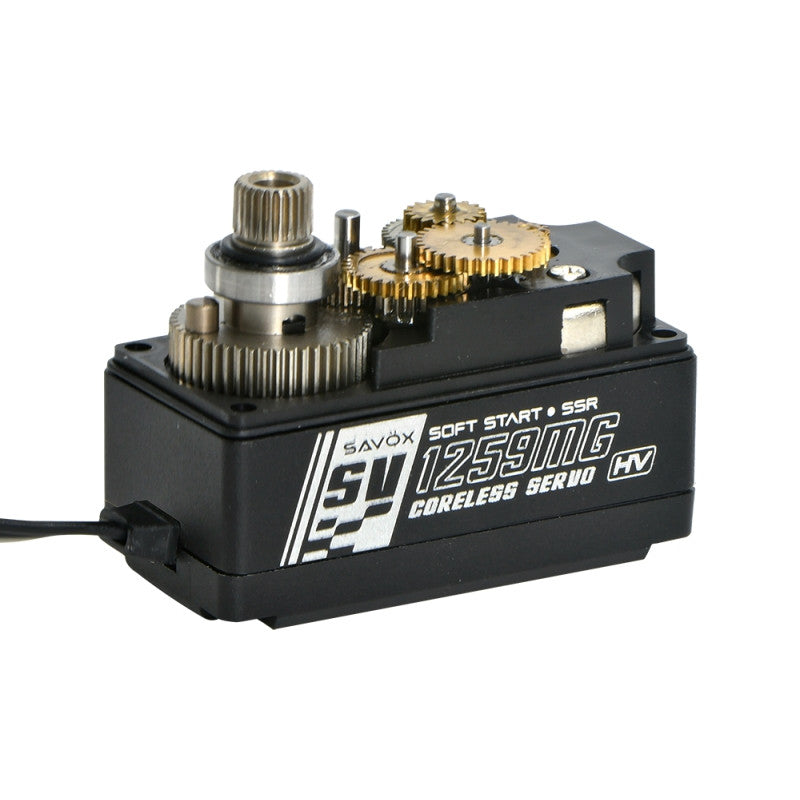

Gear Type Hybrid (Metal/Composite)
Compatibility Sanwa SUR, SSR; Futaba UR, SR
PCB Board 8-bit
Horn Gear Spline 25T(Φ6)
Rotating Direction Counterclockwise (when 1000→2000 µsec)
Max Travel ~140° (when 800→2200 µsec)
Operating Travel 100° (when 1000→2000 µsec)
Neutral Position 1500 µsec
Bearing 2x Ball Bearings
Potentiometer Contact Type Variable Resistor
Cable Diameter 26 AWG
Cable Length 250 ±5 mm
Connector JR Connector
Stall Current @6.0V 3500 mA
Operating Current @6.0V 180 mA
Stall Current @7.4V 4200 mA
Operating Current @7.4V 200 mA
Stall Current @8.4V 4800 mA
Operating Current @8.4V 220 mA
Idle Current 6 mA
Dead Band Width 3-5 µsec
Frequency Range 50-360 Hz
Control System Pulse width modification
Operating Temperature -10°C to 50°C
