Hawk 140-160N ARF with Retract Set by Hangar 9

Hawk 140-160N ARF with Retract Set by Hangar 9

Name: Hawk 140-160N ARF with Retract Set by Hangar 9
Brand: Hangar 9
SKU: HAN13750CR
Price: 7,829.75 NZD
Availability: InStock

Product Details The Hawk/T-45 140–160N Turbine Jet ARF model brings iconic naval trainer performance to your hangar. Whether you’re stepping up to your first giant-scale turbine jet, or adding to...

Vendor: Hangar 9

SKU: HAN13750CR

Availability: Out Of Stock

Product Type: Radio Control

Regular price: $7,829.75
Regular price
Sale price: $7,829.75
Unit price: per

Shipping: Hamilton Warehouse Hamilton Warehouse

Product variants

Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $7,829.75

Quantity:

Vendor: Hangar 9

Hawk 140-160N ARF with Retract Set by Hangar 9

$7,829.75

Shipping: Hamilton Warehouse Hamilton Warehouse

Product variants

Description
Shipping
Returns

Product Details

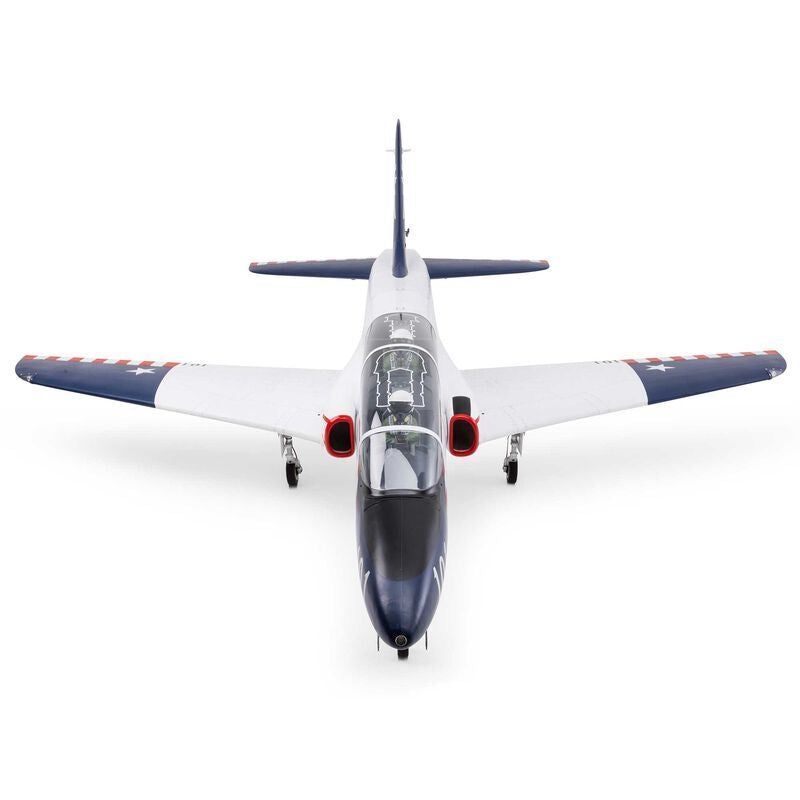

The Hawk/T-45 140–160N Turbine Jet ARF model brings iconic naval trainer performance to your hangar. Whether you’re stepping up to your first giant-scale turbine jet, or adding to your hangar, this expertly built model combines carbon-reinforced construction, a complete hardware package, and scale details that provide a premium jet experience. It's also available in a number of money-saving combos with a retract set, a turbine engine, Spektrum servos and a receiver.

In The Box

(1) Hawk/T-45 140-160N ARF
(1) Electric Retract Set
(1) User Manual

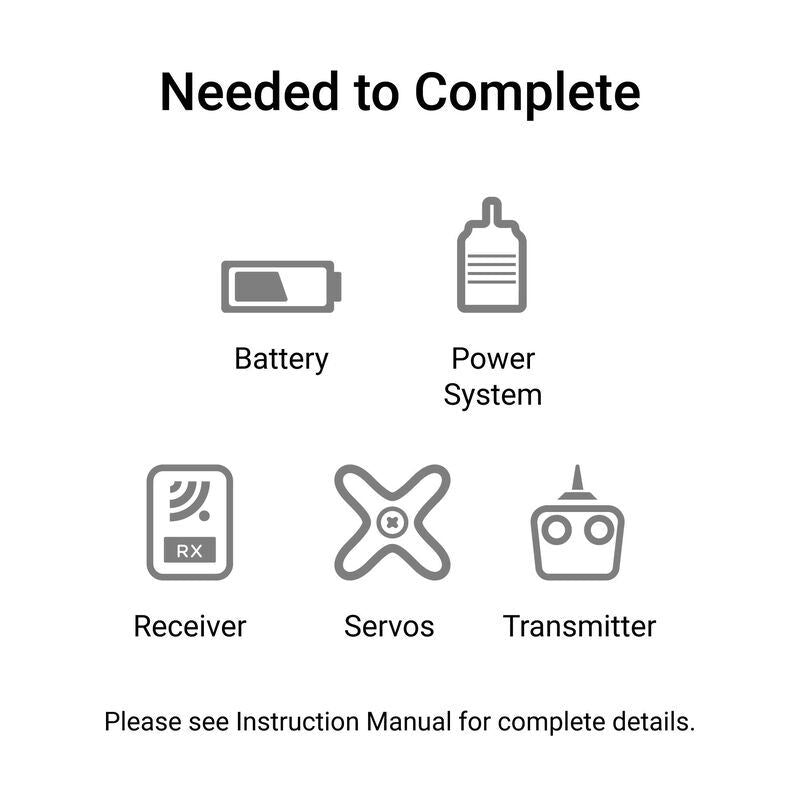

Needed to Complete

(1) 20-Channel DSMX Transmitter
(1) KingTech K-160G4+ Turbine
(7) Spektrum A6300 servos
(1) Spektrum A6320 servo
(1) Spektrum AR20410T Receiver
(1) Synapse AS3X+ Module
(2) Spektrum 2S 4000mAh LiPo G2 receiver batteries
(1) Spektrum 3S 3200mAh LiFe ECU battery
(5) Spektrum Single-Sided 1.0” aluminum servo arms
(3) Spektrum Single-Sided 1.5” aluminum servo arms
(1) KingTech 150cc air trap

Hangar 9 Hawk/T-45 140-160N ARF RC Jet Introduction

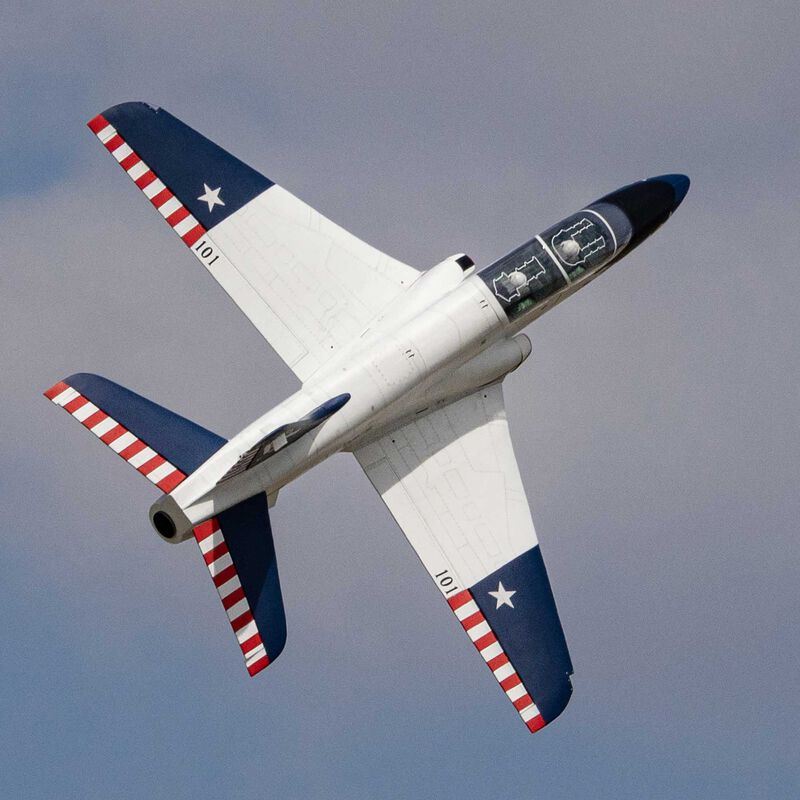

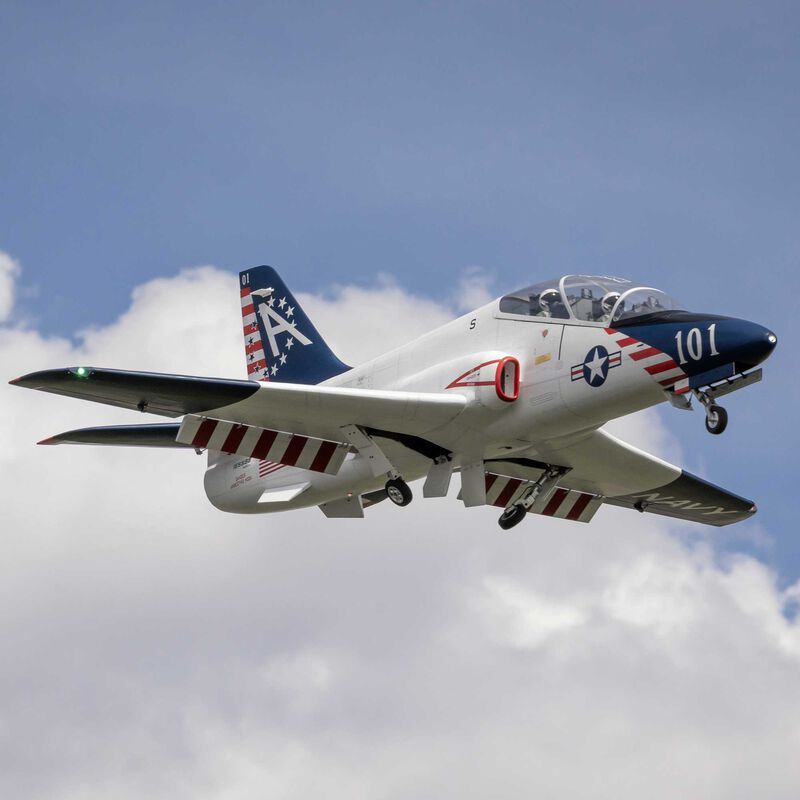

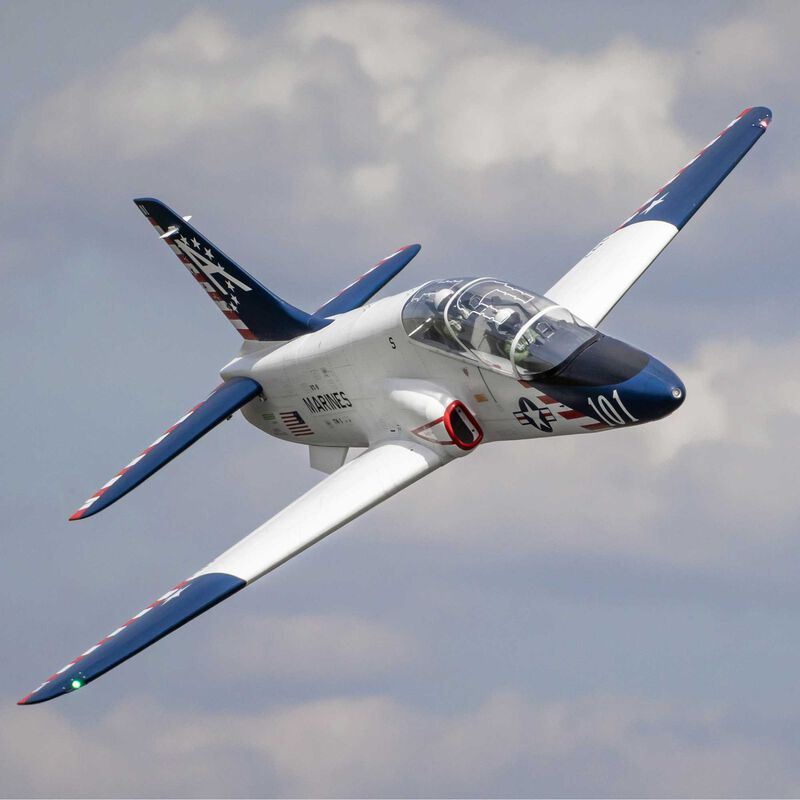

Since entering service in the late 1970s, the Hawk—and its U.S. Navy variant, the T-45 Goshawk—has trained generations of military pilots worldwide. Hangar 9’s Hawk 140–160N Turbine Jet ARF model faithfully captures that legacy in a robust, pre-built package designed for today’s turbine sport and scale flyers. Crafted from lightweight balsa and plywood reinforced with carbon fiber, this ARF airframe arrives ready for your choice of 140–160N turbine engines (sold separately). A complete hardware kit, dual-wall stainless steel pipe and 5.5L fuel tank ensure you spend less time shopping for parts, and more time mastering precision passes, rolls and loops. Finished in the striking VT-7 “Betsy Ross” trim scheme, the Hangar 9 Hawk delivers an eye–catching presence both on the ground and in the air.

Hangar 9 Hawk/T-45 140-160N ARF RC Jet Overview

Hangar 9’s Hawk 140–160N sets a new standard for scale turbine ARF models. Based on the proven Hawk airframe and adopted by the U.S. Navy as the T-45 Goshawk, this model blends authentic lines with modern materials to deliver a stable yet highly responsive flying experience. At the heart of the design is a factory-assembled airframe of carbon fiber–reinforced balsa and plywood. All control linkages are included, along with a comprehensive hardware pack including a composite 5.5 L fuel tank with aluminum magnetic fill and vent fittings, dual-wall stainless steel tail pipe, and assembly hardware.

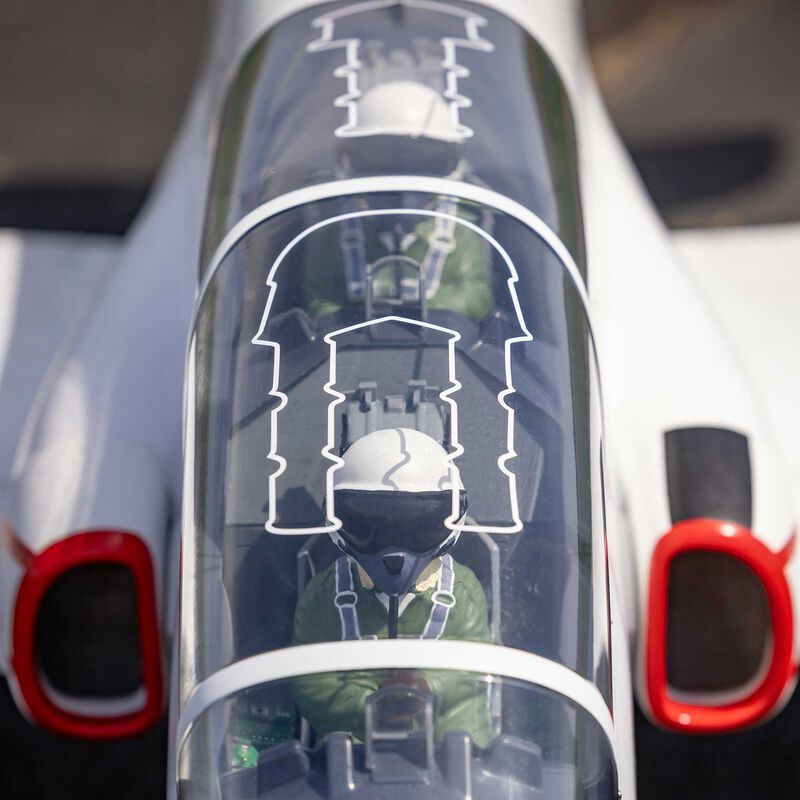

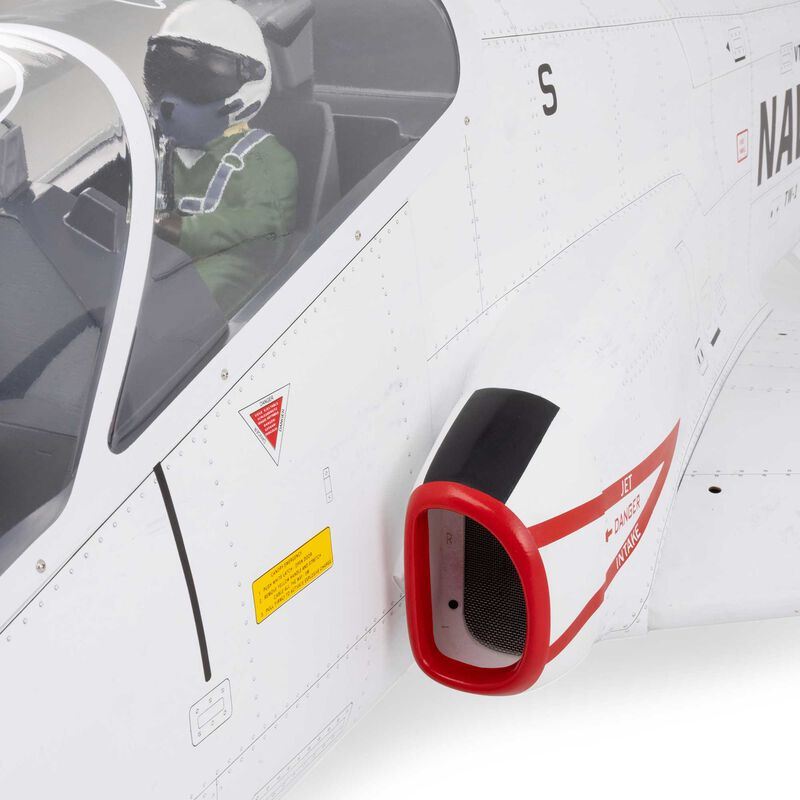

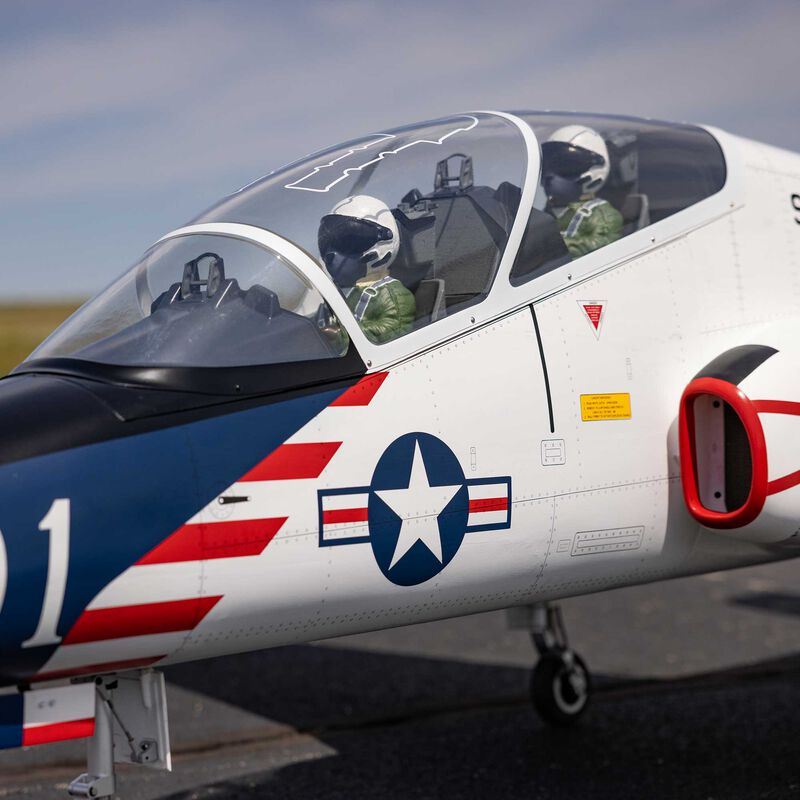

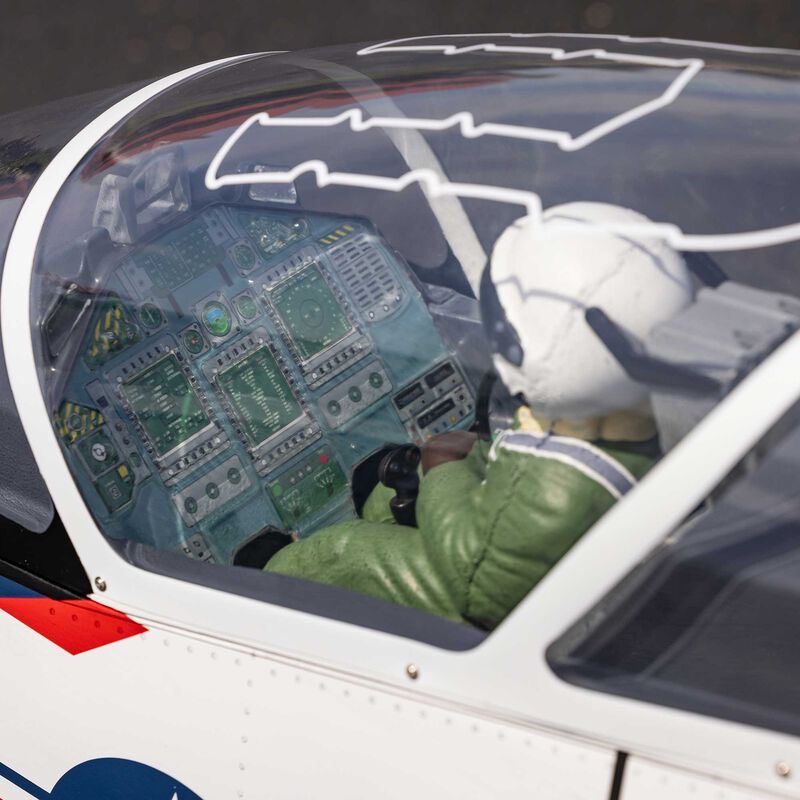

Large top hatches grant rapid access to the turbine, fuel system, and electronics. Scale enthusiasts will appreciate the printed VT-7 “Betsy Ross” factory-applied trim scheme with panel line, hatch, and rivet details. Inside, a detailed cockpit houses pilot figures, molded seats and a 3D instrument panel under a clear canopy.

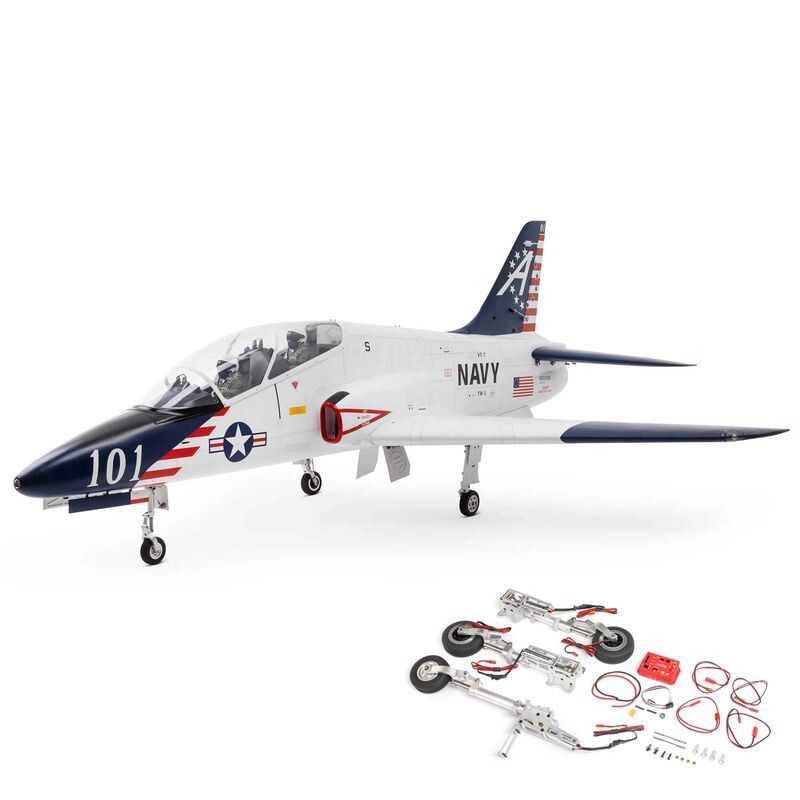

The electric retract set (HAN13785) is equipped with precision aluminum trailing-link struts and electric brakes, which allow the Hawk to take off and land from paved surfaces, and most grass runways. The retract set includes a retract controller with adjustable brake strength, and a test function that allows retract operation without the transmitter. A complete set of gear doors with mounting hardware and linkages is also included.

To ease storage and protection, the two-piece wing, horizontal stabilizers, vertical stabilizer, and ventral fins can be removed with ease and stow safely in optional carrying bags (HAN1375018 and HAN1375019)The aircraft is light-ready, and suits various lighting options, including two Hawk-specific versions from uniLIGHT.

From its storied heritage to its turnkey hardware, the Hawk/T-45 140–160N Turbine Jet ARF invites turbine pilots to command the skies with scale realism and incredible field presence.

Hangar 9 Hawk/T-45 140-160N Turbine Jet ARF RC Jet Video

Hangar 9 Hawk/T-45 140-160N ARF RC Jet Features

Designed for popular 140–160N turbine engines (turbine sold separately)
Factory-assembled carbon fiber–reinforced balsa and plywood airframe
Composite 5.5 L fuel tank with aluminum magnetic fill and vent fittings
Dual-wall stainless steel tail pipe
Two-piece removable wing and stabilizers, and vertical stabilizer for easy transport and setup
Two large top-hatches for tool-free access to turbine, batteries and electronics

Authentic VT-7 “Betsy Ross” printed PVC covering with scale rivets, panel lines and weathering details

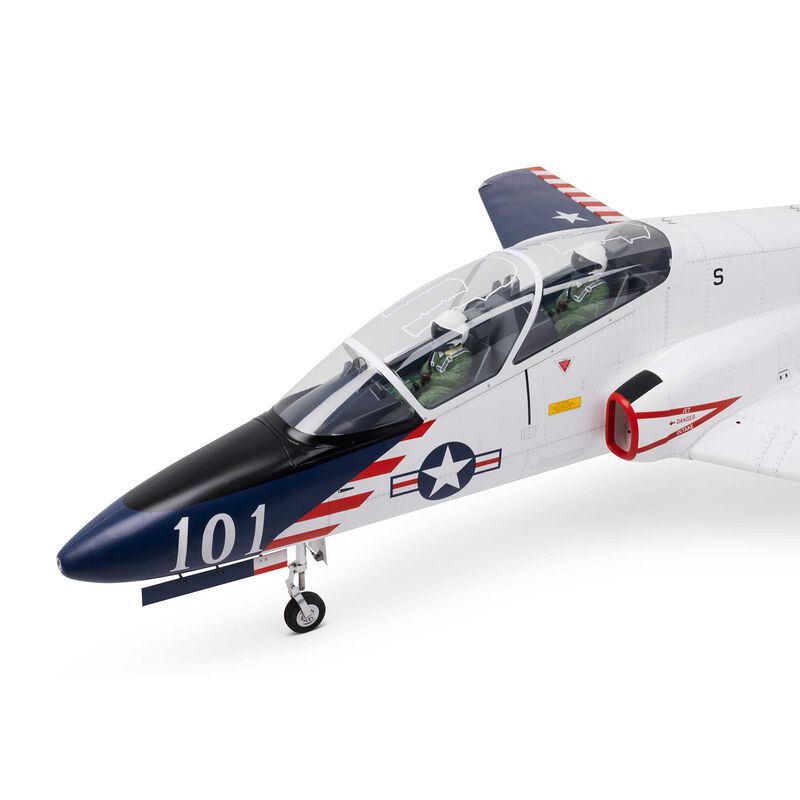

Detailed cockpit with painted pilot figures and 3D instrument panel
Electric retract set with aluminum trailing-link struts, electronic brakes and controller (HAN13785 included with this combo)
Complete gear door set with hardware and linkages
Modular transport design: removable wings, stabilizers and ventral fins
Light-ready airframe for optional LED lighting (not included)

Skill Level 2 for the Hangar 9 Hawk 140-160N ARF RC Jet

Skill Level 4 – ADVANCED EXPERIENCE REQUIRED

Skill Level 4 aircraft require advanced piloting, setup and assembly experience.

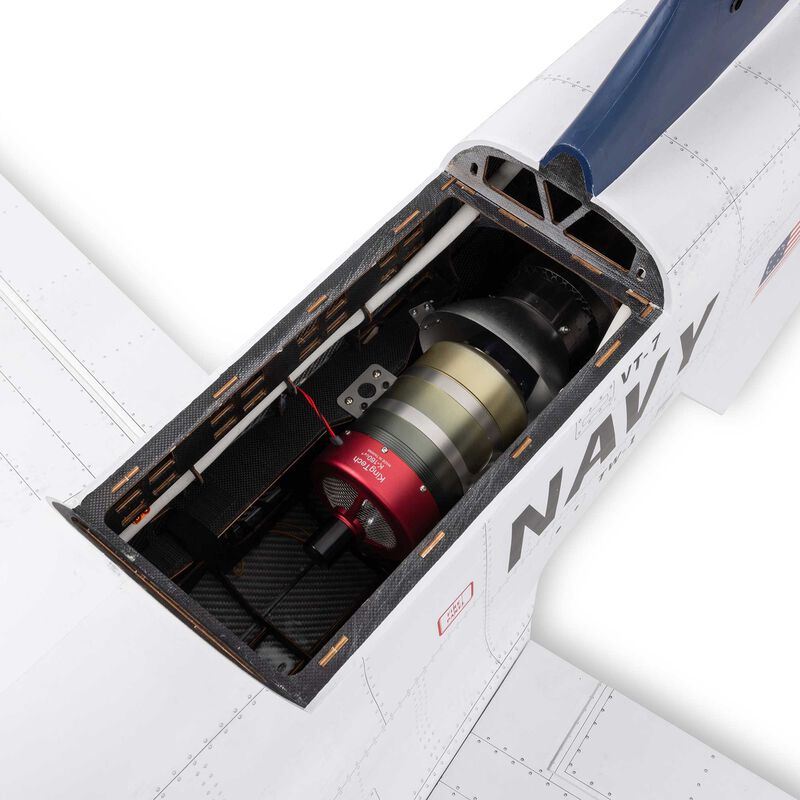

140-160N TURBINE READY AIRFRAME

Weighing 40-44 lbs, the Hawk is perfectly paired with modern turbines from brands like Kingtech and JetCat in the 140-160N size range. The Kingtech K-142 and K-160 are what powered development and test airframes. Our preferred engine is the K-160 as it provides a great combination of power, performance, and flight time.

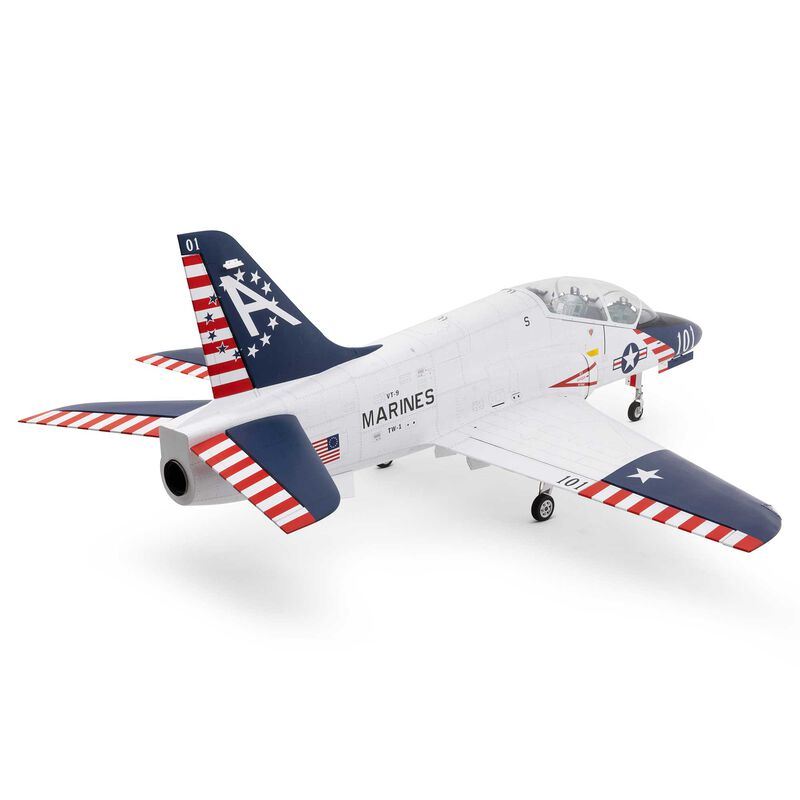

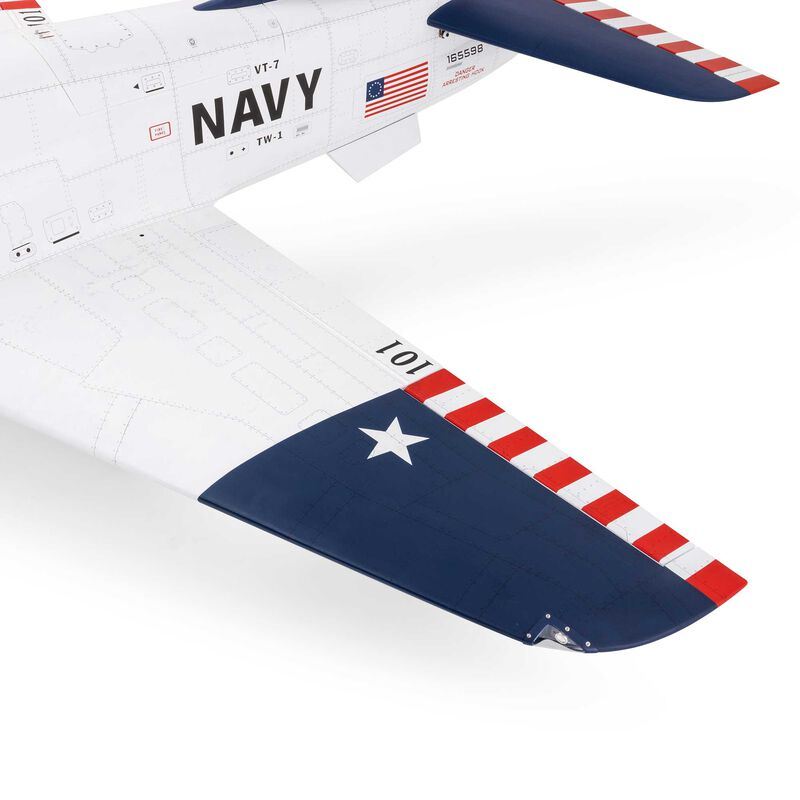

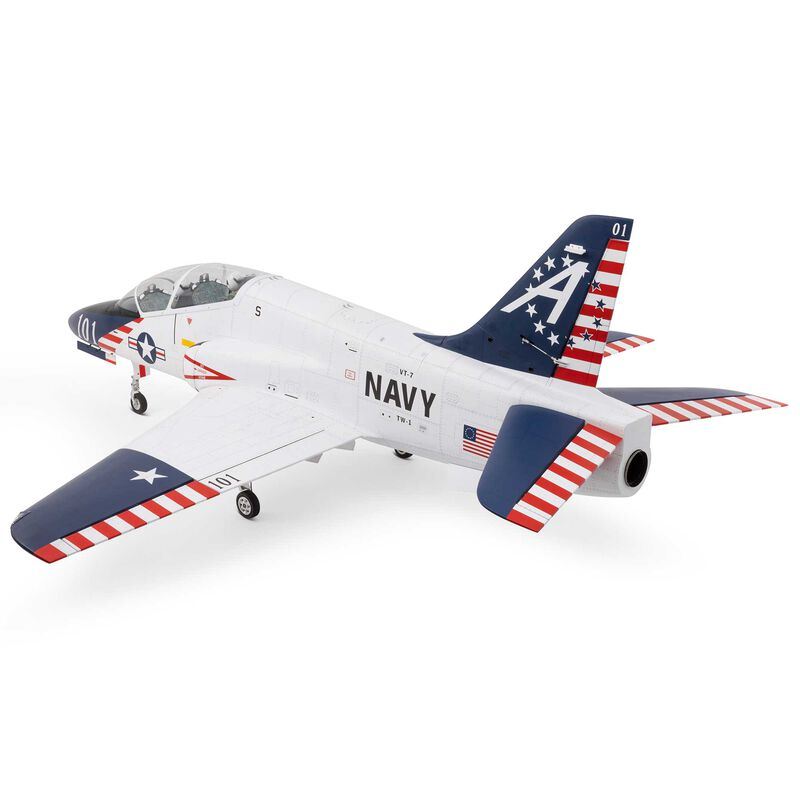

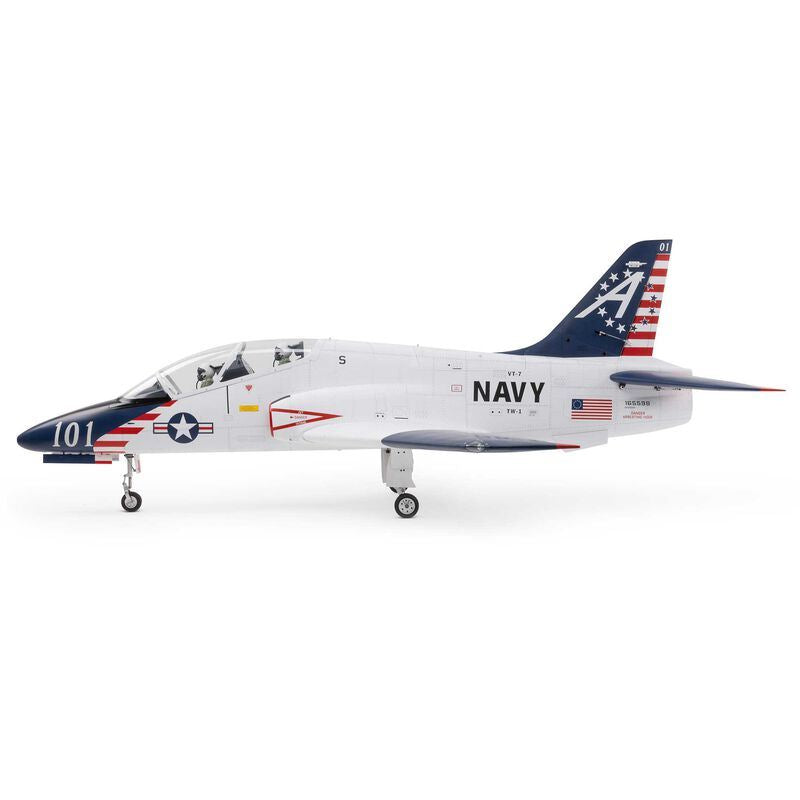

AUTHENTIC “BETSY ROSS” COVERING

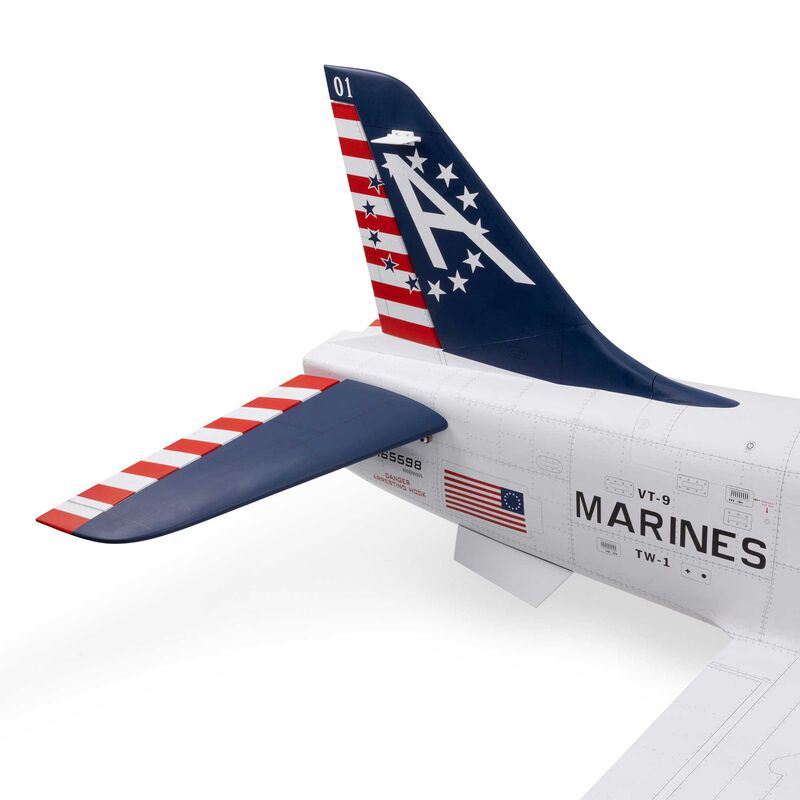

The Hawk arrives wrapped in printed, self-adhesive PVC film replicating VT-7’s “Betsy Ross” flag scheme. Durable and precision cut, it delivers crisp panel lines, scale rivet details and weathering straight out of the box.

ROBUST FUEL SYSTEM

A composite 5.5 L fuel tank with aluminum magnetic fill and vent fittings, plus a dual-wall stainless steel tailpipe, are ready for easy install with the included hardware.

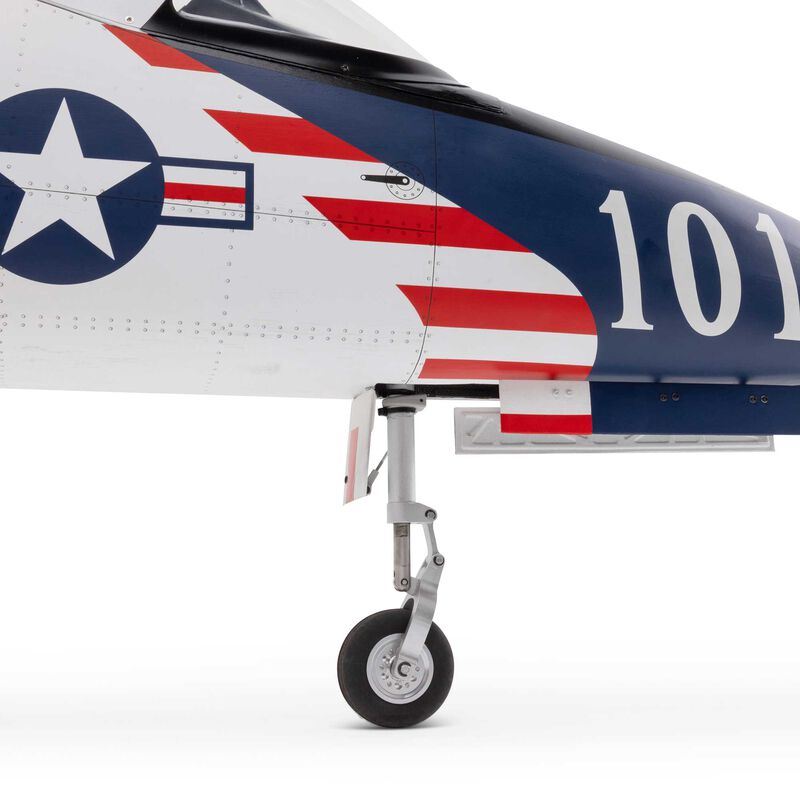

ELECTRIC LANDING GEAR & BRAKES

The HAN13785 retract set (included with this combo) includes precision aluminum trailing-link struts, integrated electric brakes and a gear controller with brake adjustments, and a test button for cycling the landing gear without needing a transmitter.

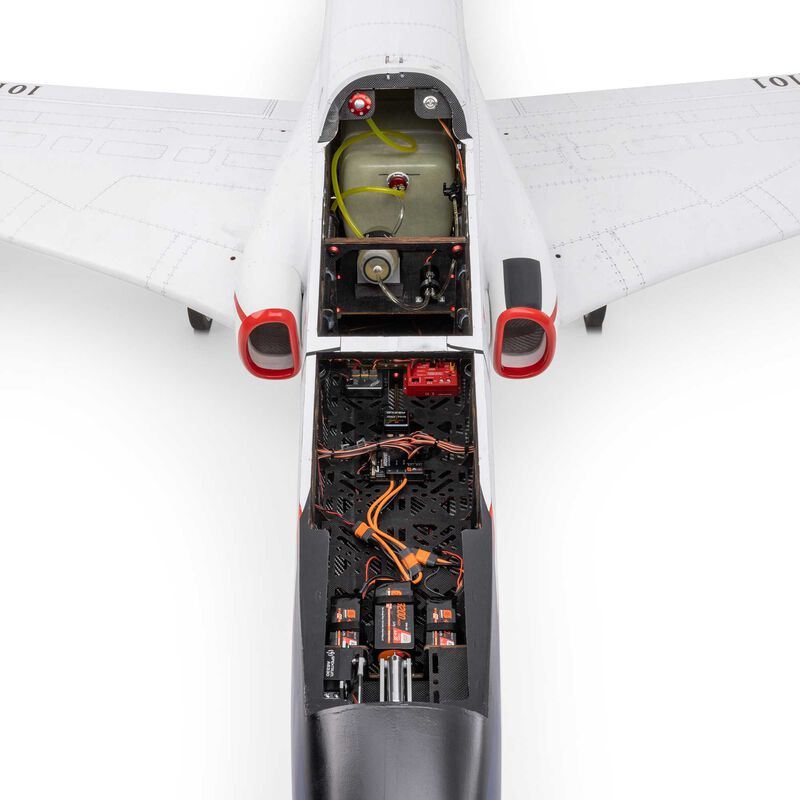

LARGE TOP-HATCH ACCESS

Oversize hatches open tool-free to reveal the turbine bay, battery trays and receiver compartment. Big openings mean fast hookups, quick troubleshooting and efficient field-service routines - even when the flight line is busy.

MODULAR TRANSPORT DESIGN

Wings, stabilizers and ventral fins detach quickly seconds thanks to carbon-fiber and aluminum joiner tubes, with quick-release hardware. Stow them in optional padded transport and storage bags (HAN1375018, HAN1375019).

GEAR DOORS

A complete landing gear door set is supplied and provides a scale finishing touch. All linkages and mounting hardware are included, add three standard servos and you’ll be ready to get the gear cleanly tucked away.

READY FOR LIGHTS

The airframe is Light-Ready—just add your preferred LED kit. We’ve worked with folks like UNI-LIGHT ahead of release to ensure combos are available to make shopping easy! Customers may want to add a nose light, navigation and strobe lights for the wings, beacon and strobe lights for the fuselage.

Product Specifications

Approximate Assembly Time	60+ Hours
Approximate Flight Time	7-10 minutes
Completion Level	Almost Ready-To-Fly
Engine Size	140-160N Turbine
Flaps	Yes
Fuel Tank Capacity	5.5 litres (186 fl. ozs)
Minimum Required Radio	16+ channel full-range
Power Type	Turbine
Product Length	103.2" (2621 mm)
Product Weight	Weights without Gear Doors: Empty Weight with K-142G4+: 39.4 lbs (17.87 kg) Weight RTF with K-142G4+: 48.4 lbs (21.96 kg) Empty Weight with K-160G4+: 39.8 lbs (18.07 kg) Weight RTF with K-160G4+: 48.9 lbs (22.16 kg)
Radio	Sold Separately
Receiver	Sold Separately
Retracts	Sold Separately
Servos	Sold Separately
Skill Level	Level 4
Total Weight	Weights with Gear Doors: Empty Weight with K-160G4+: 42.0 lbs (19.06 kg)
Wingspan	97" (2464 mm)
