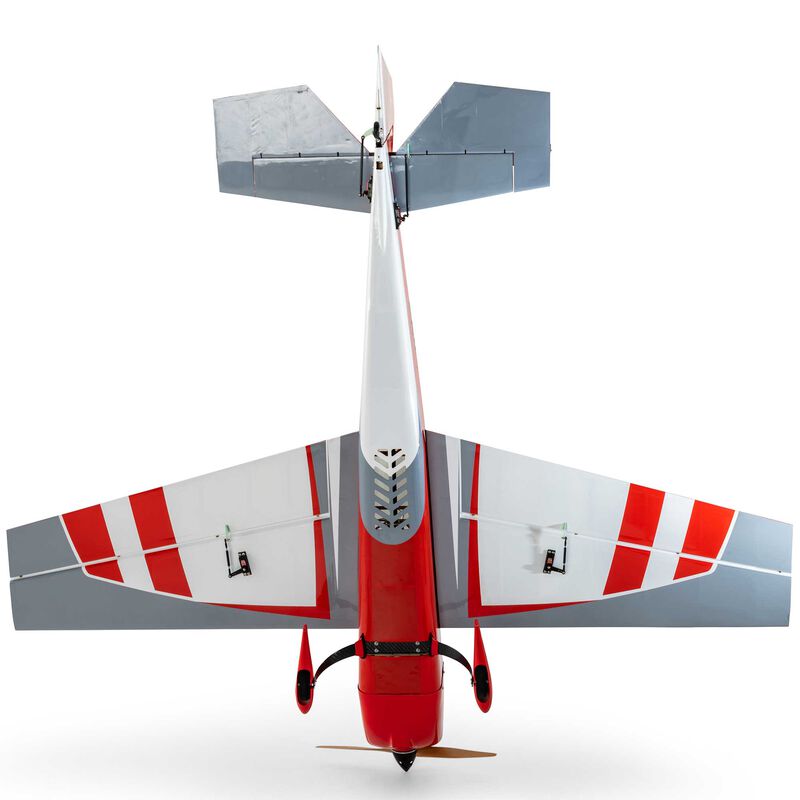

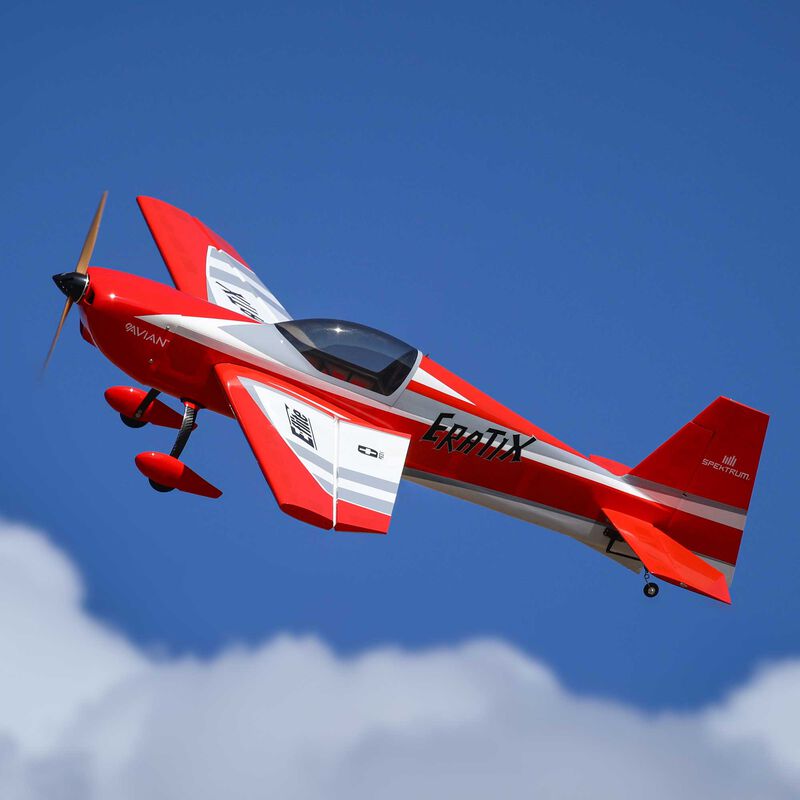

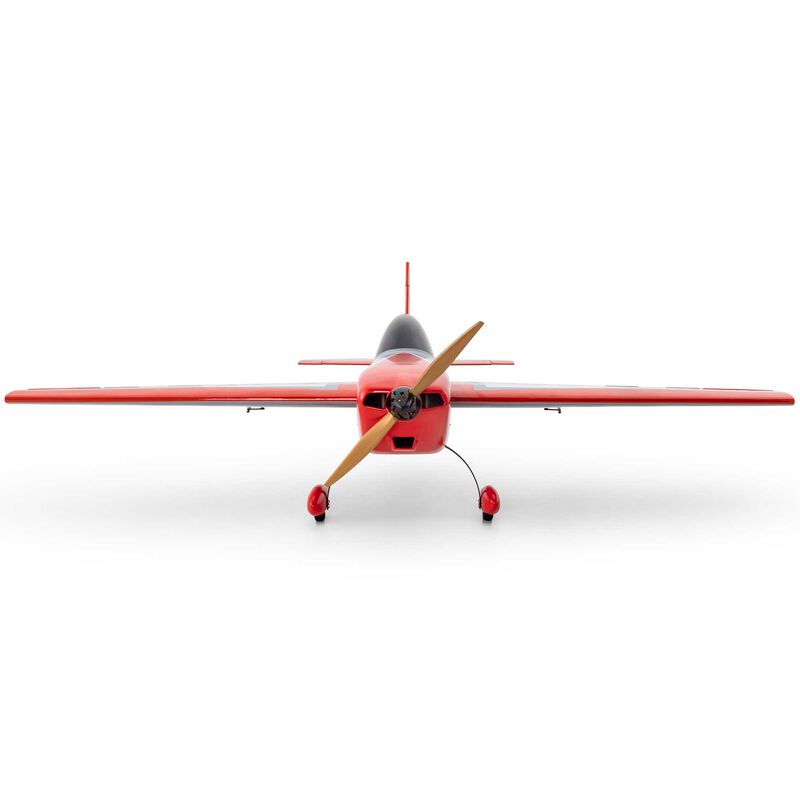

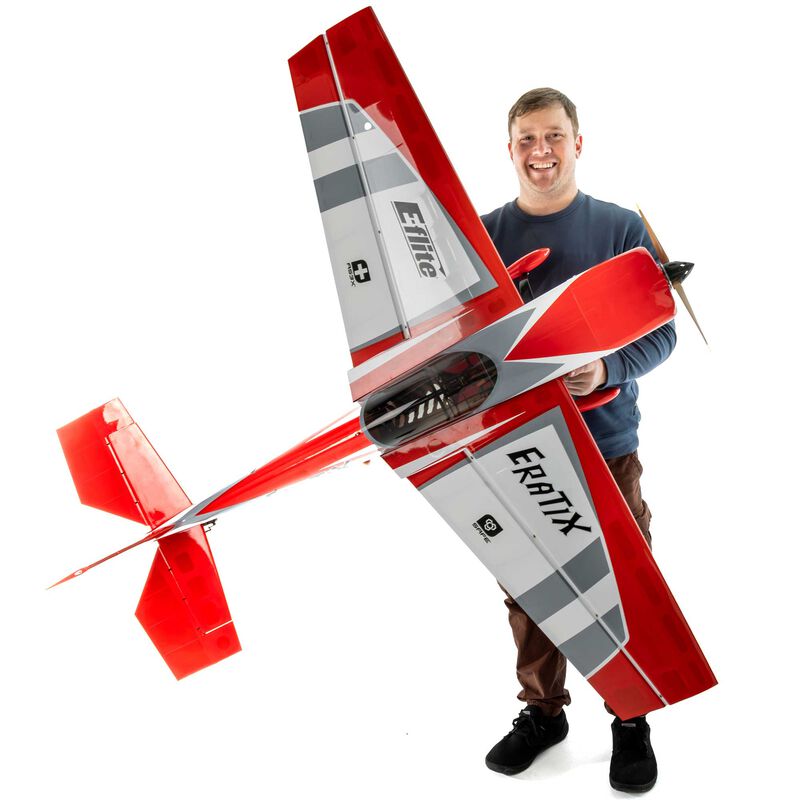

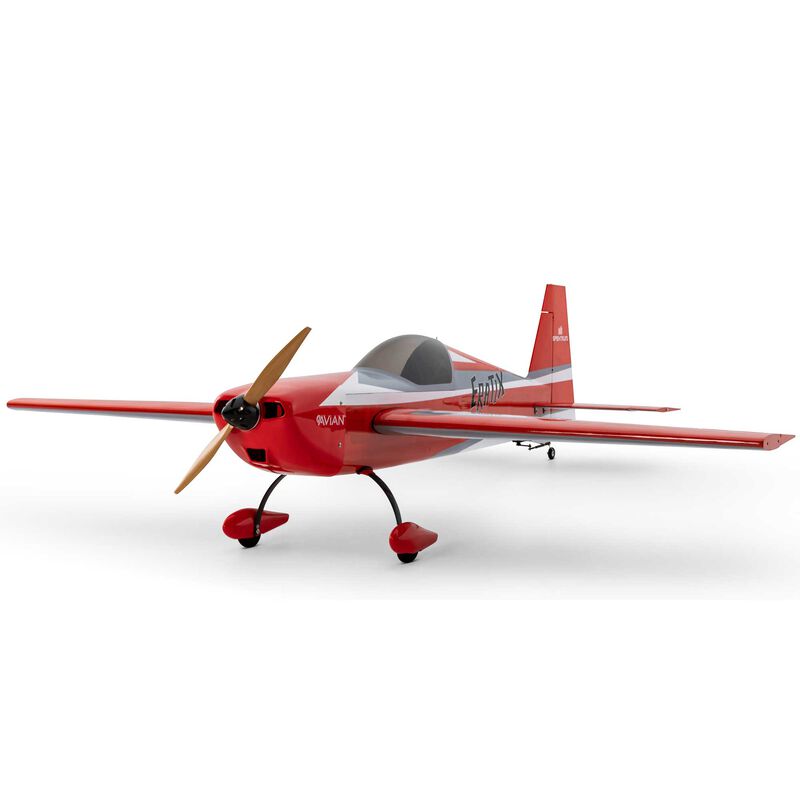

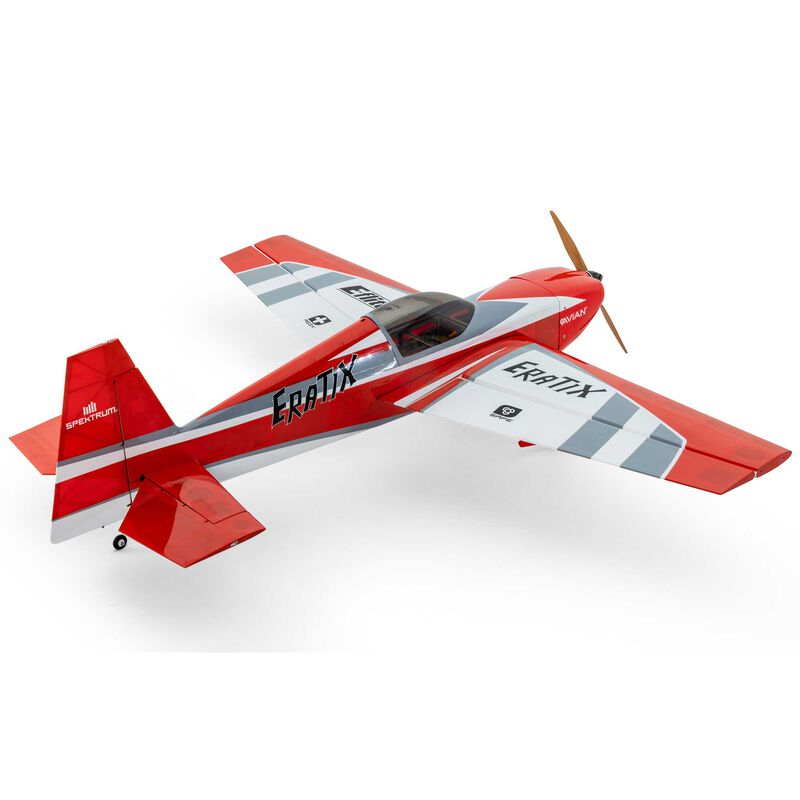

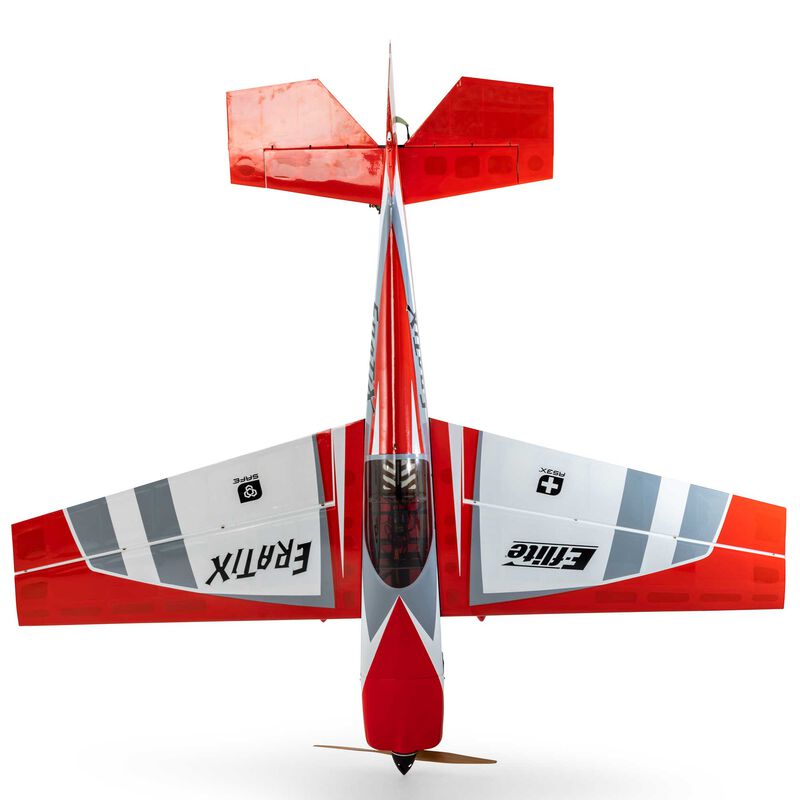

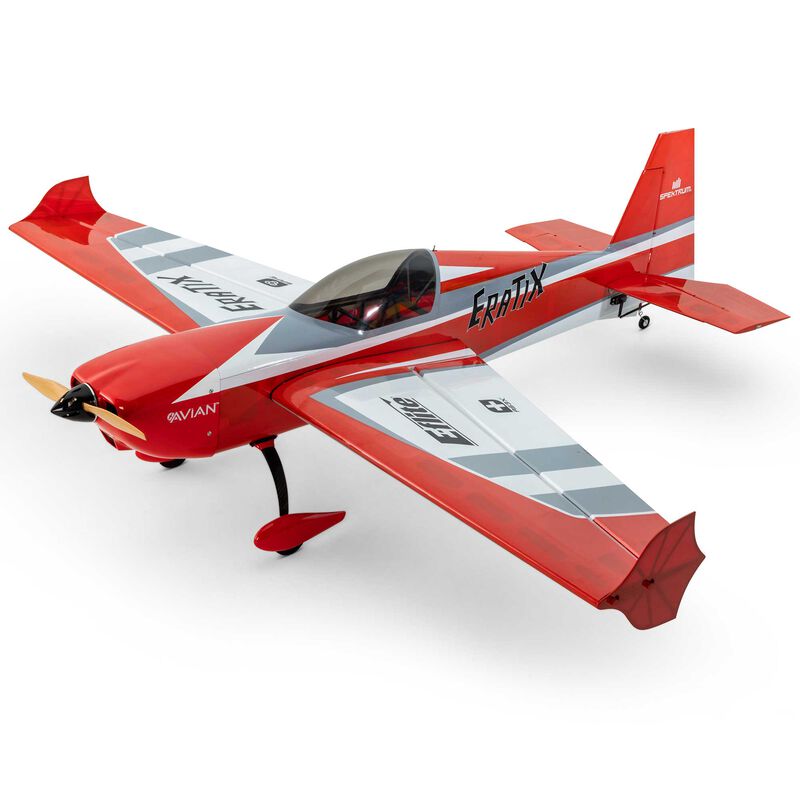

Eratix 3D SWS 1.6m (64 Inch) BNF Basic by Eflite

• Based on the design of the popular Eratix 3D FF (Flat Foamy) 860mm model but in a larger size with unique performance and capabilities
• A great first-ever “wood” and everyday sport flying to 3D aerobatic capable model for intermediate to experienced pilots
• Strong and stiff – yet lightweight and long-lasting – built-up wood and carbon fiber reinforced airframe finished with genuine UltraCote film covering

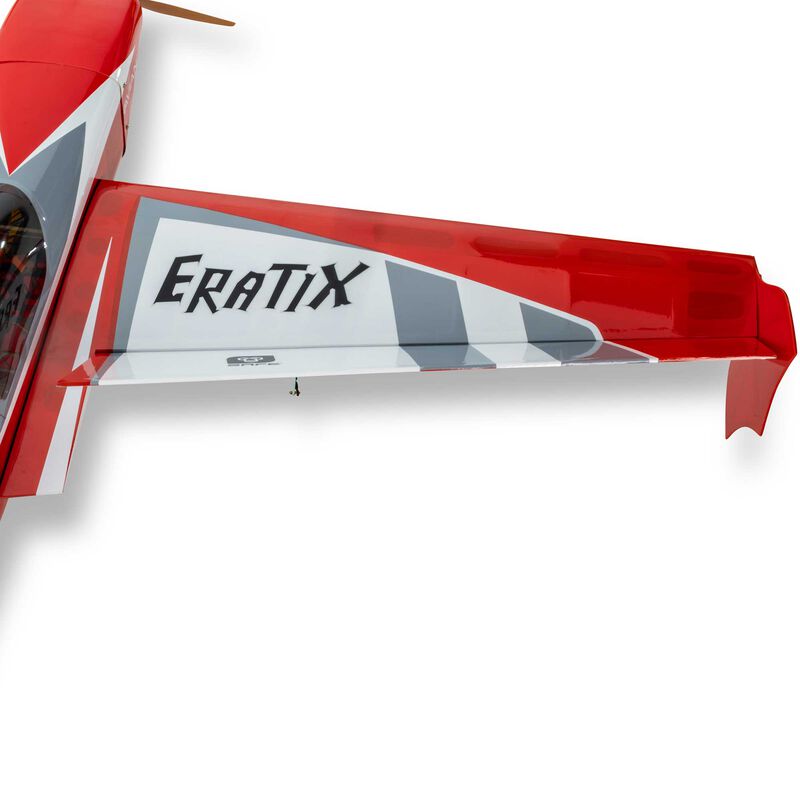

• Two-piece wing with padded roots that installs without fasteners or tools makes it easier to store and transport

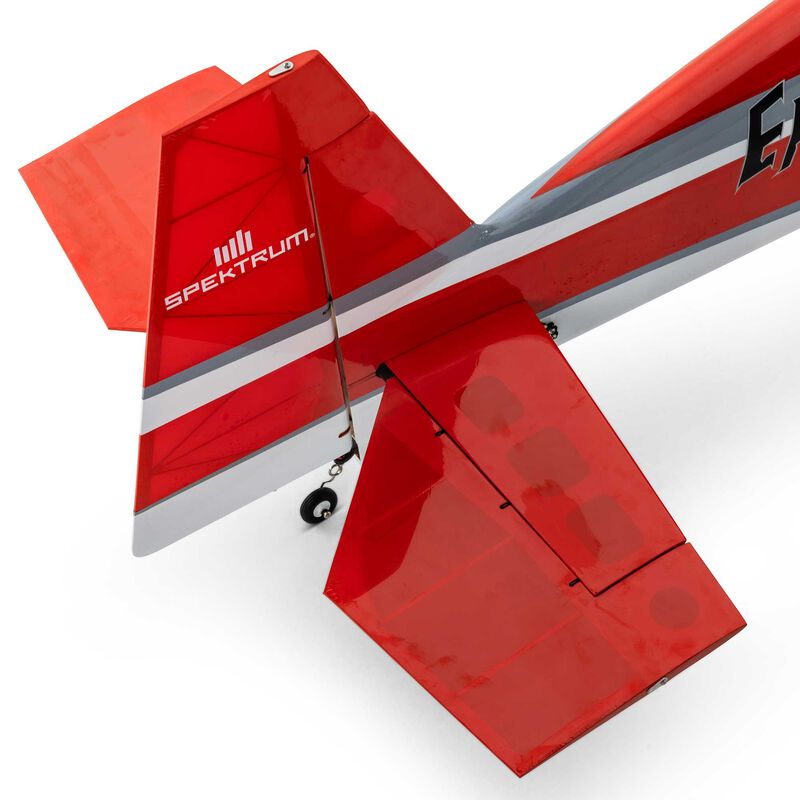

• Pin hinges for the ailerons, plus captured pin hinges for the elevator and rudder for easy control surface installation or replacement
• Fast and easy bolt-together assembly – no glue or special tools required

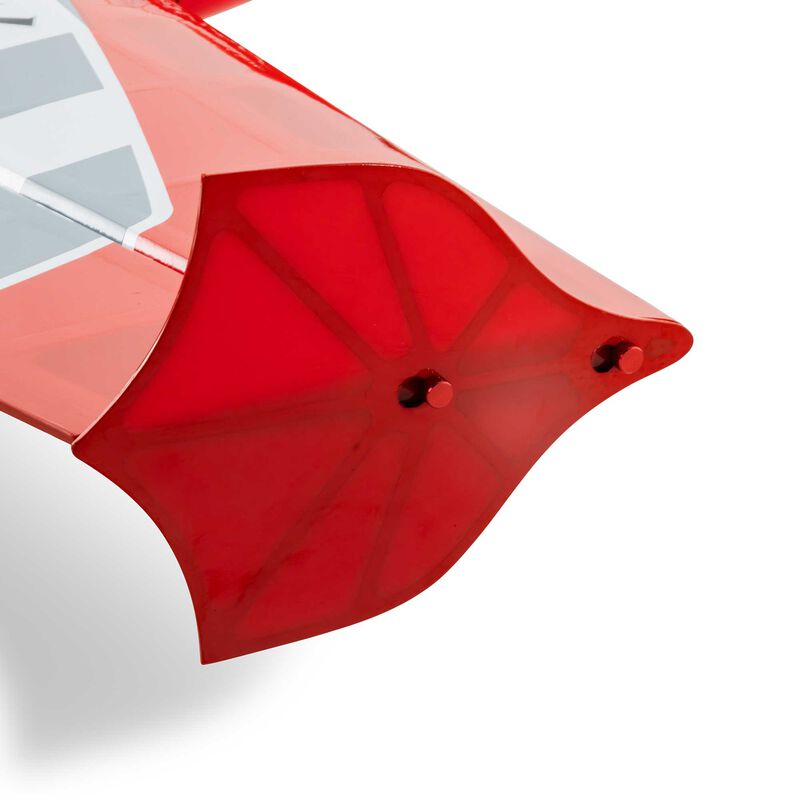

• Includes optional-use Side Force Generators (SFGs) for even better aerobatic capabilities

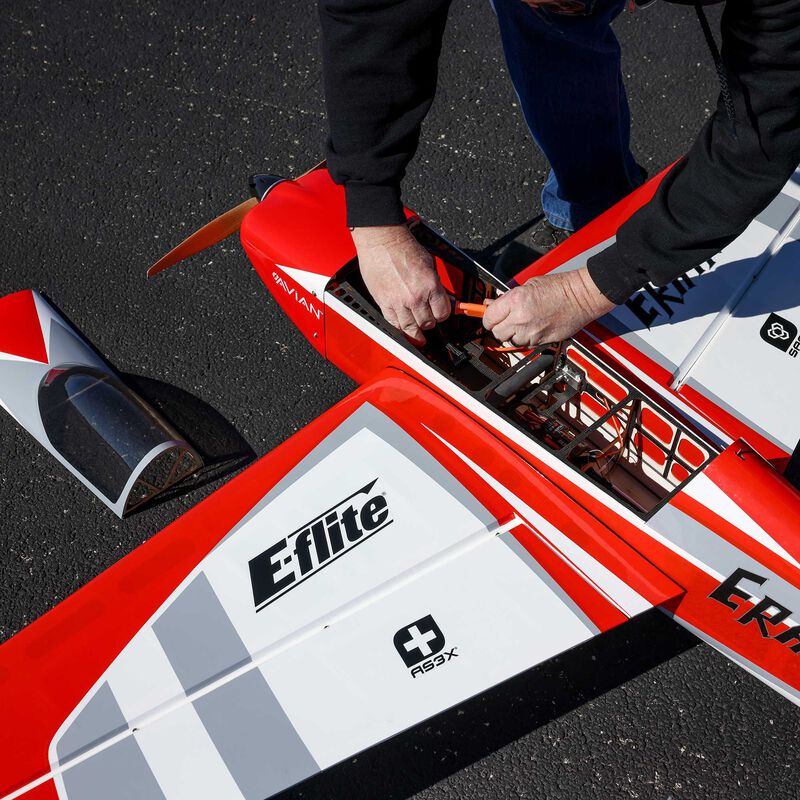

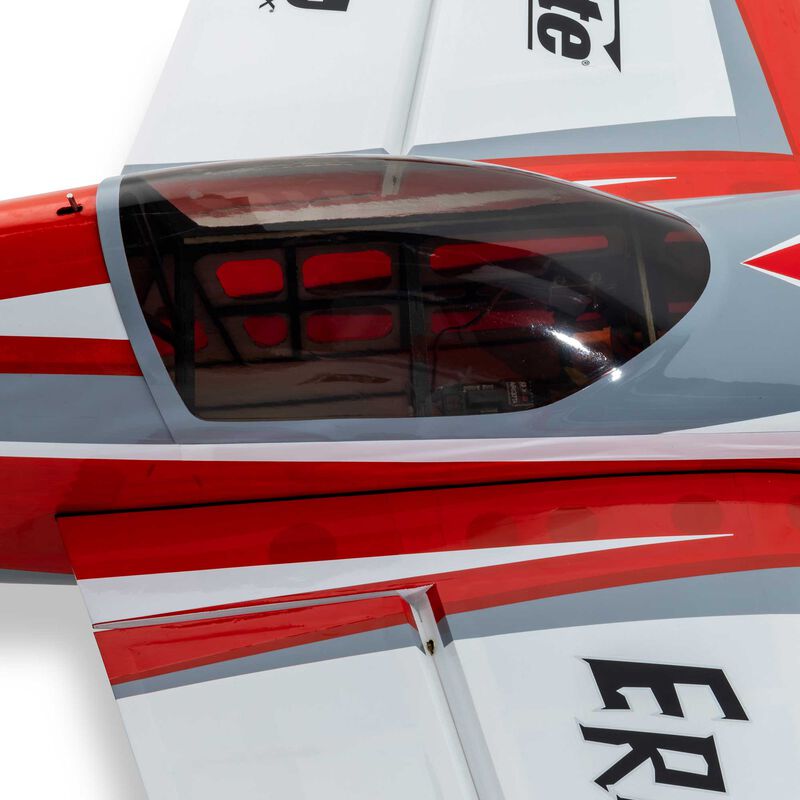

• Large and top-mounted canopy hatch for easy access to the battery compartment
• Four durable, factory-installed high voltage metal-geared and digital Spektrum mini servos
• Spektrum Avian 5055-500Kv brushless motor compatible with 6S batteries

• Popular and common 3200–7000mAh batteries deliver a wide range of performance and flight times
• 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, current and other data via compatible receivers and transmitters
• Optional-use motor reversing for special ground handling and other capabilities including shortened rollouts after landing
• Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
• Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
• Easier to fly with innovative and optional-use SAFE Select flight envelope protection
• The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology specifically tuned for 3D/XA (eXtreme Aerobatic) performance without compromising feel

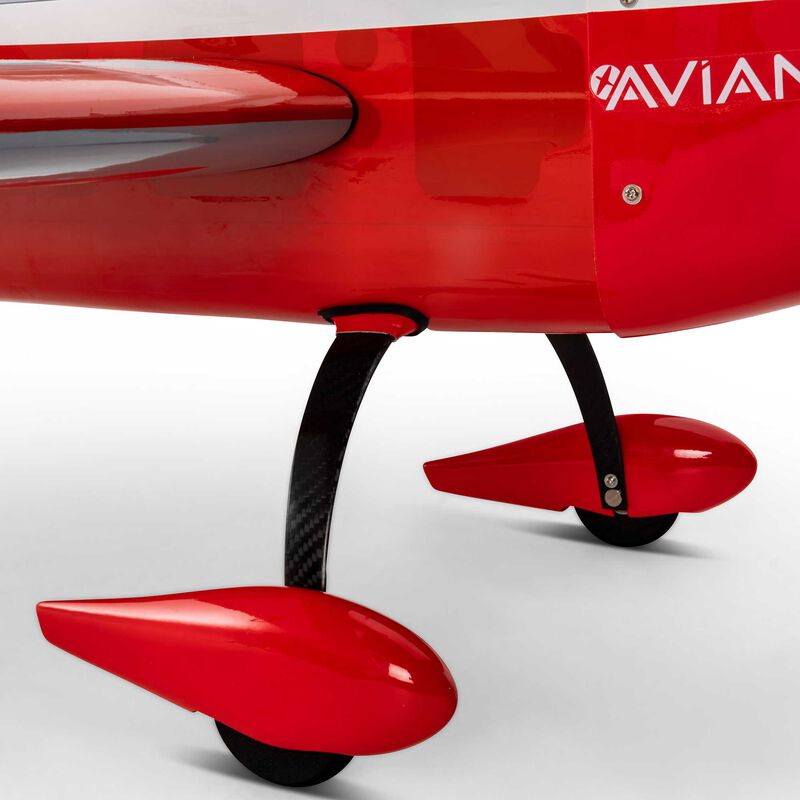

• Carbon fiber landing gear with optional-use wheel pants
• Optional pilot figure that’s painted to match (sold separately)
• Includes standard wing bag

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite Eratix 3D FF (Flat Foamy) 860mm, Sportix 1.1m, Timber X 1.2m, Extra 330 SC 3D 1.3m, or other similar class models before attempting to fly the BNF Basic version Eratix 3D SWS 1.6m (64”).

Bind-N-Fly® Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly® (BNF®) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Flexible Power

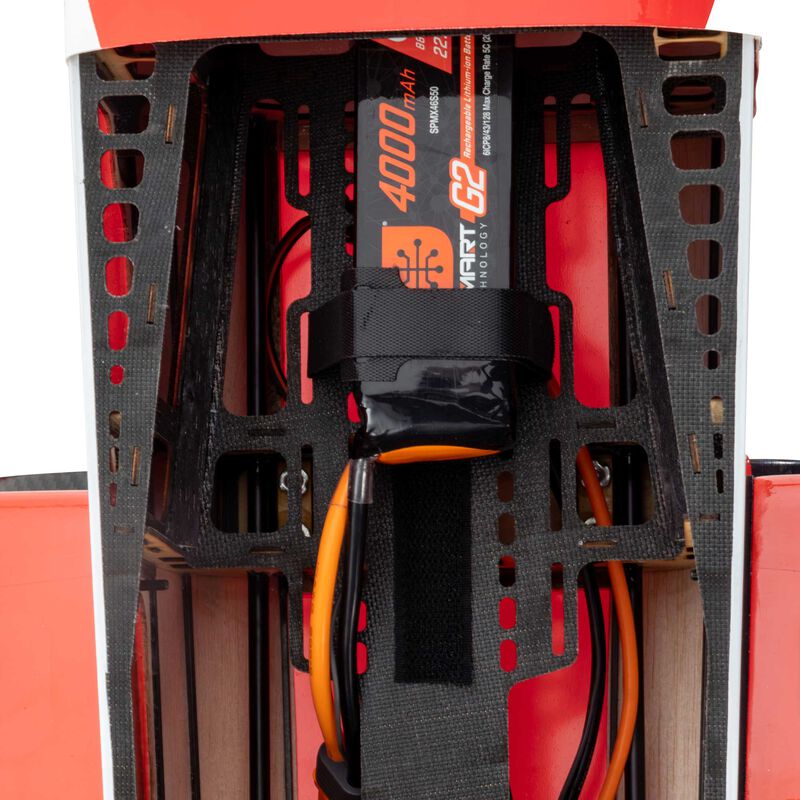

The factory-installed Spektrum™ Avian™ brushless outrunner motor is compatible with 6S 3200–7000mAh batteries to offer a wide range of flight times and performance – from sport flying and basic aerobatics to hovering and unlimited vertical performance. Plus, the large and convenient top-mounted canopy hatch makes it easy to install and remove batteries.

Exclusive Technologies

The BNF Basic version of the Eratix 3D SWS is equipped with exclusive Spektrum AS3X+ and SAFE Select technologies. Enhanced AS3X+ technology works behind the scenes to smooth out the effects of wind and turbulence and deliver an even more locked-in feel than standard AS3X, which makes it seem like you're flying an even larger airplane. It’s also been specifically tuned for 3D/XA (eXtreme Aerobatic) performance without compromising feel. Optional-use SAFE Select offers pitch and bank angle limits and automatic self-leveling that can be turned on and off at the flip of a switch! If you don't want to enable the SAFE Select features, simply bind the receiver normally, and only AS3X+ will be active. The receiver is also loaded with a Smart Transmitter File (STF) that allows you to import all the settings for NX and iX series transmitters during the binding process to be ready to fly in less time than ever!

Smart Technology

The Eratix 3D SWS is equipped with an exclusive Spektrum Avian Smart ESC that provides a variety of real-time power system-related telemetry data including overall battery voltage and more – with both Smart and non-Smart batteries – via compatible receivers (including the AR637TA+ installed in the BNF Basic version) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (5–6+ channel transmitter required for reversing).

Easy Assembly

The BNF® Basic version Eratix 3D SWS 1.6m (64”) arrives mostly factory-assembled with the power system, servos, and receiver installed. That includes four high-voltage digital and metal-geared Spektrum A179 and A180 mini servos. The two-piece horizontal stabilizer bolts into place, and the elevators and rudder install with captured pin hinges, so no glue is required for assembly and you be flying in less time than any other model in its class! The ARF version is ready to fly after typical final assembly, power system, and electronics installation.

Wood Airframe

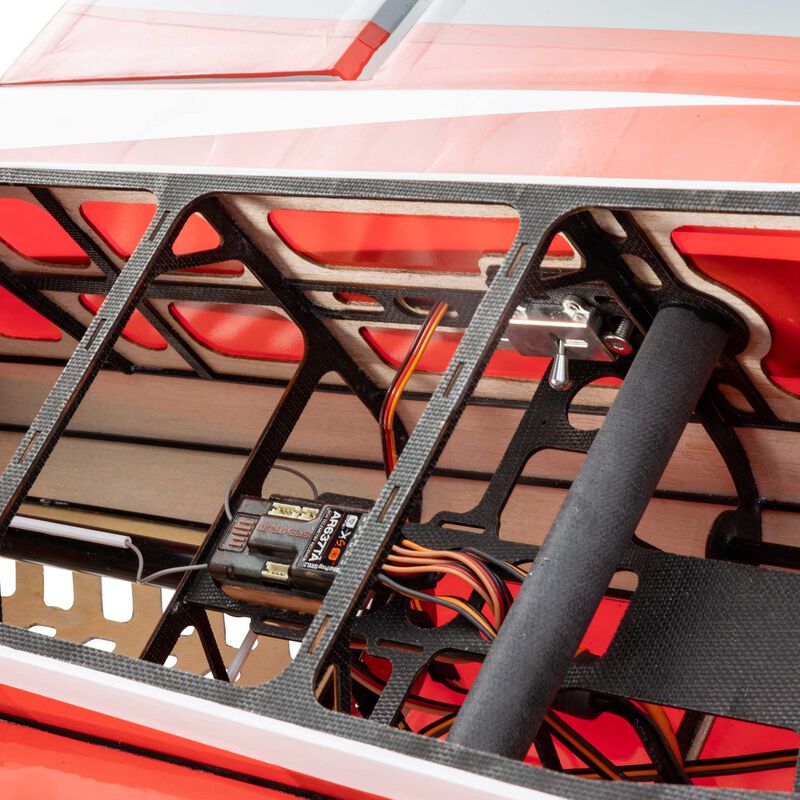

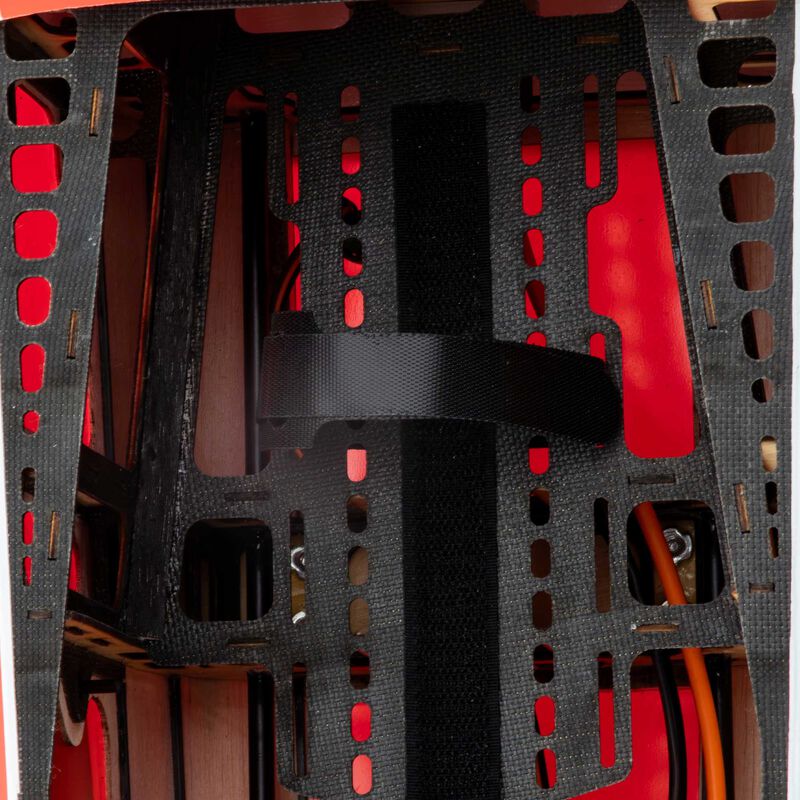

The built-up balsa and lite-ply airframe with carbon fiber reinforcement throughout is lightweight yet stiff and strong to provide a unique and enhanced flying experience compared to foam models. Best of all it arrives mostly factory-assembled and finished in genuine UltraCote® film covering. In the unfortunate event you damage any airframe parts or components and can’t repair them, a full line of replacement/spare parts is readily available.

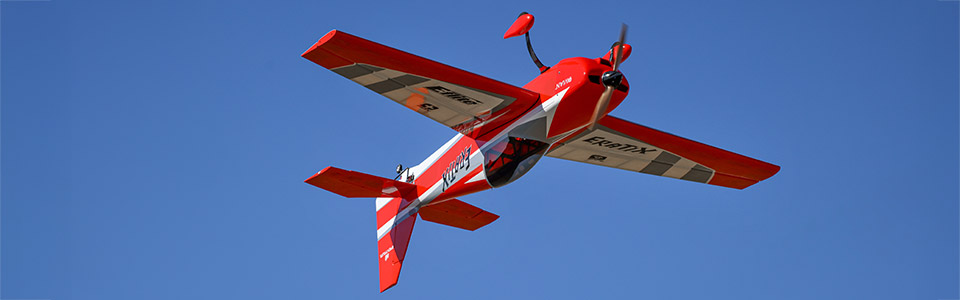

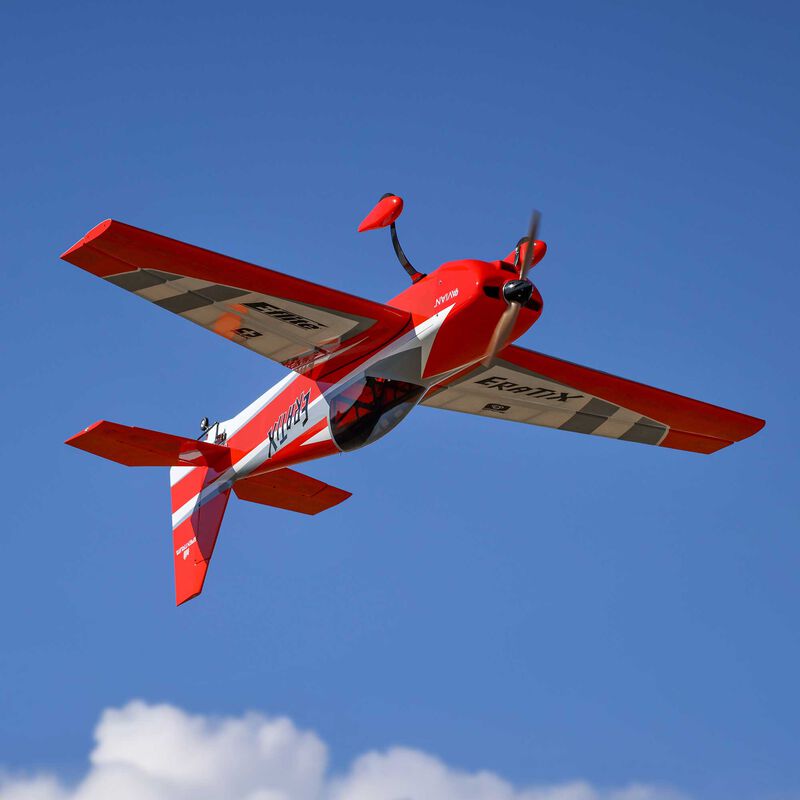

Wide Flight Envelope

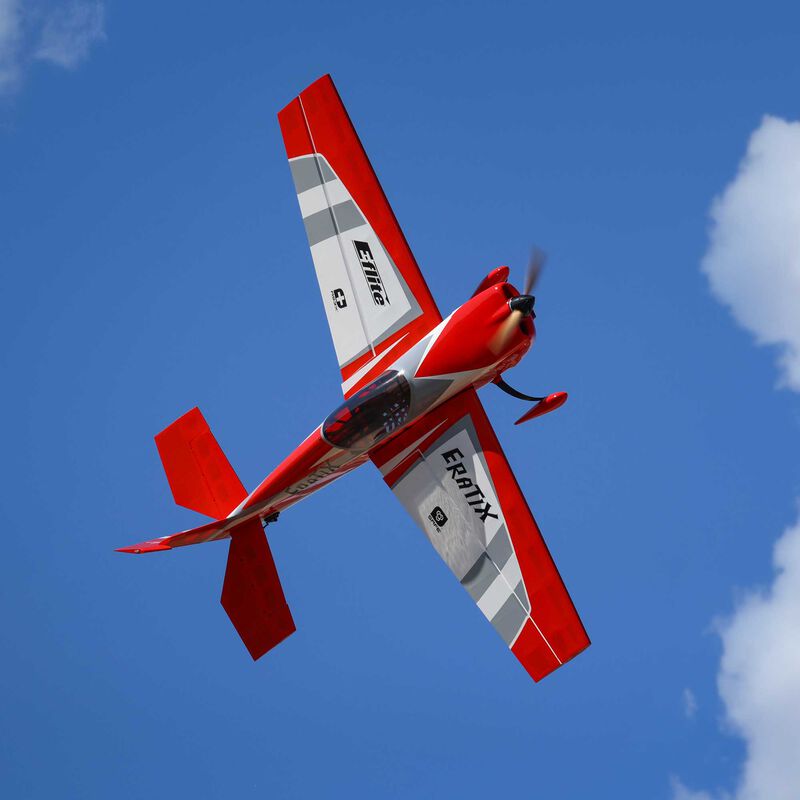

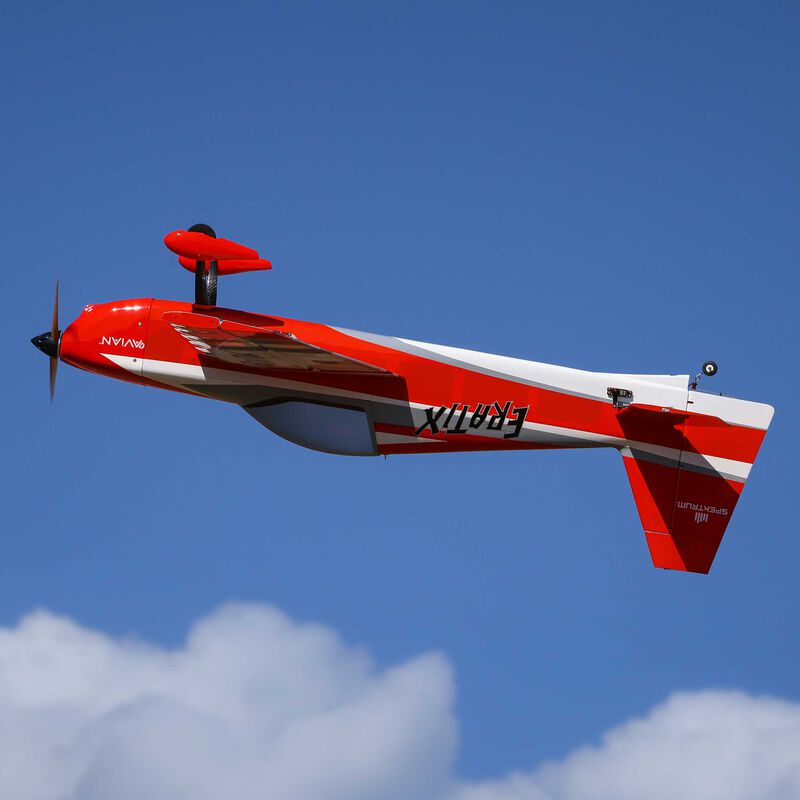

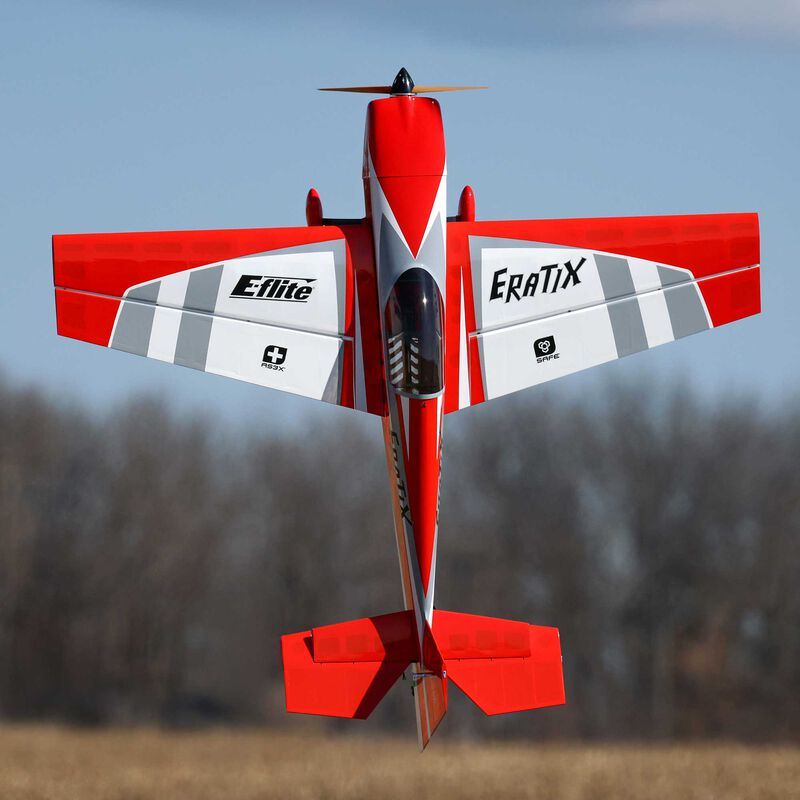

Like other similar class models, the Eratix 3D SWS is capable of slow cruising, smooth sport flying, basic aerobatics, and even aggressive 3D flying – all in the same flight! It offers a truly “mild to wild” flight experience that intermediate to experienced pilots will appreciate and enjoy.
