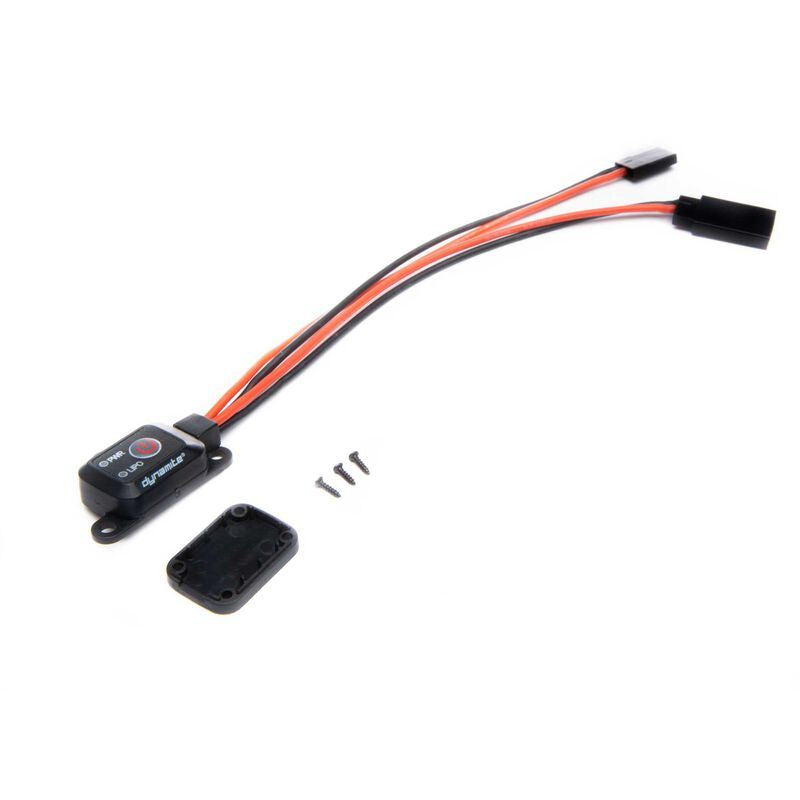

Dynamite Electronic Switch

This small, MCU-controlled POWER SWITCH uses a simple push button to eliminate problems associated with
the intermittent contact of an ordinary mechanical switch. The sealed plastic unit can be mounted to your model’s
transponder mount or another easy-to-reach spot using double sided tape. An additional bottom mount is included.
The switch features a LiPo mode, which will auto detect low LiPo voltage and cut off power to protect your LiPo
from over discharging. If other safeguards are in place, this can be turned off when using a NiMH/NiCd battery. The
power switch also indicates remaining battery capacity

NiMH/NiCd Battery Pack
1. To turn ON NiMH/NiCd, press and hold the button
for 1 second. The PWR LED will turn on.
2. To turn OFF, press and hold the button until all
LEDs turn off.
Tip: The PWR LED displays the remaining battery
capacity when switched on.
Remaining Battery Capacity
Green 80–100%
Orange 60–79%
Red 20–59%
Red Blinking <20%

LiPo Battery Pack
1. To turn ON NiMH/NiCd, press and hold the button
for a minimum 3 seconds. The PWR LED and LiPo
LED will turn on.
2. To turn OFF, press and hold the button until all
LEDs turn off.
Tip: The PWR LED displays the remaining battery
capacity when switched on.
Remaining Battery Capacity
Green 80–100%
Orange 60–79%
Red 20–59%
Red Blinking <20%

DYNR0100 SPECIFICATIONS
Current: 10A
Battery Mode: NiMH/NiCd and LiPo
Low Voltage Protection: 6.2V (LiPo mode only)
Weight: <7g
Operating Temperature: 0–50°C
Input Voltage: 4–12V
