Description
Description
x

EA V3 FEATURES:

  • New appearance,new design all parts,parts strength and heat dissipation channel to further enhance.
  • With a wider arc magnet,Japanese 0.20mm silicon steel laminiation,providing strong torque.
  • Rotor dual balancing process,NMB bearings,smooth acceleration and deceleration,can bear a higher speed.
  • It adopts 220-class enamelled wire and the high-temperature epoxy,with a five-star overload resistance grace.
  • Multi-purpose design to support both-end installation namely: Firewall Front installation(default) and firewall back installation.
  • For application level optimisation of KV value, avoid complex overlap

SPECIFICATION

Motor Name XM6352EA-10 V3
KV 560
Weight (g) 515

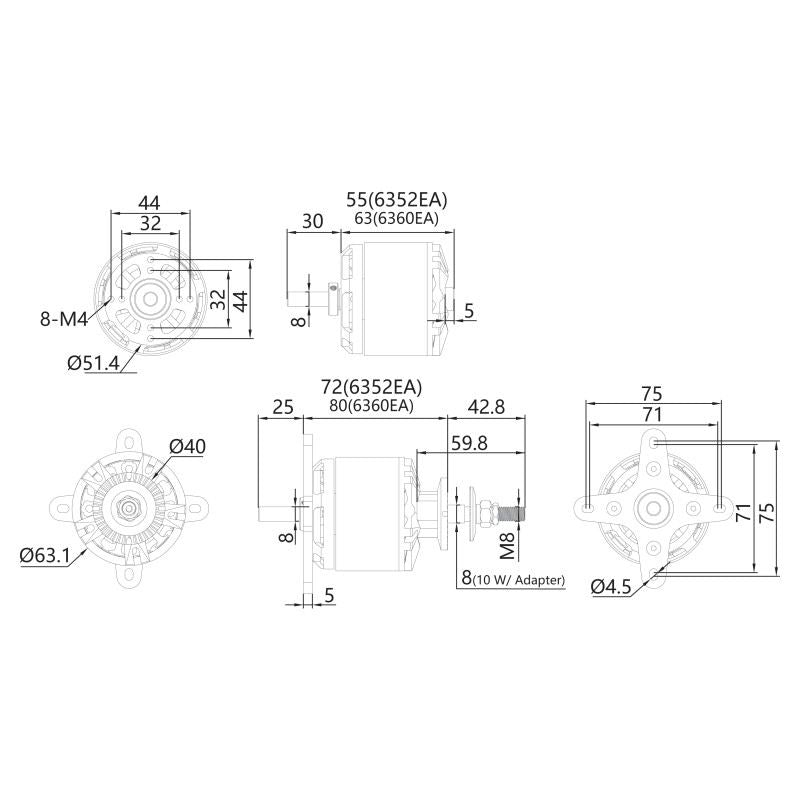

Dimensions (D x L) (mm) 63.1 x 55
Diameter of Shaft (mm) 8.0
Spec. of Mounting Holes 4-M3, 32/32 4-M4, 44/44
Input Connectors DB4
Dimensions of Stator (mm) 5322
Slots & Poles 12N14P
Ri(mOhm) 7.4
Io@10V (A) 3.7
No. of Cells (LiPo) 5..61
Efficiency Current (A) 60
Burst Current (15S) (A) 120
Peak Power (15S) (W) 2880
Peak Torque (N-M) 2.56
Recommended ESC Summit 120
Recommended Propeller 5S: 15 x 6E, 16 x 8E
6S1: 14 x 6E, 15 x 8E2
Application 125E, .95 - .120 2-Stroke up to .140 4-Stroke

1 Suggested working voltage (NOC)

2 Good throttle management needed
