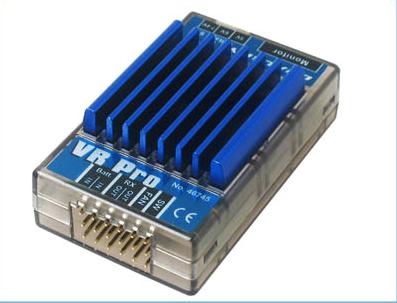

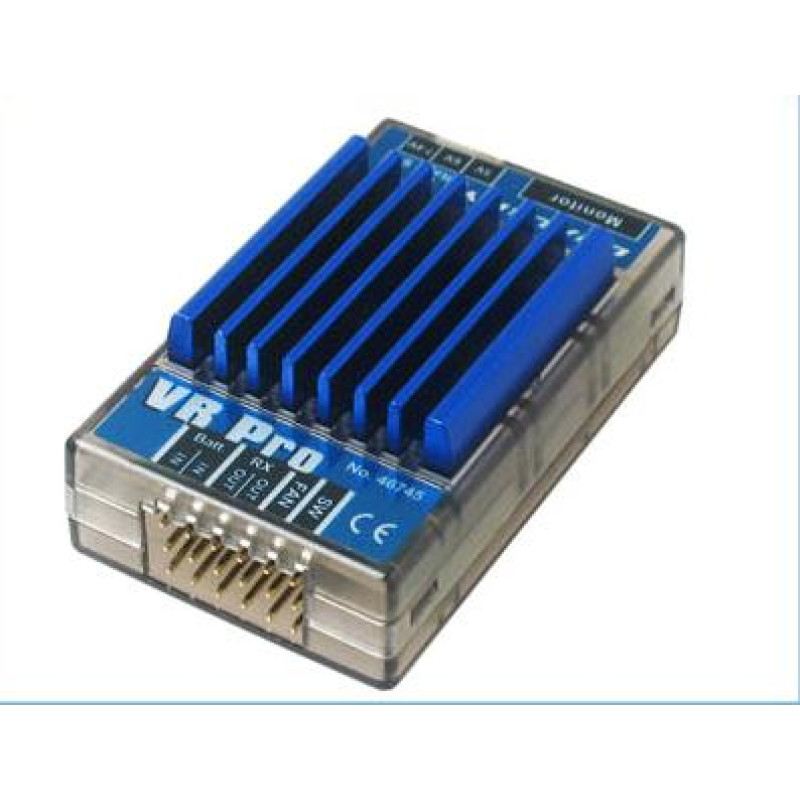

Dual Sky VR Pro 10A Linear Voltage Regulator 2S Lipo In, 5, 6 or 7v Output

Design Features

• Compact Design: Miniaturized layout with horizontal row input & output ports for easy plug-and-play.

• Voltage Monitoring: Built-in tri-color input voltage monitor with low voltage memory function.

• High Voltage Support: Compatible with HV servos (7.4V); output voltage is switchable.

• Switch Compatibility: Includes FSS-4 lightweight switch (#46814); also supports FSS-3 failure safety switch with status indicator (#46813).

• Cooling Options: Equipped with a heat sink; optional external cooling fan (#46816) can be connected.

• High Servo Support: Supports up to 6 pcs of 30kg digital servos.

• Heavy-Duty Application: Suitable for large model aircraft up to 8kg, such as 50cc gasoline-powered aircraft.

Electrical Features

• Linear Regulator: No interference, low ripple.

• Double MosFET Output: Independent linear control IC with high output current capability.

• Efficient Heat Dissipation: Large heat sink for excellent thermal performance and high overload capacity.

• Precise Voltage Control: Built-in MCU accurately manages FSS-3 and internal voltage.

• Fail-Safe Design: Ensures continuous, non-stop operation.

• Low Dropout Design: Maximizes cell capacity usage, especially in high-voltage (HV) mode.

• SMT Process: Ensures consistent, high-quality manufacturing.

• Premium Components: Input and output ports use high-quality tantalum capacitors.

• Factory Tested: Assembled at Dualsky’s Shanghai facility and fully tested before dispatch.
