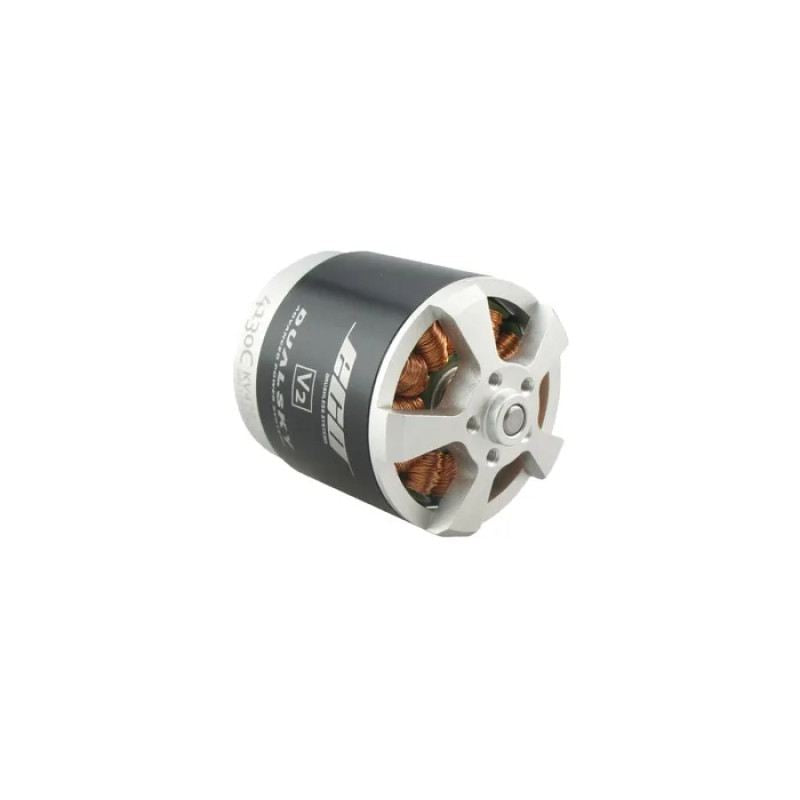

Dual Sky ECO 4130C 375kv 1920w Brushless Outrunner Motor 380g 17x10 - 17x12E

Dualsky ECO 4130C 375kv Brushless Motor

Dualsky ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This ECO 4130C brushless motor is designed to be the electric equvalent of an 0.80 - .110 4-stroke engine.

Features

• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased but it did not increase the weight.
• High strength and high toughness main shaft (HRC48)
• The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
• High temperature resistant, high toughness epoxy glue the impact resistance increased about 10G, and the survival ability is greatly improved.
• High precision double sides dynamic balancing
• Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
• Optimised heat dissipation ways
• Motor working life significantly increased by 50% (same load and working environment)
• Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
• Up to 500V insulation level. The stator is coated with insulating coating and completely insulated after winding.
• Waterproof splash. Rustproof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and no problem working in wet or rain environment.

Product Specifications

• KV: 375
• Turns: 7
• Weight: 380g
• Size (D x L): 49.5 x 55.2
• Slots & Poles: 12N14P
• Ri (mOhm): 25.2
• Io @ 10V (A): 1.1
• No. of Cells (LiPo): 6
• Max. Efficiency Current (15S) [A]: 48
• Max. Burst Current (15S) [A]: 80
• Max. Power (15S) [W]: 1920
• Max. Torque: 2.45Nm
• Shaft Diameter: 6
• Mounting Holes Pitch: 30/30
• Input Connectors: GC4.0
• Recommended ESC: XC8018BA
• Propeller: 17x10E, 17x12E
• Class: 0.80 - .110 4-stroke
