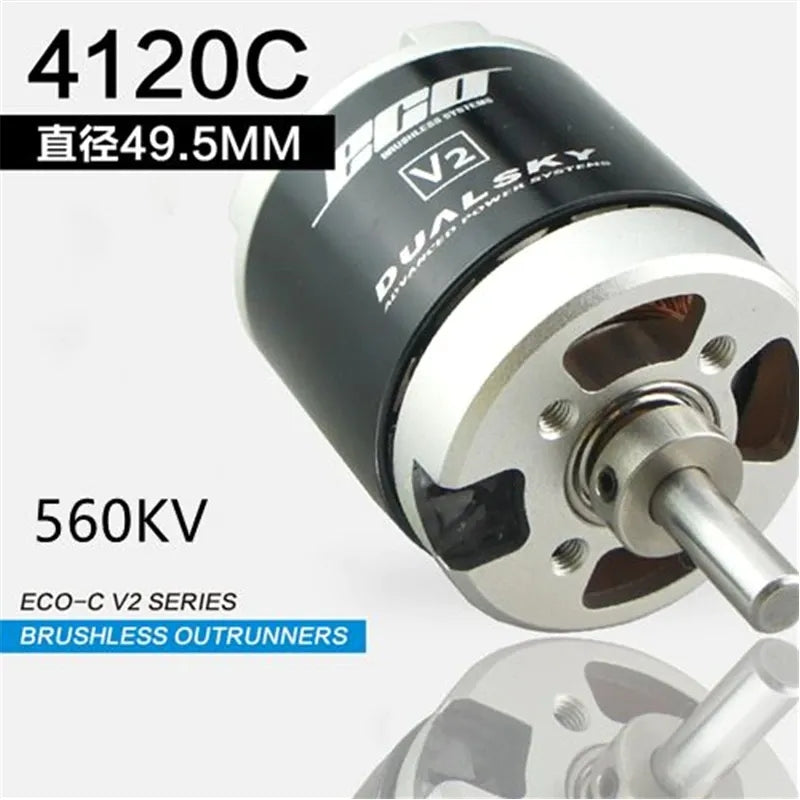

Dual Sky ECO 4120C 560kv 1400w Brushless Outrunner Motor 280g 16x8 - 16x9E Prop

Designed for use with sport or performance planes that require 0.65 - 0.70 4-stroke engines, the Dualsky ECO 4120C 560kv Brushless Motor is powerful yet very light and a solid choice for your next build.

Features

• Classic Dualsky five-spokes back cover with simple lines
• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased without increasing the weight
• High strength main shaft
• High temperature resistant, high toughness epoxy glue
• High precision double sides dynamic balancing
• Waterproof splash (ball bearing not waterproof)
• Rust-proof main shaft

Product Information

Dualsky motors are manufactured to high tolerances using high-quality materials. Whether you fly in competitions or just love free flying, the DUALSKY C-Series V2 motors will help you keep your all up weight down and your thrust to weight ratio up.

The Dualsky ECO 4120C 560kv Brushless Motor comes with motor mounting screws, an aluminium motor mount, female bullet connectors for the ESC and a bolt-on prop hub with a 6mm shaft.

Specs

KV 560

Turns 7

Weight 280 g

Dimensions (D x L) 49.5 x 45.2 mm

Slots & Poles 12N14P

Ri (mOhm) 22

Io @ 10V 1.3 A

No. of Cells 5 - 6

Max. Efficiency Current 42 A

Max. Burst Current (15S) 70 A

Max. Power (15S) 1400 W

Max. Torque (N*M) 1.43

Shaft Diameter 6 mm

Mounting Holes Pitch 30/30

Input Connectors GC4.0

Recommended ESC XC8018BA

Propeller
5S: 16x9E, 15x8E
6S: 14x6E, 13x8E

Class .65-.70 4-Stroke
