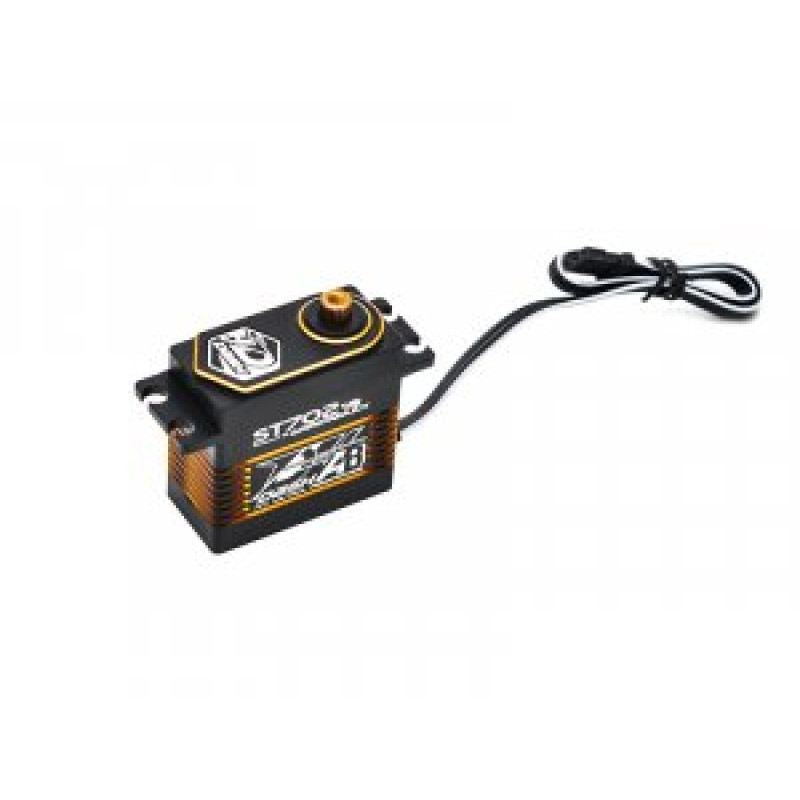

ArrowMax ST702 Super Torque HV Servo A8 V2 25kg, 0.08sec @ 7.4v, 72g, 25T Spline

The ST702 high voltage V2 servo is a must for 1/8th off-road and on-road scale cars. This is a high quality all metal cased servo that has titanium alloy and steel gears, has masses of torque, is very quick and has excellent resolution for smooth control inputs.

Features:

• SSR mode compatible for Super fast and smooth steering response

• High voltage compatible Servo

• Suitable for large model aircraft and 1/8 scale vehicles
 • All aluminum housing for excellent durability
 • Durable titanium and alloy gears
 • Heat resistant brushless motor

 Specification:

Aluminum Case (Upper,Middle,Bottom)

SSR

Operating Voltage: 6.0~8.4V

Torque(6.0V): 26.0kg-cm (361.1 oz/in)

Torque(7.4V): 30.0kg-cm (416.6 oz/in)

Torque(8.4V): 35.0kg-cm (486.1oz/in)

Operating Speed: (6.0V) : 0.095sec

Operating Speed: (7.4.0V) : 0.075sec

Operating Speed: (8.4V) : 0.070sec

Operating Voltage : 6.0 ~ 8.4 DC Volts

Weight: 75g (2.65 oz)

Bearing Type: Ball Bearing x 2

Motor Type: Brushless Motor

Operating Temperature Range: -20 To +60'C Degree

Working frequency: 1520μs / 333hz

Dimension: 40.7 x 20.5 x 38.6 mm (1.60 x 0.81 x 1.52 in)
