BMS-620MG High Torque Servo (Metal Gear) 9.1kg / .15sec / 51g

BMS-620MG

Servos

Blue Bird

All our products are stocked locally in New Zealand.

To add this product to your wish list you must Sign In or Create an account

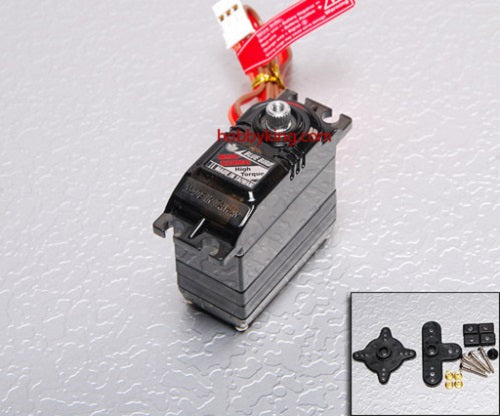

The servo comes with a servo accessory package and is made with a heavy duty servo case, the servo is designed for R/C high performance Car applications. Double ball bearing with flexible rubber waterproof, otherwise the output spline is same with Futaba 25 tooth.

This servo comes with JR/Hitec S Connector also known as a "Universal Connector". Even thought this servo comes with JR/Hitec S Connectors, this servo is electrically compatible with Futaba receivers.

Features:
• Metal gear
• Curve gear with smooth.
• Double M9.6 ball bearing (si-oil)
• 3 pole strong torque of motor with low signal affect and success get CE certification.
• Rubber fitting case for waterproof
• Same with Futaba 25 tooth spline
• Heavy duty servo case

Specs:
Weight: 51 grams / 1.78 oz
Dimensions: 40.5 x 20 x 42 mm / 1.60 x 0.78 x 1.62 inch
Torque: 4.8V: 9.1kg-cm , 126 oz-in
Torque : 6.0V: 10.6kg-cm , 144 oz-in
Speed: 4.8V: 0.15sec / 60 deg at no load
Speed: 6.0V: 0.13sec / 60 deg at no load
Spline Count: 25
Type: Analog
Motor: Brushed


Product Id: BMS-620MG
