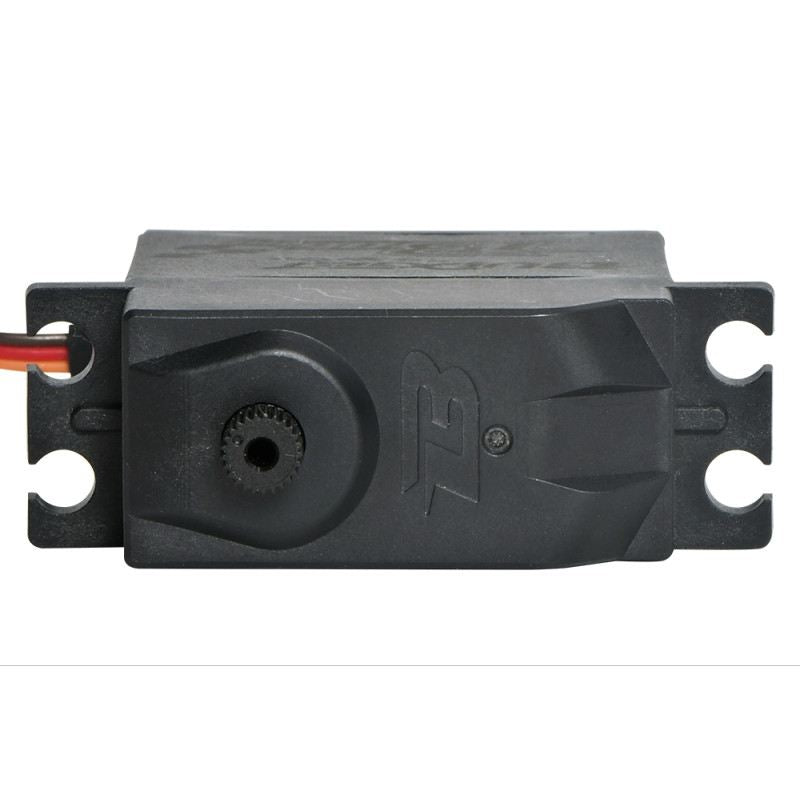

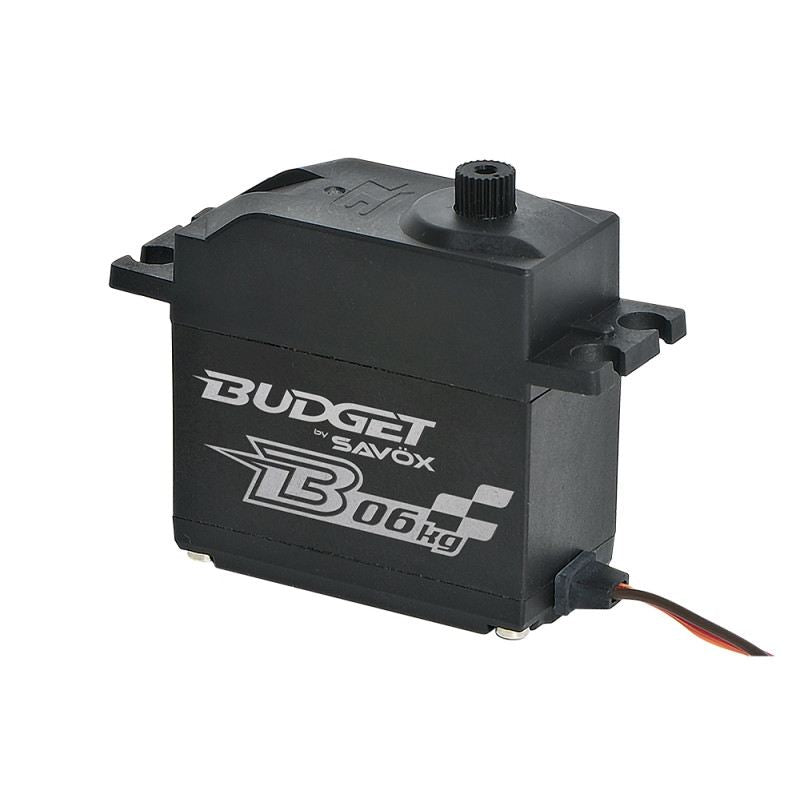

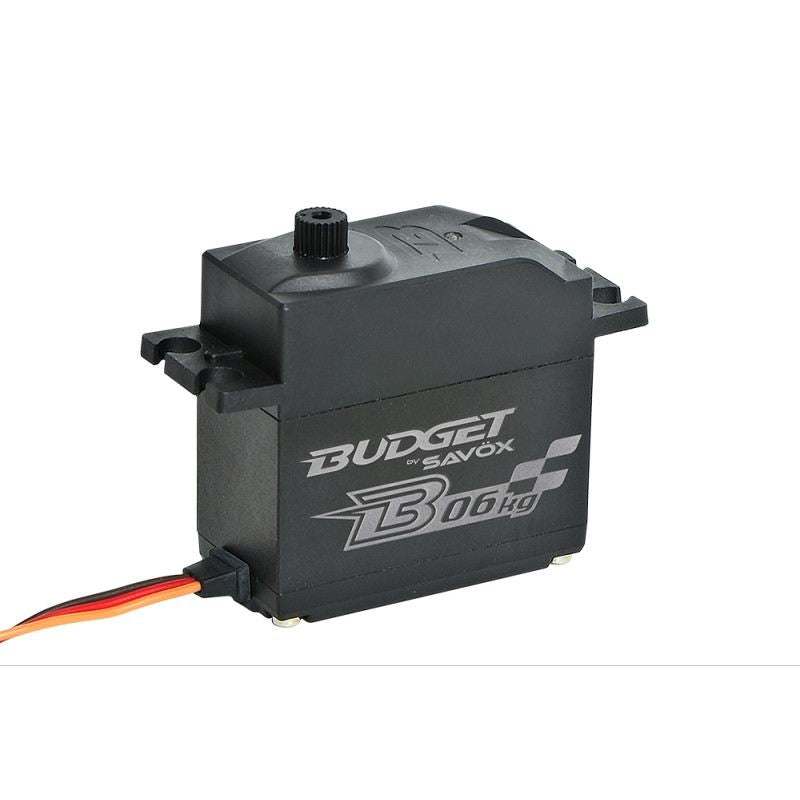

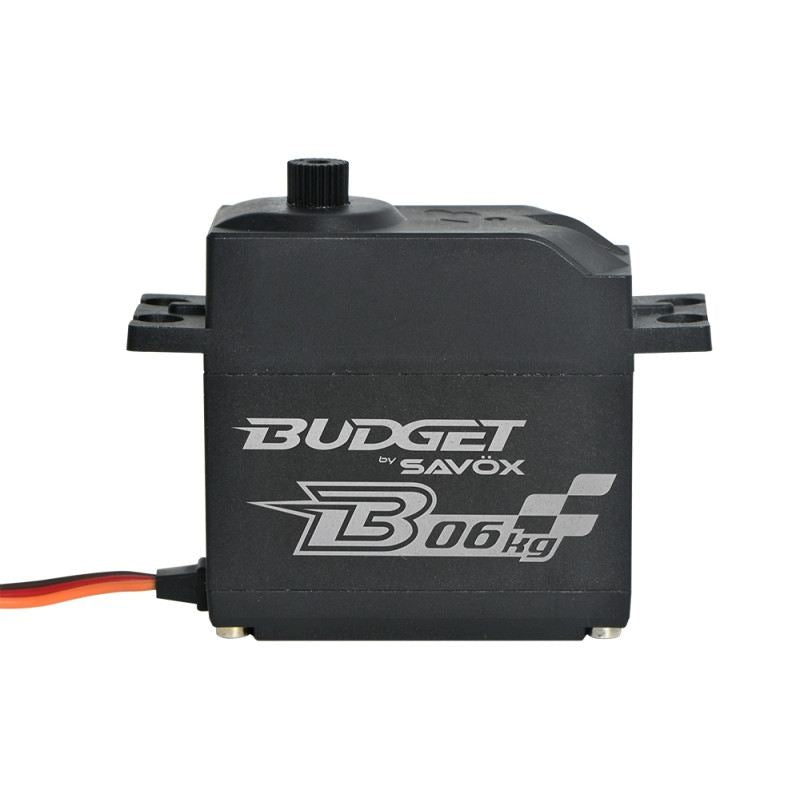

Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

Simple, reliable, and budget-friendly - the Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling...
Vendor: Savox
SKU: B-06KG
Availability: Out Of Stock
Product Type: Radio Control
$31.05
$31.05
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $31.05
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

Savox

Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

$31.05
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g
Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

Savox

Savox Budget Metal Gear Servo 6.5kg 0.14sec @6v 40.7x20x39.4mm 42g

$31.05
Shipping: Hamilton Warehouse
Description
Description
x

Simple, reliable, and budget-friendly - the Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling your first kit, these servos offer solid function at an accessible price.

Equipped with features like metal gears and smooth control response, Hobby Line servos are ideal for casual drivers, beginners, and weekend bashers. It's all about getting you driving with confidence – no stress, no fuss.



Full Specification

Line HOBBY LINE
Application CAR
Servo Size Standard
Operating Voltage 4.8V-6.0V
Speed @4.8V 0.14 s/60°
Torque @4.8V 4.2 kg/cm
Speed @6.0V 0.11 s/60°
Torque @6.0V 6.5 kg/cm
Amplifier Type Analog Controller
Motor Type DC Motor
Case Type Composite
Protection Dust Resistant

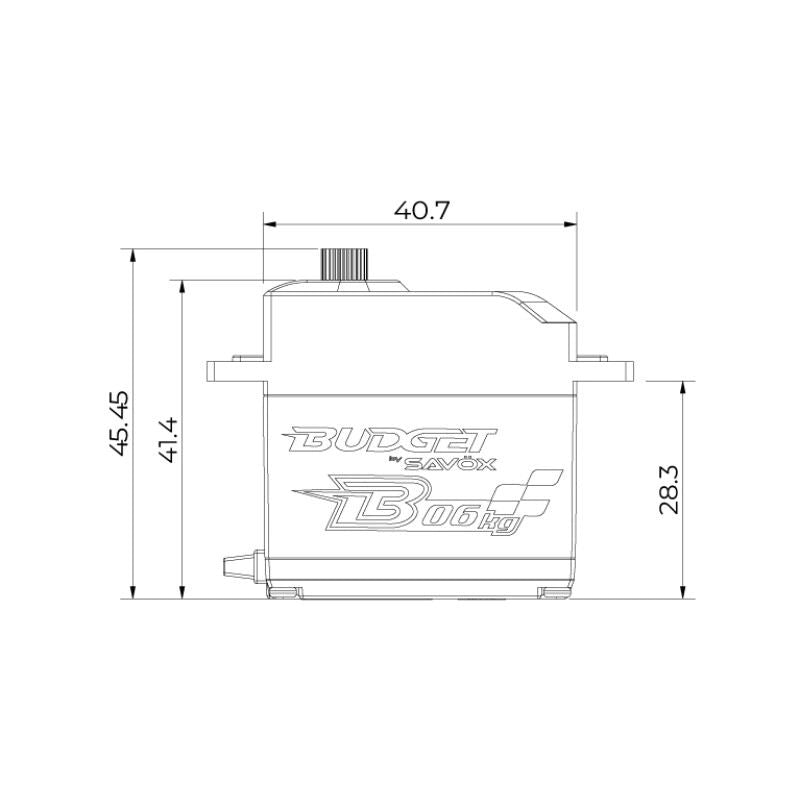

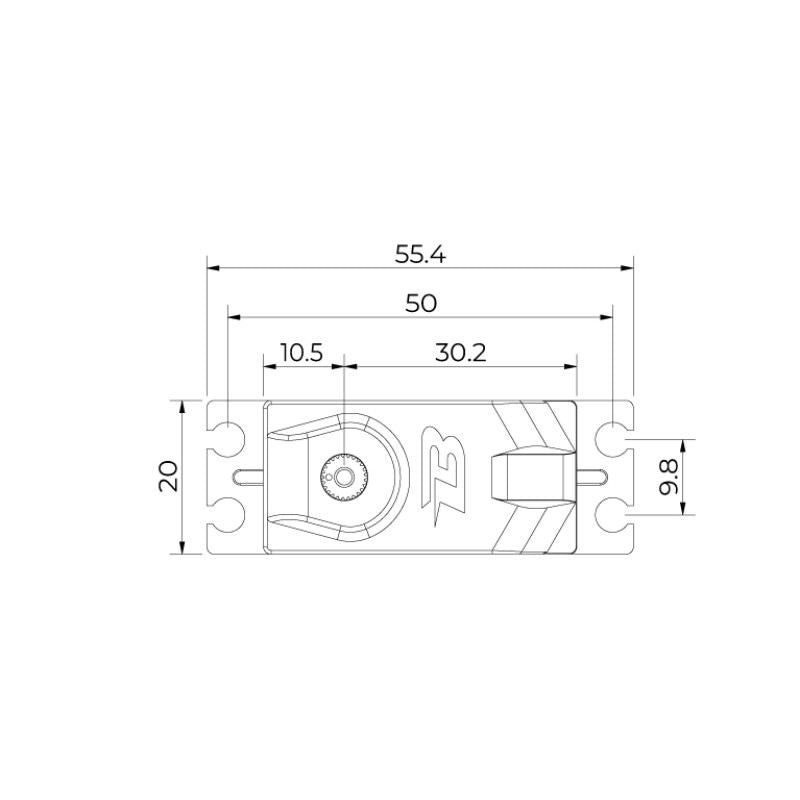

Dimensions (L x W x H) 40.7 x 20 x 41.4 mm
Weight 42 g

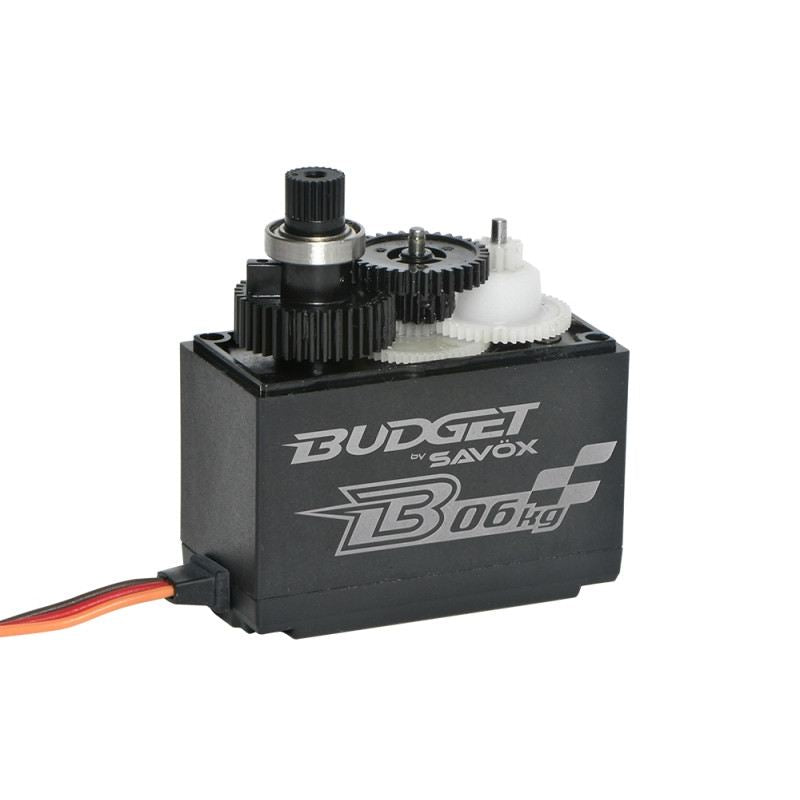

Gear Type Heavy-Duty Metal
Compatibility Normal
PCB Board UACB
Horn Gear Spline 25T(Φ6)
Rotating Direction Clockwise (when 1500→2000 µsec)
Max Travel ~164° (when 700→2100 µsec)
Operating Travel 120° (when 1000→2000 µsec)
Neutral Position 1500 µsec
Bearing 2x Ball Bearings
Potentiometer Contact Type Variable Resistor
Cable Diameter 26 AWG
Cable Length 250 ±5 mm
Connector JR Connector
Stall Current @4.8V 1300 mA
Operating Current @4.8V 180 mA
Stall Current @6.0V 1500 mA
Operating Current @6.0V 240 mA
Idle Current 6 mA
Dead Band Width 20 µsec
Frequency Range 50 Hz
Control System Pulse width modification
Operating Temperature -10°C to 50°C
