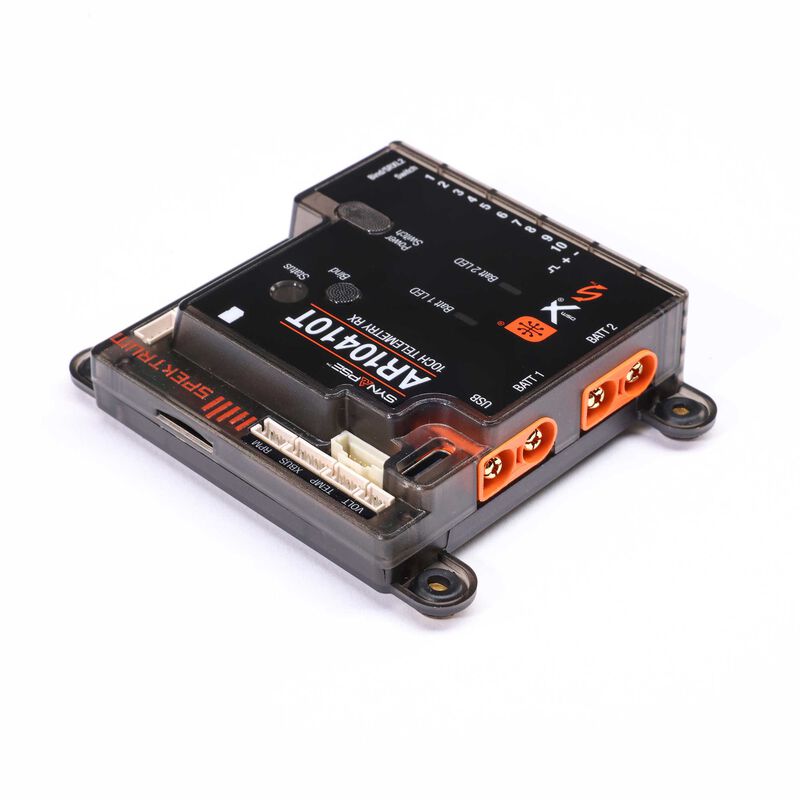

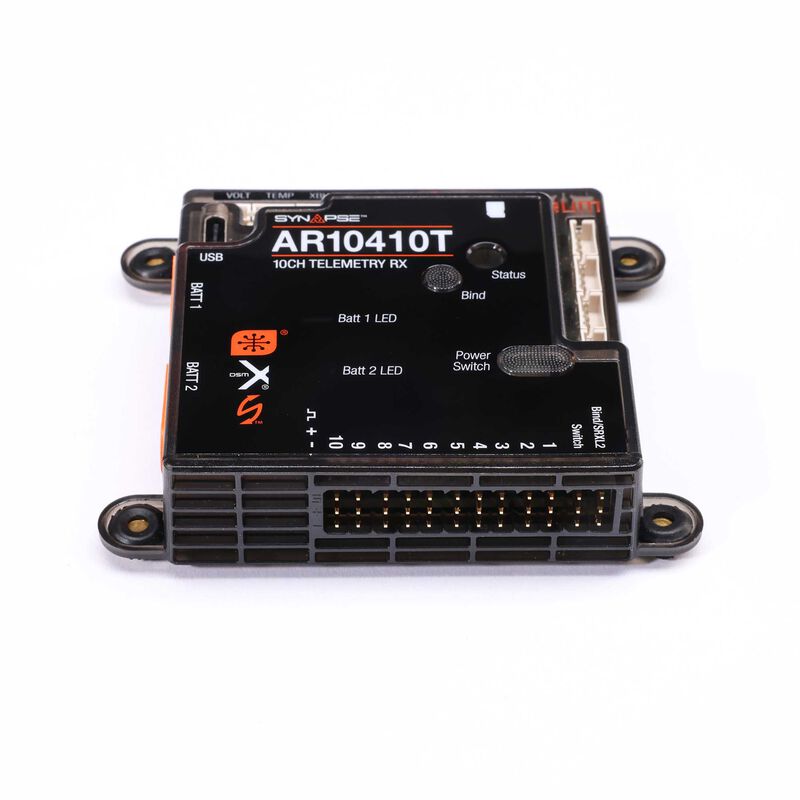

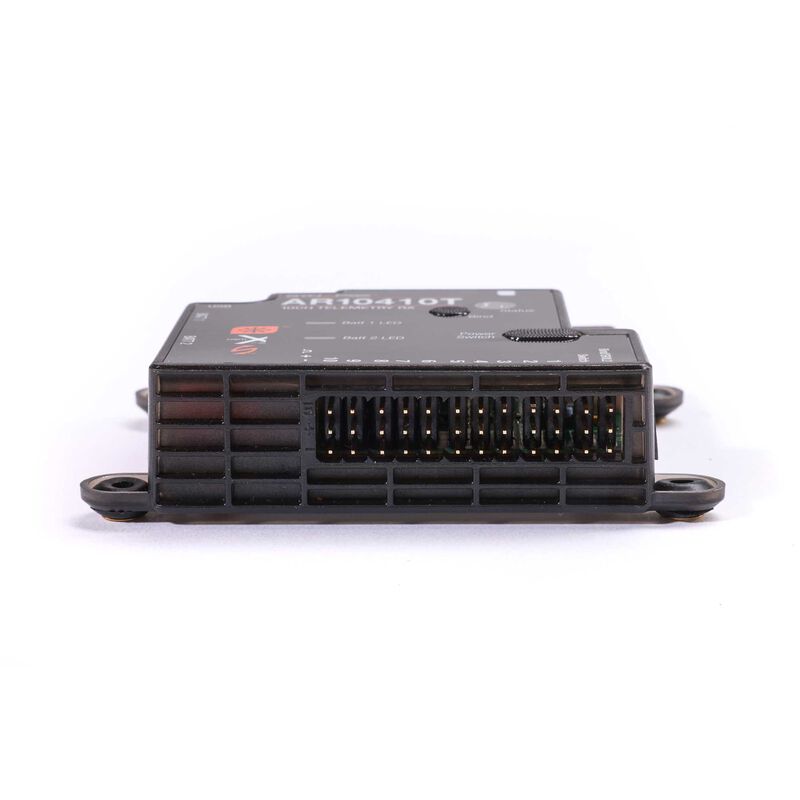

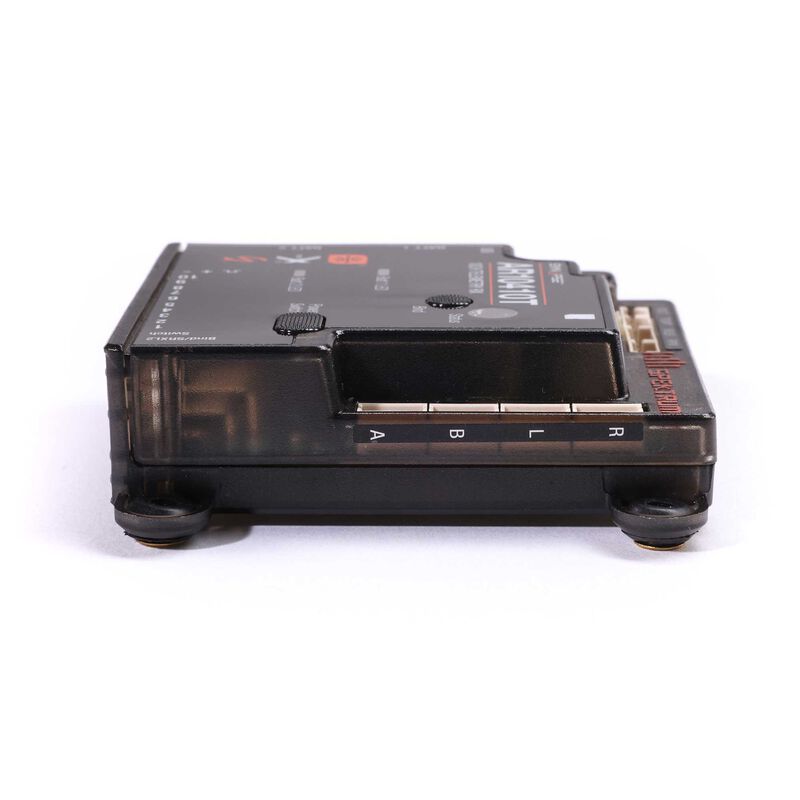

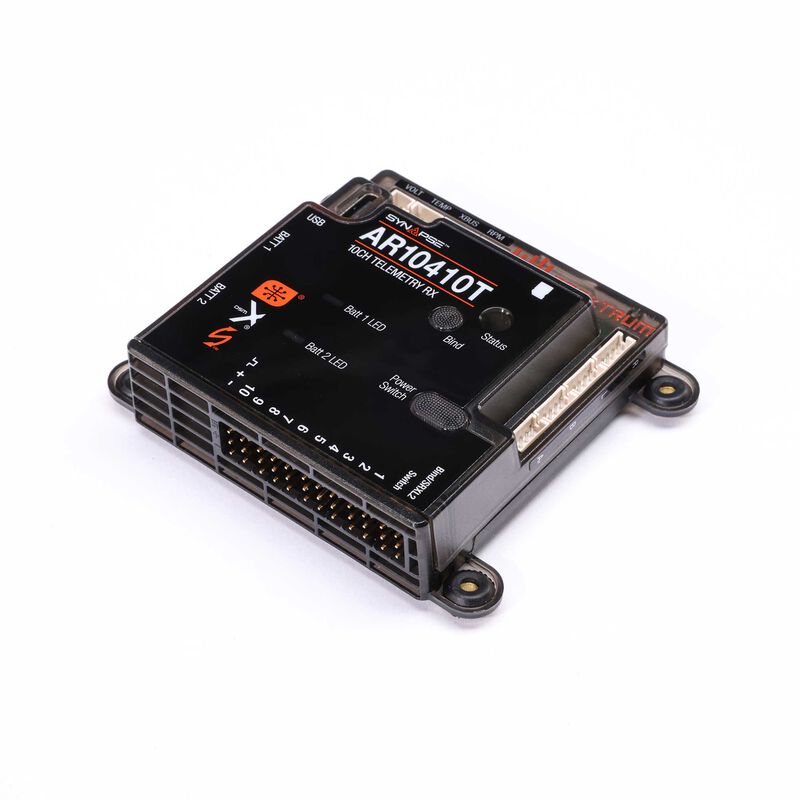

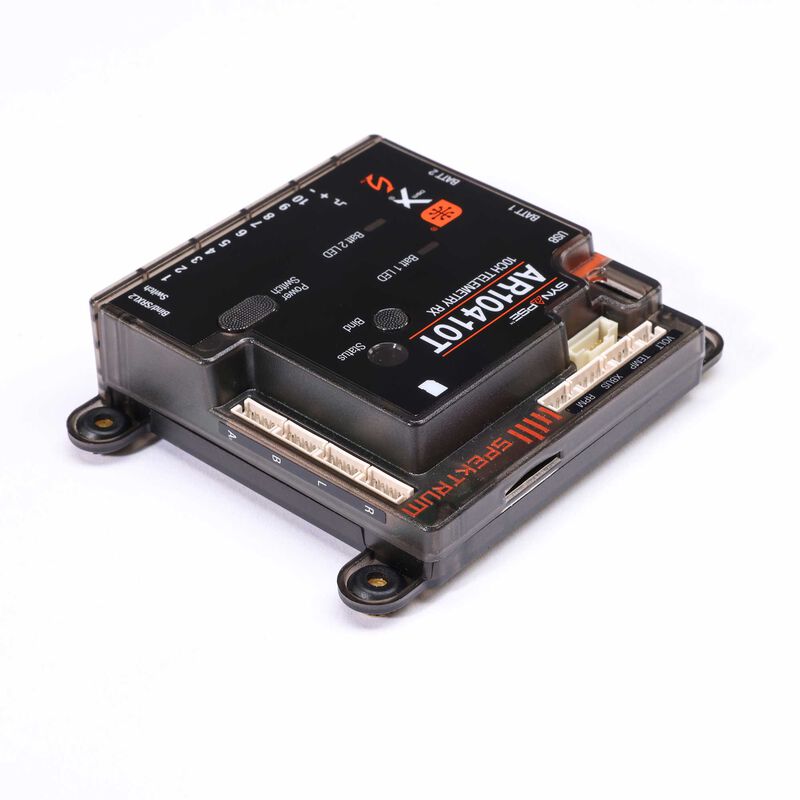

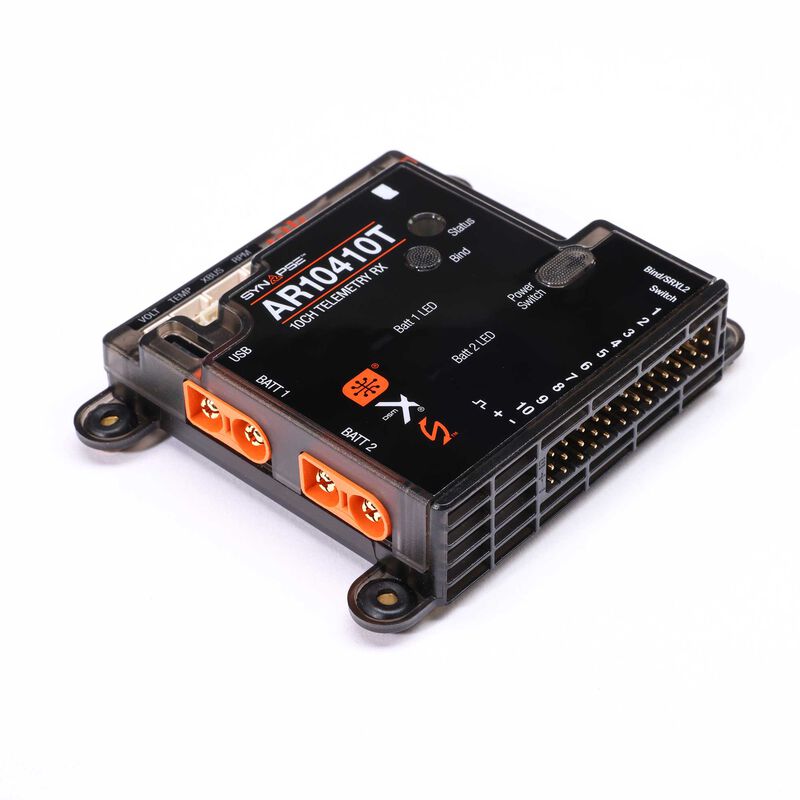

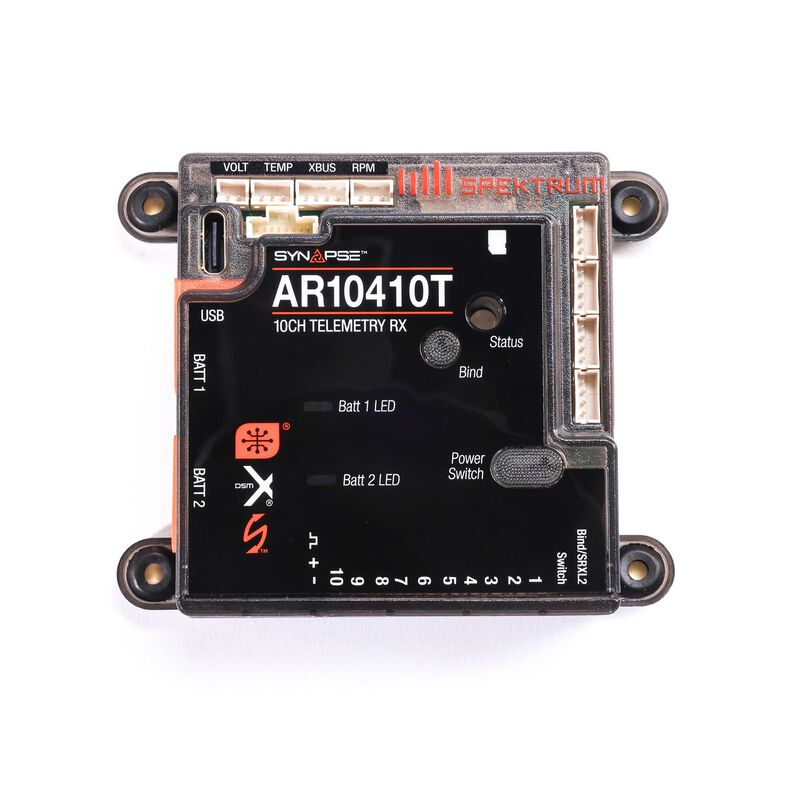

AR10410T 10 Channel PowerSafe Telemetry Receiver by Spektrum

• Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)

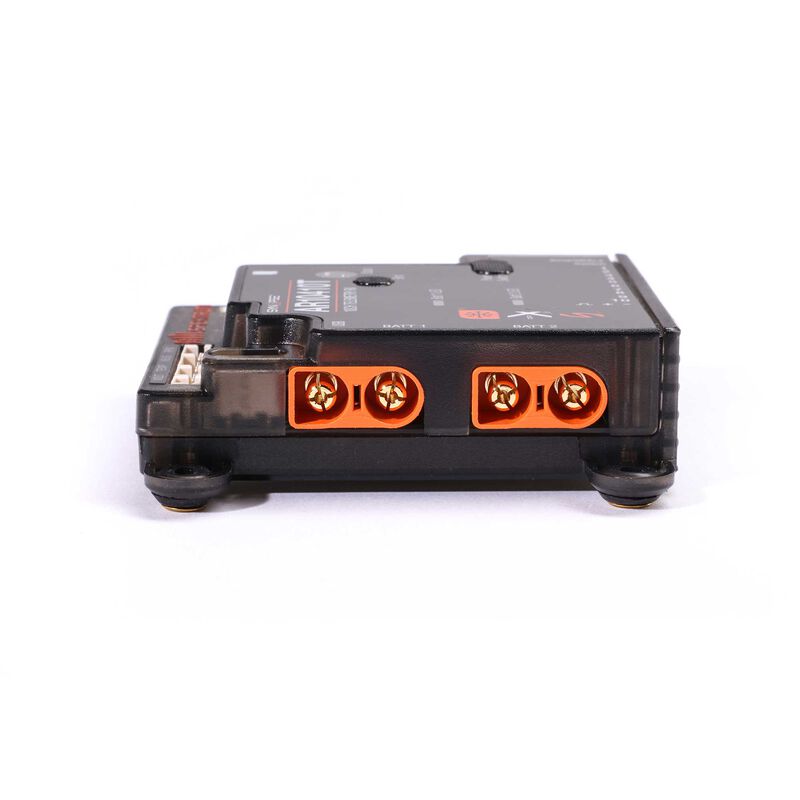

• Patented PowerSafe™ redundancy system with dual IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides helpful information during start up, warnings and mode indicators
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules

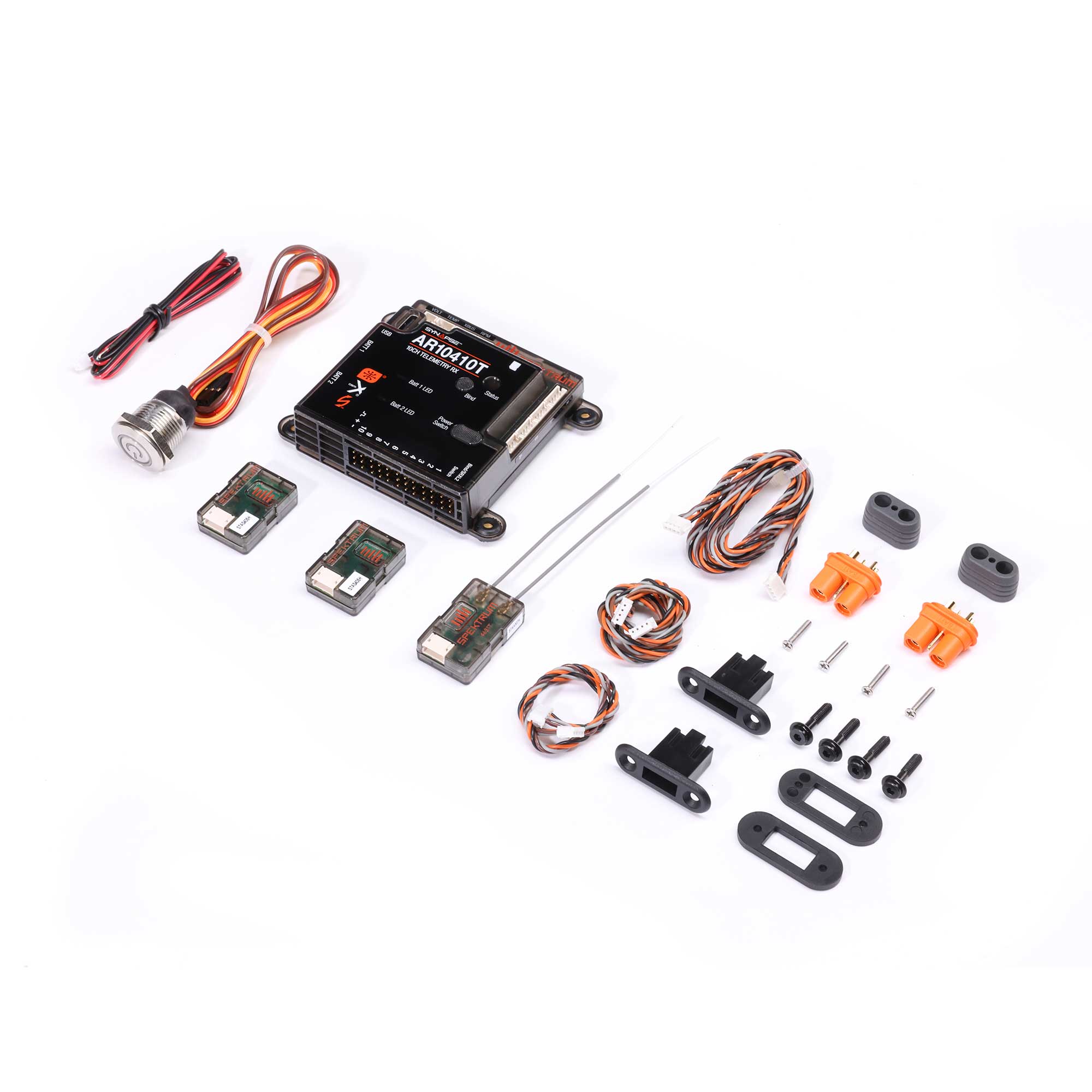

• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
• Capable of high-speed 11ms frame rates
• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

NEXT GENERATION IN FLIGHT STABILIZATION

The AR10410T is compatible with the Synapse AS3X+/SAFE Stabilization Module (not included), providing enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring Support

PATENTED POWERSAFE™ REDUNDANCY SYSTEM

The Spektrum™ AR10410T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with True dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

INNOVATIVE BATTERY CAPACITY MONITOR

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

SLEEP MODE

The AR10410T receiver features an advanced power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter. This exciting new feature allows you to power up your model's electronic system at the press of a button. No hatch removal or physical switches are needed, and it is extremely convenient for a day at the flying field.

INTEGRATED "BLACK BOX" TELEMETRY LOGGING

When a Micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

FORWARD PROGRAMMABLE

You can configure the AR10410T receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

INTEGRATED BAROMETER

The Spektrum AR10410T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

MICRO USB PORT

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

EXPANSIVE TELEMETRY OPTIONS

In addition to the integrated telemetry sensors, the AR10410T supports an expansive list of Spektrum telemetry sensors and third party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.

Product Specifications
