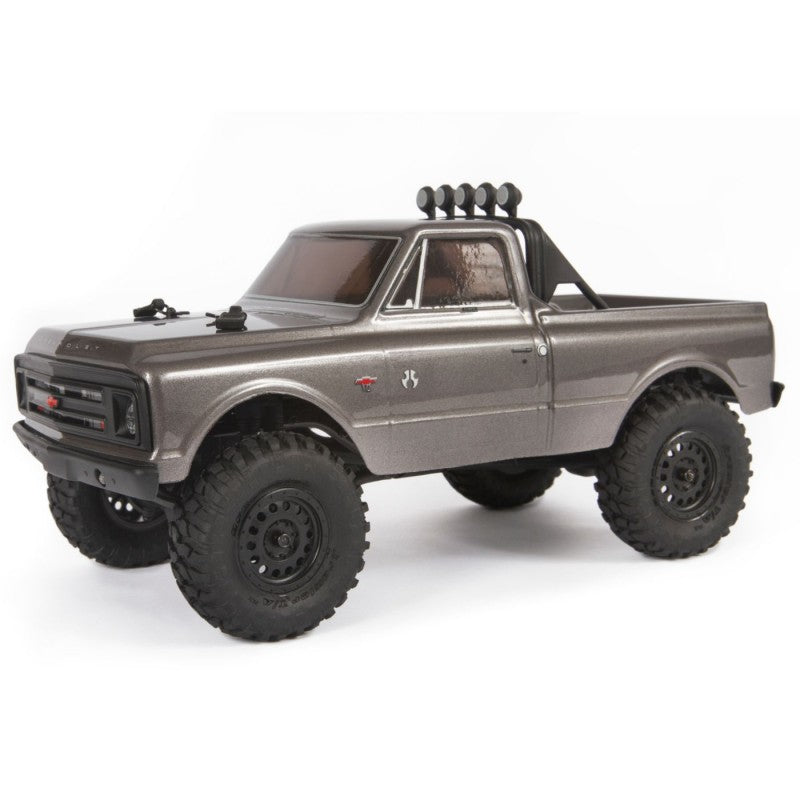

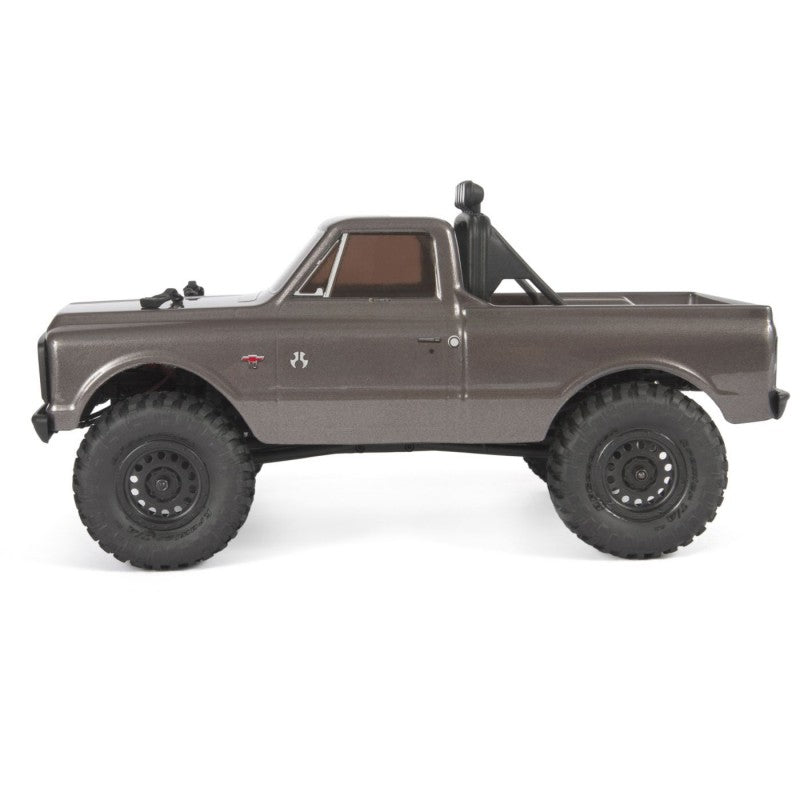

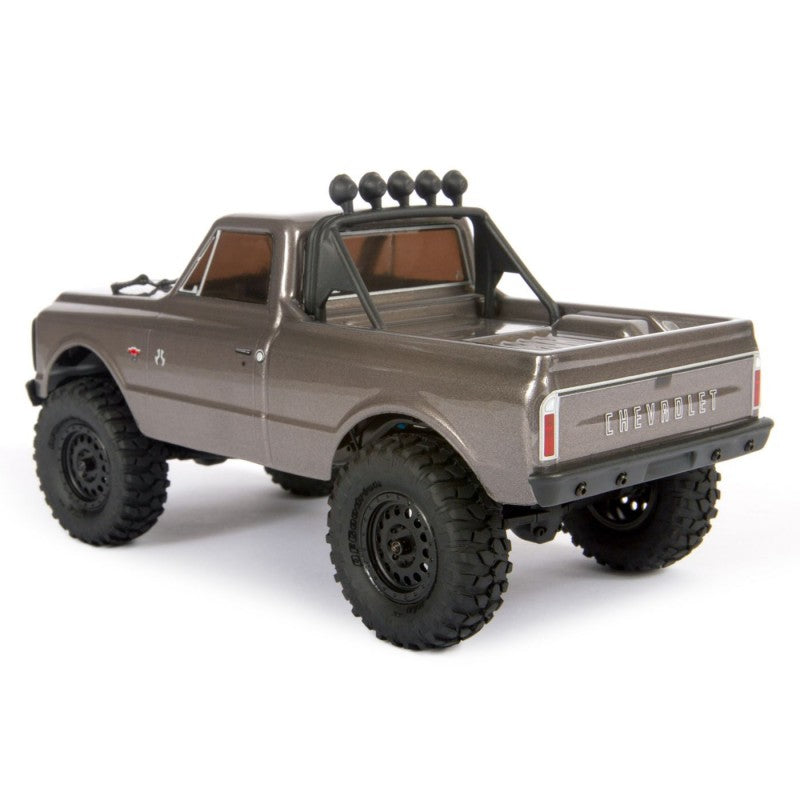

1/24 SCX24 1967 Chevrolet C10 4WD Truck Brushed RTR, Silver by Axial

• Axial® AS-1 servo with servo saver
• Dynamite® 7.4V 350mAh 30C LiPo battery
• Dynamite® 180-size, 88T Brushed Electric Motor

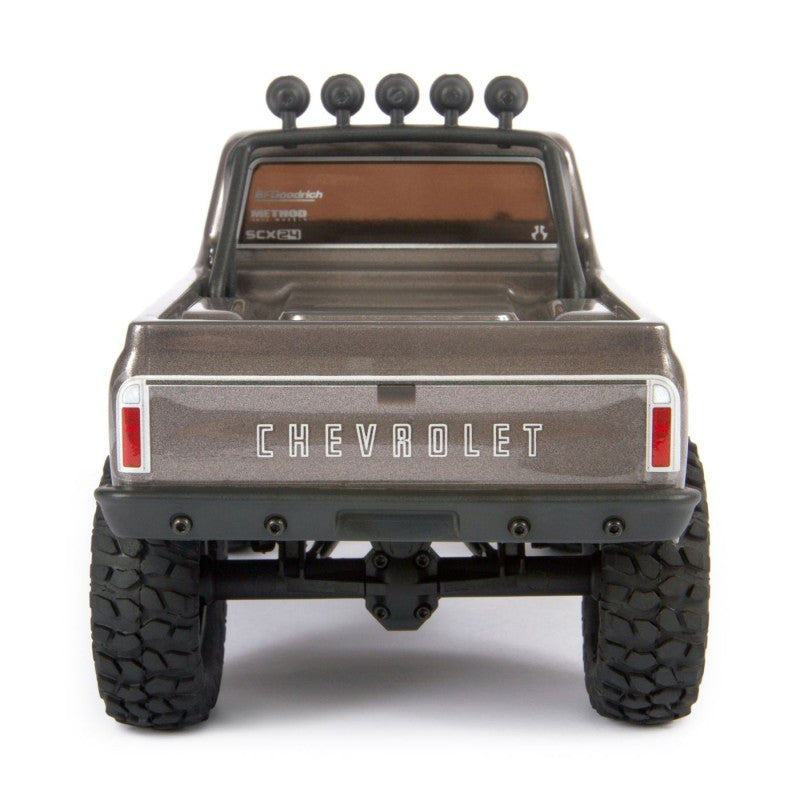

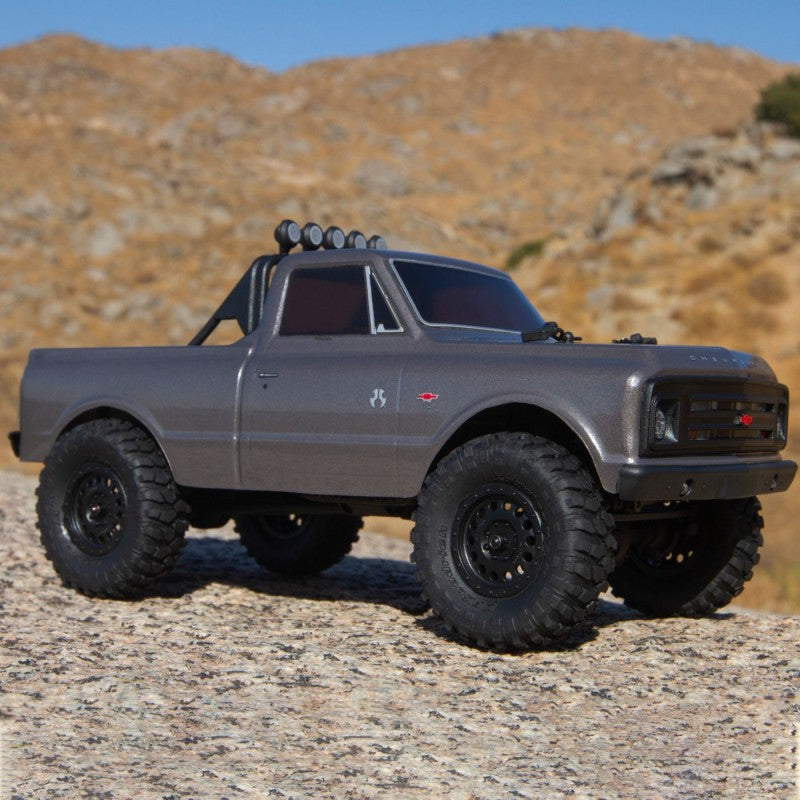

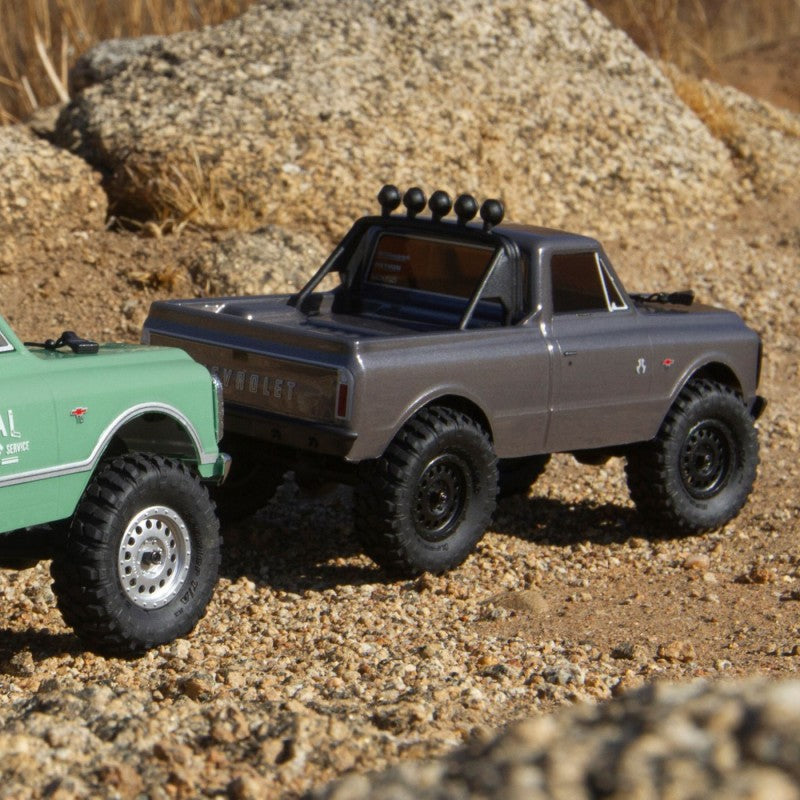

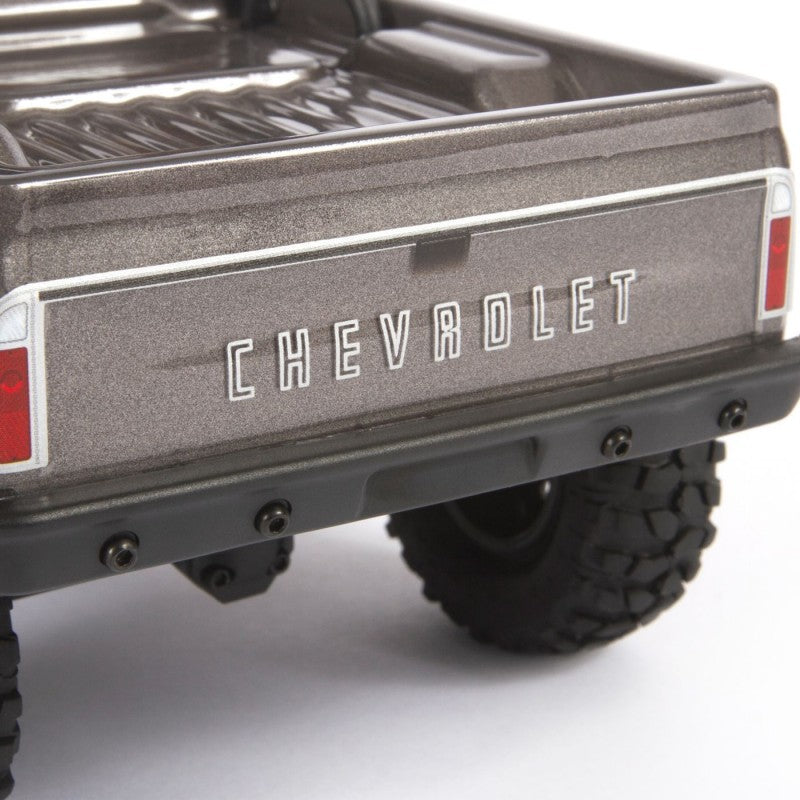

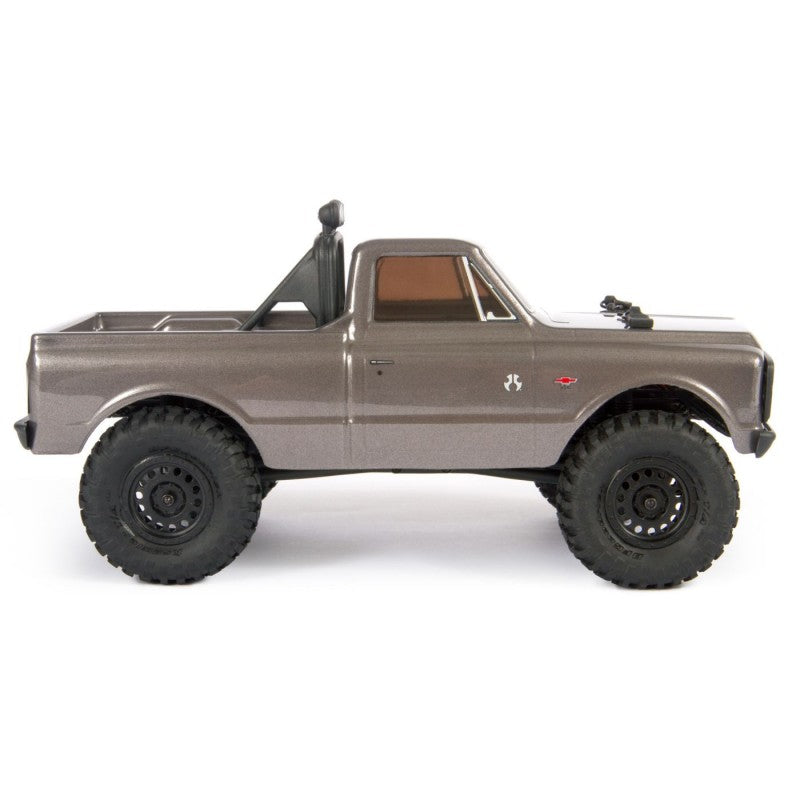

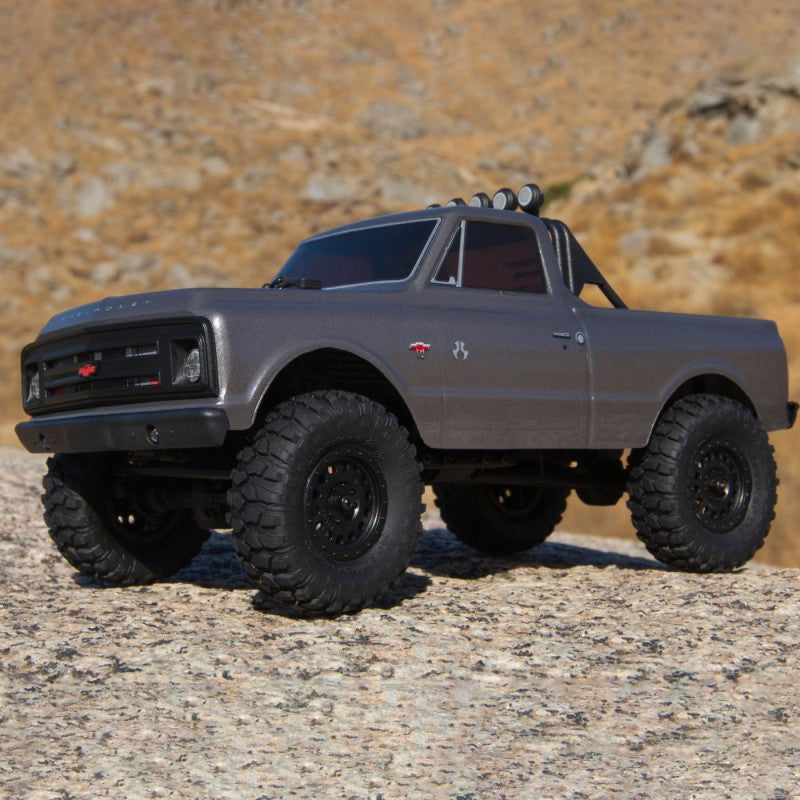

• Realistic 1967 Chevrolet C10 Truck body
• Two bright LEDs in front bumper for night driving
• True, full-time 4-wheel drive
• 3-Link front and 4-link rear suspension for optimal handling

• Worm drive gears for front and rear axles that add ground clearance
• Realistic steel frame rails for added strength
• Hinged body system for easy access to on-board components
• Full ball bearing drivetrain
• Licensed wheels modeled after 1:1 Method Wheels
• Licensed tires modeled after 1:1 BF Goodrich Tires

• Nothing — everything required is included in the box.

• (1) Axial® SCX24™ 1967 Chevrolet C10 Truck 1/24 Scale RTR
• (1) Axial® AX-4 2.4GHz Radio System
• (1) Axial® AS-1 Servo
• (1) Axial® AE-6 ESC/Receiver Combo
• (1) USB Charger (DYNC1062)
• (1) Dynamite® 88T 030 Brushed Electric Motor
• (1) Dynamite® 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
• (4) “AA” Batteries for the Transmitter
• (1) Product Manual

SMALL SCALE, BIG PERFORMANCE

You expect solid performance from Axial® and the SCX24™ 1967 Chevrolet C10 delivers, with engineering and equipment that pulls the greatest potential from its compact size. The included Dynamite™ 88T brushed electric motor supplies the torque you need to get up and over most obstacles. And despite the dimensions, it’s a pretty capable rock crawler, too! We've also included extra suspension links for adjusting your wheelbase length.

HINGED BODY SYSTEM

The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing two body clips and swinging the body up.

EVERYTHING IS INCLUDED!

The SCX24™ includes everything you need to get going. The product is fully assembled, and we've included batteries for the transmitter, and a LiPo battery pack and USB charger.

AX-4 2.4Ghz TRANSMITTER

The AX-4 transmitter features a throttle trim knob for low, medium, and high speed setting, a switch for steering servo reversing, steering dual rate, a switch for third channel applications (aux port on the ESC/Receiver), steering trim, battery level indicator, a bind button, and on/off switch. The AE-6 ESC/Receiver features a jumper for setting one of two brake options (brakes, or instant reverse), two LED light ports, an auxiliary port (channel 3), a channel 2 port, and a steering servo port.

FRONT AND REAR SOLID AXLES

The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.

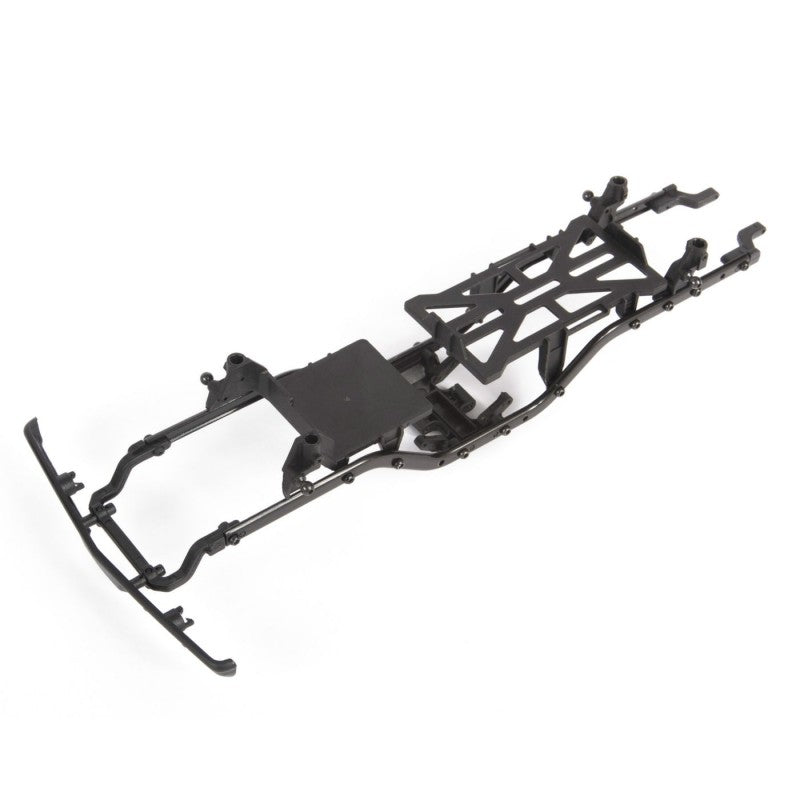

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.

DYNAMITE 88T BRUSHED MOTOR

The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It’s mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.

WORM GEARS

The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

COILOVER SHOCK ABSORBERS

Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you’ve known and expect from Axial. #AXIALPERFORMANCE

LED LIGHTS INCLUDED

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.

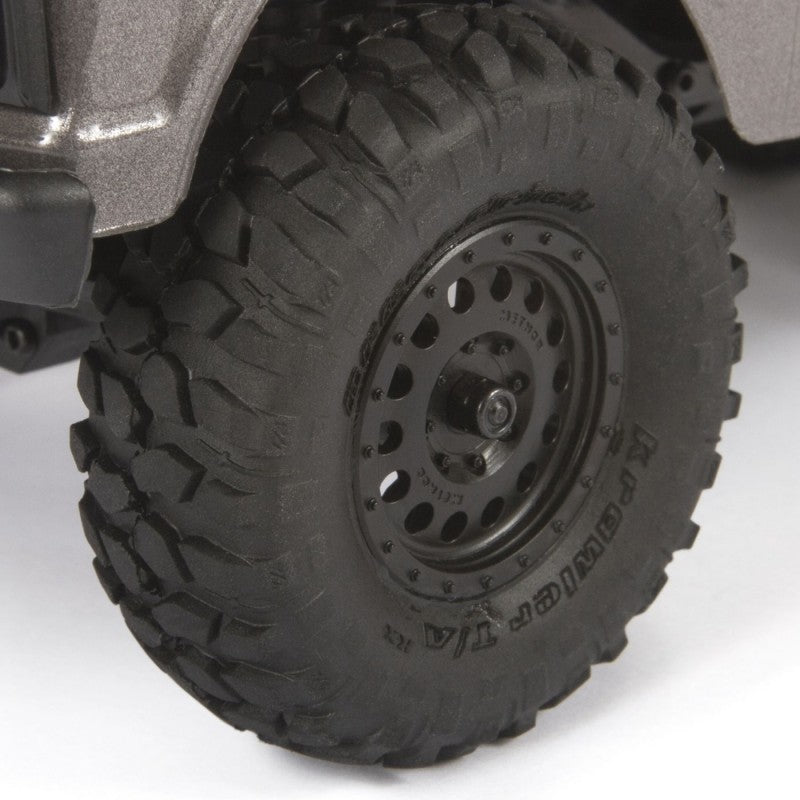

METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES

The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off road racing. Just like the Double Standard and NV, the Hole features a simulated beadlock ring by way of a strategically placed under-cut on the outer lip of the wheel. BFGoodrich Krawler™ T/A® KX tires are the winner of more rock-crawling championships than all other tires combined (Race spec tire, Years 2004 through 2008). The Axial version captures the same aggressive look you’ve been waiting for in a smaller 1/24 scale version.

FULL BALL BEARINGS

Just because the SCX24™ is smaller in size doesn’t mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.

AXIAL AS-1 SERVO

Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.

©2020 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, SCX24, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. General Motors Trademarks are used under license to Horizon Hobby, LLC. BFGoodrich and the BFGoodrich logo are trademarks of Michelin Lifestyle Limited, used under license. Method Race Wheels and associated logos are property of Method Race Wheels, used under license. All other trademarks, service marks and logos are property of their respective owners.

NOTE: Prototype shown. Some imagery may differ from the actual product.
