HTIRC ESC Programme Card for Dragon Fly & Hornet

AR390234 BLX185 Cooling Fan 35mm

ORCA USB Link make it easy and more convvenience to update your ESC through the internet to keep the ESC software up to date.

Output Burst Battery BEC Output Length Width Heighty Weight Continuous 12A 15(10s) 2-4Lipo/5-12NC 5V/3A 24mm 19mm 6.5mm 11g Functions & Features: ● Programmable features from Transmitter or *Program Card (sold separately) a. Brake on/off  b. Battery Type, NiMh/Lipo c. Direction of rotation d. Soft start, enable/disable  e. LVC, reduce power/cutoff  f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees g. PWM Frequency, 8kHz, 16kHz h. Governor Mode (Heli) on/off i. *Cut Off Type, Reduce power/cutoff j. *Acceleration, Low, Normal, High k. *Brake, Off, 20%, 50%, 100% l. *Start Power, Hard/Soft m. *PWM Frequency, 8kHz, 16kHz n. *Battey Type, NiMh/LiPo o. *Direction of rotation p. *LVC, Low 3.1V, Normal 3.2V q. *Governor Mode (Heli) on/off r. *Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25   ● Over-heat protection: Power will auto reduce when the temperature reaches 120℃. ● Elaborate circuit design with strong anti-interference features. ● Safety functions; 1. Abnormal input voltage protection. 2. Low battery voltage protection. ...

ORCA Super Capacitor

Output Burst Battery BEC Output Length Width Heighty Weight Continuous 20A 25(10s) 2-4Lipo/5-12NC 5V/3A 30mm 24mm 8.5mm 18g Functions & Features: ● Programmable features from Transmitter or *Program Card (sold separately) a. Brake on/off  b. Battery Type, NiMh/Lipo c. Direction of rotation d. Soft start, enable/disable  e. LVC, reduce power/cutoff  f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees g. PWM Frequency, 8kHz, 16kHz h. Governor Mode (Heli) on/off i. *Cut Off Type, Reduce power/cutoff j. *Acceleration, Low, Normal, High k. *Brake, Off, 20%, 50%, 100% l. *Start Power, Hard/Soft m. *PWM Frequency, 8kHz, 16kHz n. *Battey Type, NiMh/LiPo o. *Direction of rotation p. *LVC, Low 3.1V, Normal 3.2V q. *Governor Mode (Heli) on/off r. *Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25   ● Over-heat protection: Power will auto reduce when the temperature reaches 120℃. ● Elaborate circuit design with strong anti-interference features. ● Safety functions; 1. Abnormal input voltage protection. 2. Low battery voltage protection. ...

#D-20A. Dragonfly 20A. Burst 20A/25A 2-4LiPo 5-12NC, 30*24*8.5mm, 21g   Functions & Features: ● Programmable features from Transmitter or *Program Card (sold separately) a. Brake on/off  b. Battery Type, NiMh/Lipo c. Direction of rotation d. Soft start, enable/disable  e. LVC, reduce power/cutoff  f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees g. PWM Frequency, 8kHz, 16kHz h. Governor Mode (Heli) on/off i. *Cut Off Type, Reduce power/cutoff j. *Acceleration, Low, Normal, High k. *Brake, Off, 20%, 50%, 100% l. *Start Power, Hard/Soft m. *PWM Frequency, 8kHz, 16kHz n. *Battey Type, NiMh/LiPo o. *Direction of rotation p. *LVC, Low 3.1V, Normal 3.2V q. *Governor Mode (Heli) on/off r. *Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25   ● Over-heat protection: Power will auto reduce when the temperature reaches 120℃. ● Elaborate circuit design with strong anti-interference features. ● Safety functions; 1. Abnormal input voltage protection. 2. Low battery voltage protection.  3. Over-heat  protection.  4. Throttle signals loss protection.

IC-15A ESC 15 Amps, Brake, BEC-A/C 6-10 cells.15A cont. - surge 20A 1.0A BEC

IC-30A ESC 30 Amps, Brake, BEC-A/C 6-10 cells. 30A cont. - surge 40A 1.0A BEC

Smart Technology — More connected for more confidence and control Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever...

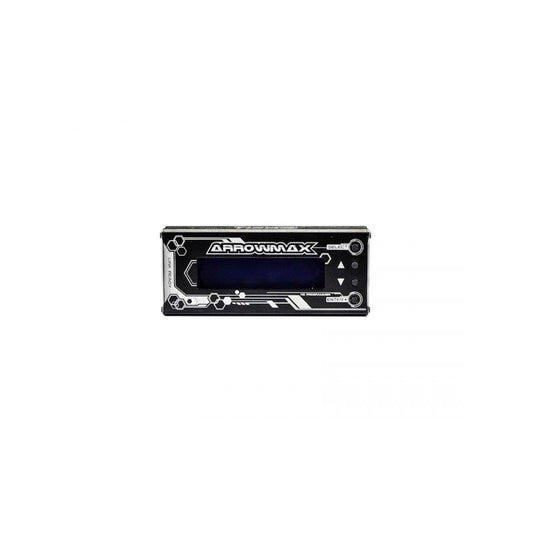

The Arrowmax Dash AI V2 Series Program Card is the tuning card option for all Dash AI Series Competition Brushless ESC to access and adjust the programmable parameters of the ESC without a PC.

Output Burst Battery BEC Output Length Width Heighty Weight Continuous 80A 100(10s) 2-6Lipo/5-12NC 5V/4A 60mm 30mm 14mm 56g Functions & Features: ● Programmable features from Transmitter or *Program Card (sold separately) a. Brake on/off  b. Battery Type, NiMh/Lipo c. Direction of rotation d. Soft start, enable/disable  e. LVC, reduce power/cutoff  f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees g. PWM Frequency, 8kHz, 16kHz h. Governor Mode (Heli) on/off i. *Cut Off Type, Reduce power/cutoff j. *Acceleration, Low, Normal, High k. *Brake, Off, 20%, 50%, 100% l. *Start Power, Hard/Soft m. *PWM Frequency, 8kHz, 16kHz n. *Battey Type, NiMh/LiPo o. *Direction of rotation p. *LVC, Low 3.1V, Normal 3.2V q. *Governor Mode (Heli) on/off r. *Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25   ● Over-heat protection: Power will auto reduce when the temperature reaches 120℃. ● Elaborate circuit design with strong anti-interference features. ● Safety functions; 1. Abnormal input voltage protection. 2. Low battery voltage protection. ...

Product Description Key Features Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds) 3.5A continuous current, 5V Switch-Mode BEC Circuit Stronger BEC for support of most 3-axis stabilization systems Drive up to 7 analog or 6...

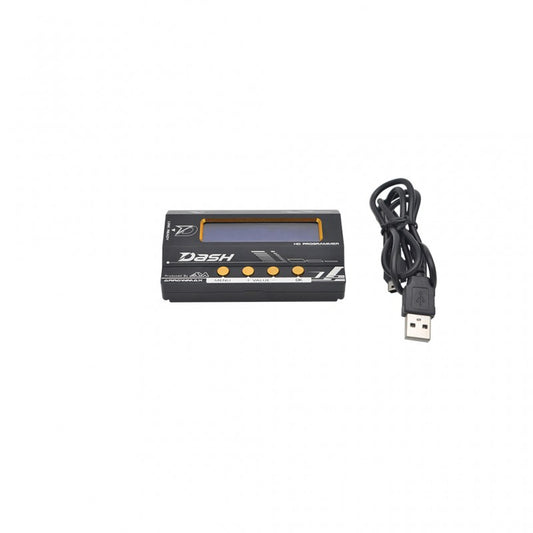

DASH AI MAX HD Program Card V2

Smart Technology — More connected for more confidence and control Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever...

#H-100A Hornet 100A. Aircraft ESC, Burst 120/100A 2-6Lipo 5-18NC 5v/6A BEC 73g 62x35x12mm XT90 Battery plugs fitted 4mm Female bullet motor plugs fitted

Smart Technology — More connected for more confidence and control Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever...

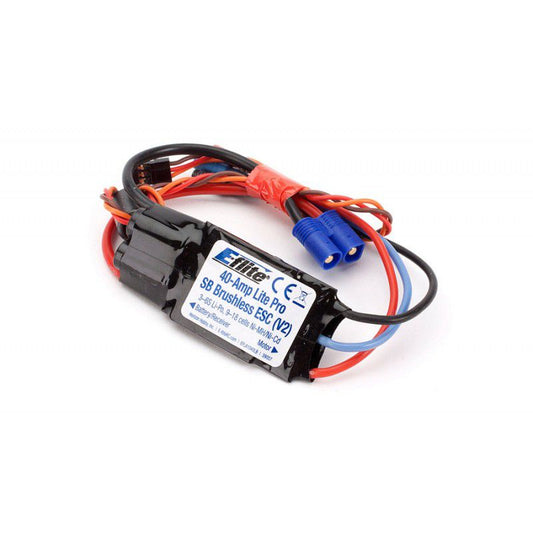

40-Amp Pro Switch-Mode BEC Brushless ESC (V2) Key Features Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds) 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required) Stronger BEC for support of most...

Product Description Key Features Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds) 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required) Stronger BEC for support of most 3-axis stabilization systems Drive up...

Auto Cutoff: Yes BEC: Yes BEC Continous Current: 5A BEC Maximum Burst Current: 10A BEC Type: Switching BEC Voltage: 6V Battery Input Lead: 12 AWG Brakes: Yes Forward: Yes Full On Resistance: .0005 ohms Input Connector Types: EC5 x2 Input Voltage: 2-6S LiPo, 6-18...
