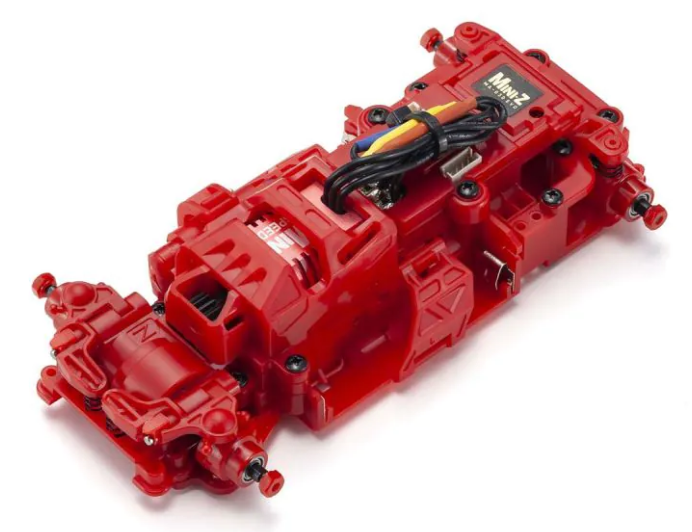

Kyosho Chassis set: MA030EVO Red

Introducing the MA-030EVO Chassis Set Red Limited edition!

The MA-030EVO Red Limited equips with special red color parts throughout the chassis! The MINI-Z was originally designed with an integrated receiver, servo and speed controller, however on the MR-030EVO the receiver was designed to be purchased and installed as a separate unit to allow the model to be used with other makes of transmitter such as KYOSHO (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO PROPO (EX-2/EX-RR/EX-NEXT), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). In addition, the MA-030EVO is installed with a high spec 5-stage gear type servo. Also, a special CPU for servo control improves the control speed of positioning feedback and the updated control program delivers the best steering feel ever through improved responsiveness and linear response to driver control. The one-piece heatsink and aluminum case on the KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless motor keeps it cool for optimal performance. The I.C.S. manager allows precision setting adjustments including a brushed motor compatibility function. Switch between drift and grip driving styles to experience the ultimate in AWD driving performance.

●MA-030 AWD chassis is based on MINI-Z FWD MA-03F chassis.
●Chassis set comes with separate ESC and receiver unit.
●Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500).
●I.C.S manager enables precise setting control and use of either brushless or brushed motor.
●Independent CPU control with increased processing speed delivers even more precise control.
●Full ball bearing specifications reduces drive loss.
●Includes rear double wishbone suspension.(Standard black color)
●Compatible with L（94mm） and LL（98mm） wheelbases. Only LL（98mm） can be used with rear double wishbone suspension set.
●Compatible with optional parts for the various MR-03F chassis models

＜Mountable body＞
・MAZDA DEMIO XD Touring (MZP442)
・Toyota PRIUS PHV (MZP443)
・RENAULT MEGANE R.S. (MZP441)
・Honda CIVIC Type R (MZP445)
・SUBARU WRX STI (MZP440)
・NISSAN GT-R R35 (MZP417)
・NISSAN SKYLINE GT-R NISMO R32 (MZP437)
・NISSAN SKYLINE GT-R R34(MZP427）
・MITSUBISHI LANCER EVOLUTION X (MZP439)
・Audi R8 LMS(MZP444)
You can change the following wheels
・McLaren 12C GT3(MZP226)
・Lamborghini Murcielago LP670-4SV (MZP215)
・McLaren F1 GTR (MZP237)　※DWS not possible
・Audi R8 LMS 2015/2016 (MZP234)
・Honda NSX(MZP233)
・McLaren P1 GTR (MZP235)　※DWS not possible
・McLaren F1 GTR (MZP232)　※DWS not possible

＜CHASSIS SET CONTENTS＞
●Factory-assembled chassis equipped with EVO main unit installed
●Pinion Gears (15T, 17T, 19T, 21T)
●DWS conversion parts *Front tread conversion parts
●Pinion gear removal tool
●Spare wheel nuts
●Wheel wrench
●Center shaft for L wheelbase
●Wide rear suspension arms for DWS
●swing shafts (4 x long)
●Spur gears (27T, 29T, 31T)

●8 x AAA batteries
●Auto Scale Collection (body, wheels and tires)
●Transmitter
●MINI-Z EVO receiver unit compatible with the transmitter used
