Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E
Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

ECO 2306C Brushless Motor (SKU: 51645) KV Rating: 1500 KV Turns: 11 Weight: 47g Dimensions (D x L): 28.8 x 24.9 mm Slots & Poles: 12N14P Internal Resistance (Ri): 78.0...
Vendor: Dual Sky
SKU: DSM-51645
Availability: 2 In Stock
Product Type: Radio Control
$63.31
$63.31
Please hurry! Only 2 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $63.31
Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

Dual Sky

Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

$63.31
Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E
Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

Dual Sky

Dual Sky ECO V2 2308C 1500kv 184w Brushless Outrunner Motor 47g 8x4e - 9.47E

$63.31
Shipping: Hamilton Warehouse
Description
Description
x

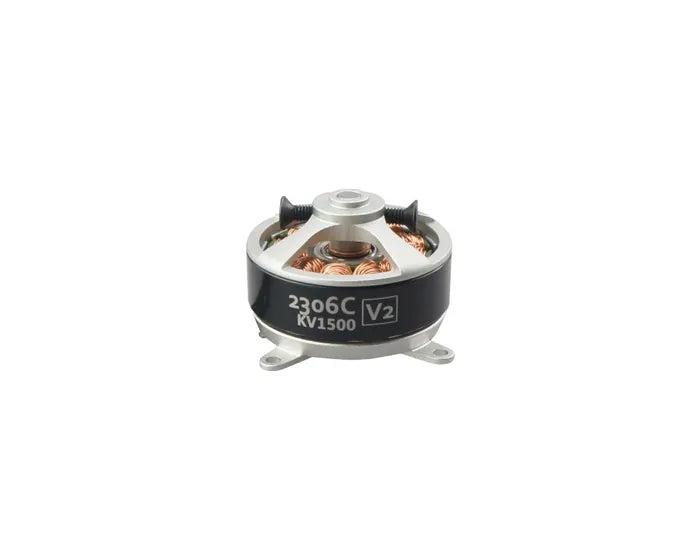

ECO 2306C Brushless Motor (SKU: 51645)

KV Rating:
1500 KV

Turns:
11

Weight:
47g

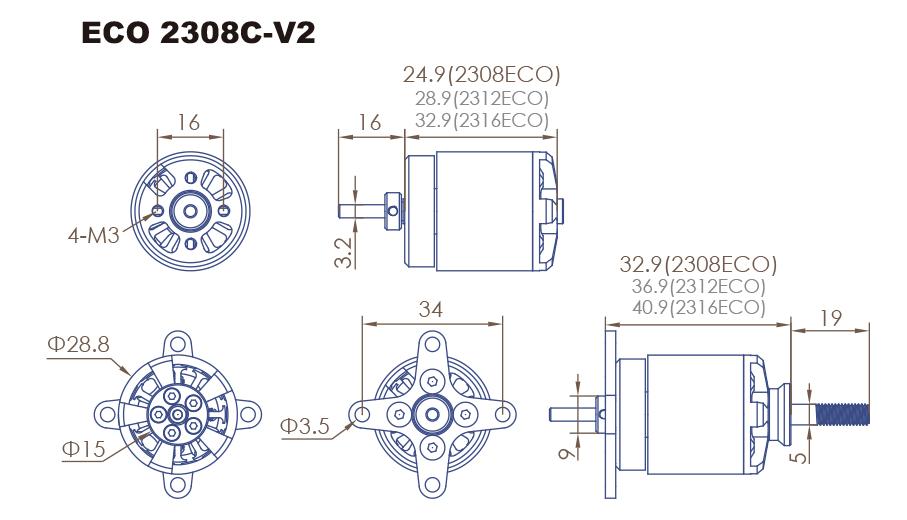

Dimensions (D x L):
28.8 x 24.9 mm

Slots & Poles:
12N14P

Internal Resistance (Ri):
78.0 mΩ

No Load Current @10V (Io):
0.7 A

Number of LiPo Cells:
2–3S

Max. Efficiency Current:
14 A

Max. Burst Current (15S):
23 A

Max. Power (15S):
184 W

Max. Torque:
0.176 N·m

Shaft Diameter:
3.175 mm

Mounting Hole Pitch:
16/16

Input Connectors:
GC3.5

Recommended ESC:
XC-12-LITE or XC1218BA

Recommended Propellers:

  • 2S: 10×5E, 11×5E

  • 3S: 8×4E, 9×4.7E

Application Class:
400-600g 300E class
