Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

Model: XM4255EA-10 SKU: 51861 KV: 620 Weight: 270g Dimensions (D × L): 43.2 × 49.9 mm Shaft Diameter: 6.0 mm Mounting Hole Spec: 4-M3, 25/25 mm Input Connectors: DB4 Stator...
Vendor: Dual Sky
SKU: DSM-51861
Availability: 2 In Stock
Product Type: Radio Control
$216.54
$216.54
Please hurry! Only 2 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $216.54
Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

Dual Sky

Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

$216.54
Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

Dual Sky

Dual Sky XM4255EA-10 620kv 1240w Brushless Outrunner Motor 270g 12x7 to 14x7E

$216.54
Shipping: Hamilton Warehouse
Description
Description
x

Model: XM4255EA-10

  • SKU: 51861

  • KV: 620

  • Weight: 270g

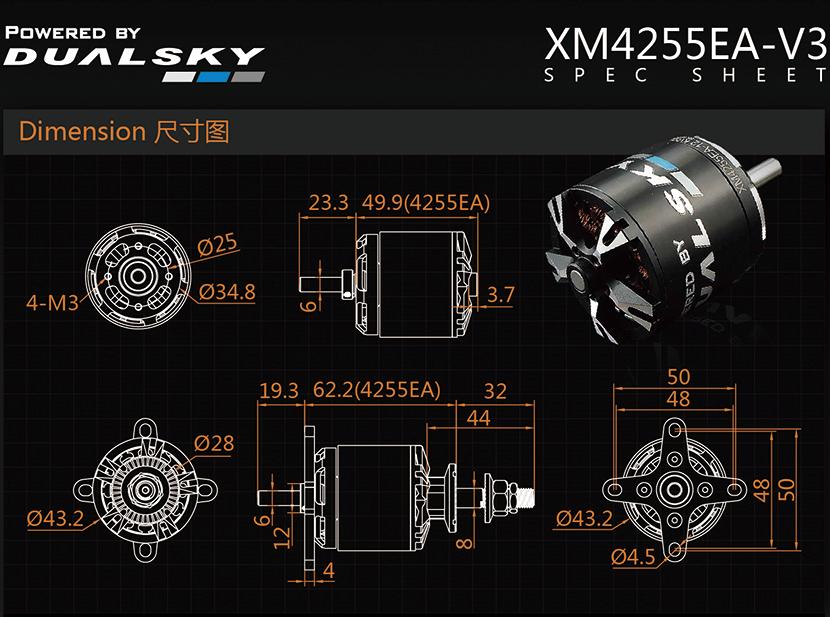

  • Dimensions (D × L): 43.2 × 49.9 mm

  • Shaft Diameter: 6.0 mm

  • Mounting Hole Spec: 4-M3, 25/25 mm

  • Input Connectors: DB4

  • Stator Dimensions: 3525

  • Slots & Poles: 12N14P

  • Resistance (Ri): 16 mΩ

  • No-load Current (Io@10V): 1.5A

  • Cells (LiPo): 5–6S

  • Efficiency Current: 31.0A

  • Burst Current (15S): 62A

  • Peak Power (15S): 1240W

  • Peak Torque: 1.19 N·m

  • Recommended ESC: SUMMIT 100

  • Recommended Propeller:

    • 5S: 14×7E

    • 6S: 12×7E, 13×6E, 13×8E**

  • Application: 55E, 35–.55 2-stroke, up to .60 4-stroke



**Good throttle management is required
