Turnigy Trackstar 540-20T Brushed Motor & 60A ESC Combo for 1/10th Crawler

The Turnigy Trackstar motor combo's have been extremely popular in the car, buggy and truck world for a long time, now they have introduced an extremely powerful brushed system for 1/10th scale crawlers. The Turnigy TrackStar Crawler series offers top performance and excellent value in an easy to use combo package. With this system, the 540 brushed motor and ESC are matched for best performance which saves you the hassle of choosing separate components yourself. The combo's are plug-n-go with motor connectors and an XT60 plug already fitted, just install a pinion gear and your ready to run!

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has low internal resistance, excellent heat dissipation and multiple protection features (see features below). It can be easily programmed with the optional pocket sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force and 3 Start Modes.

Features:
• Specially designed for 1/10th scale crawlers
• Excellent linear throttle response and driving feel
• Programmable with the Turnigy LED program card
• Low internal resistance and excellent heat dissipation
• Multiple protection features: Low voltage cut-off protection for Lithium and Nimh batteries, over-heat protection, throttle signal loss protection

Specs (ESC):
Continuous Current: 60A
Burst Current: 320A
Resistance: 0.0014ohm
Battery: 2~3cells Lipo, 4~9cells Nimh
BEC output: 7.4V/2A (switch mode)
Motor type: Brushed
Running mode: Forward/reverse
Dimension: 32 x 37 x 18mm

Specs (Motor):
Model: 540/S Slot
No of Turns: 20
Voltage: 7.4V
No Load Current: 0.8~1.12A
Peak Current: 37~52A
No Load RPM: 11700
Torque: 2000g.cm
Rotation: CCW
Shaft Diameter: 3.175mm
Weight: 165g

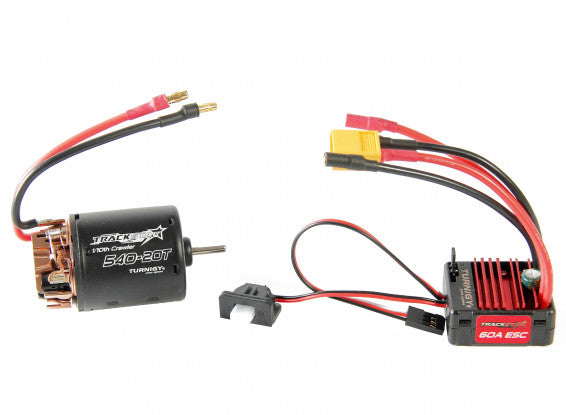

Includes:
60A Trackstar Crawler ESC
540-20T Trackstar Brushed Motor
